005516

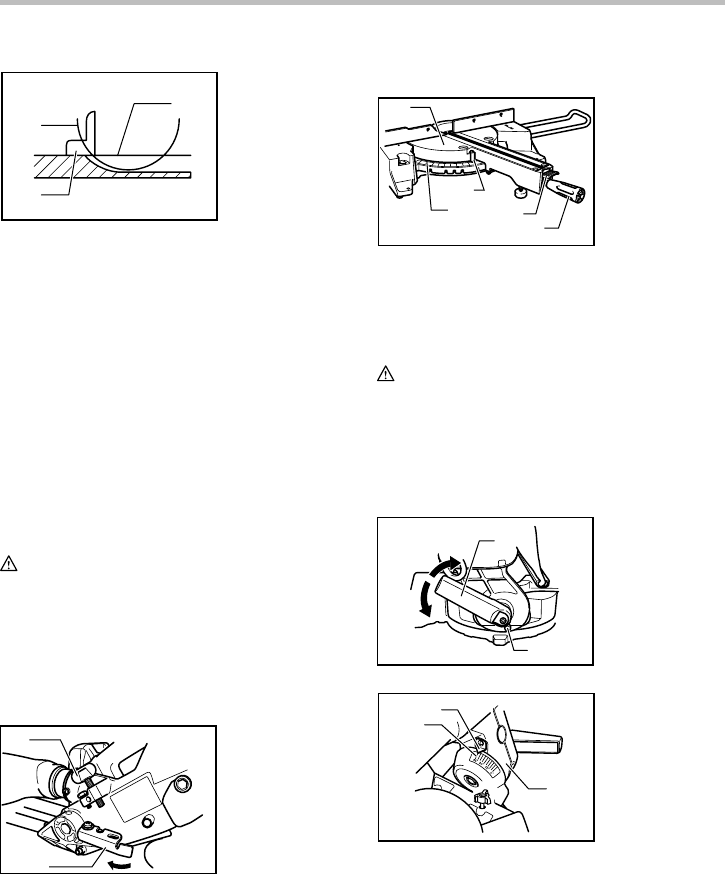

This tool is factory adjusted to provide the maximum
cutting capacity for a 190 mm (7-1/2") saw blade.
Remove the battery cartridge before any adjustment is
attempted. When installing a new blade, always check
the lower limit position of the blade and if necessary,
adjust it as follows:
First, remove the battery cartridge. Push the carriage
toward the guide fence fully and lower the handle
completely. Use the socket wrench to turn the adjusting
bolt until the periphery of the blade extends slightly below
the top surface of the turn base at the point where the
front face of the guide fence meets the top surface of the
turn base.
With the battery cartridge removed, rotate the blade by
hand while holding the handle all the way down to be
sure that the blade does not contact any part of the lower
base. Re-adjust slightly, if necessary.
WARNING:
• After installing a new blade and with the battery
cartridge removed, always be sure that the
blade does not contact any part of the lower
base when the handle is lowered completely. If
a blade makes contact with the base it may cause
kickback and result in serious personal injury.
Stopper arm
1
2
011241
The lower limit position of the blade can be easily
adjusted with the stopper arm. To adjust it, move the
stopper arm in the direction of the arrow as shown in the
figure. Adjust the adjusting screw so that the blade stops
at the desired position when lowering the handle fully.
Adjusting the miter angle
1
2
3
4
5
011242
Loosen the grip by turning counterclockwise. Turn the
turn base while pressing down the lock lever. When you
have moved the grip to the position where the pointer
points to the desired angle on the miter scale, securely
tighten the grip clockwise.
CAUTION:
• After changing the miter angle, always secure the
turn base by tightening the grip firmly.
NOTICE:
• When turning the turn base, be sure to raise the
handle fully.
Adjusting the bevel angle
1
2
003930
1
2
3
011301
To adjust the bevel angle, loosen the lever at the rear of
the tool counterclockwise.
Push the handle to the left to tilt the saw blade until the
pointer points to the desired angle on the bevel scale.
Then tighten the lever clockwise firmly to secure the
arm.
To tilt the blade to the right, push the release button at the
rear of the tool while tilting the blade slightly to the left
after loosening the lever. With the release button
depressed, tilt the saw blade to the right.
1. Pointer
2. Bevel scale
3. Arm
1. Lever
2. Release button
1. Turn base
2. Pointer
3. Miter scale
4. Lock lever
5. Grip
1. Adjusting screw
2. Stopper arm
1. Top surface of
turn table
2. Periphery of
blade
3. Guide fence
