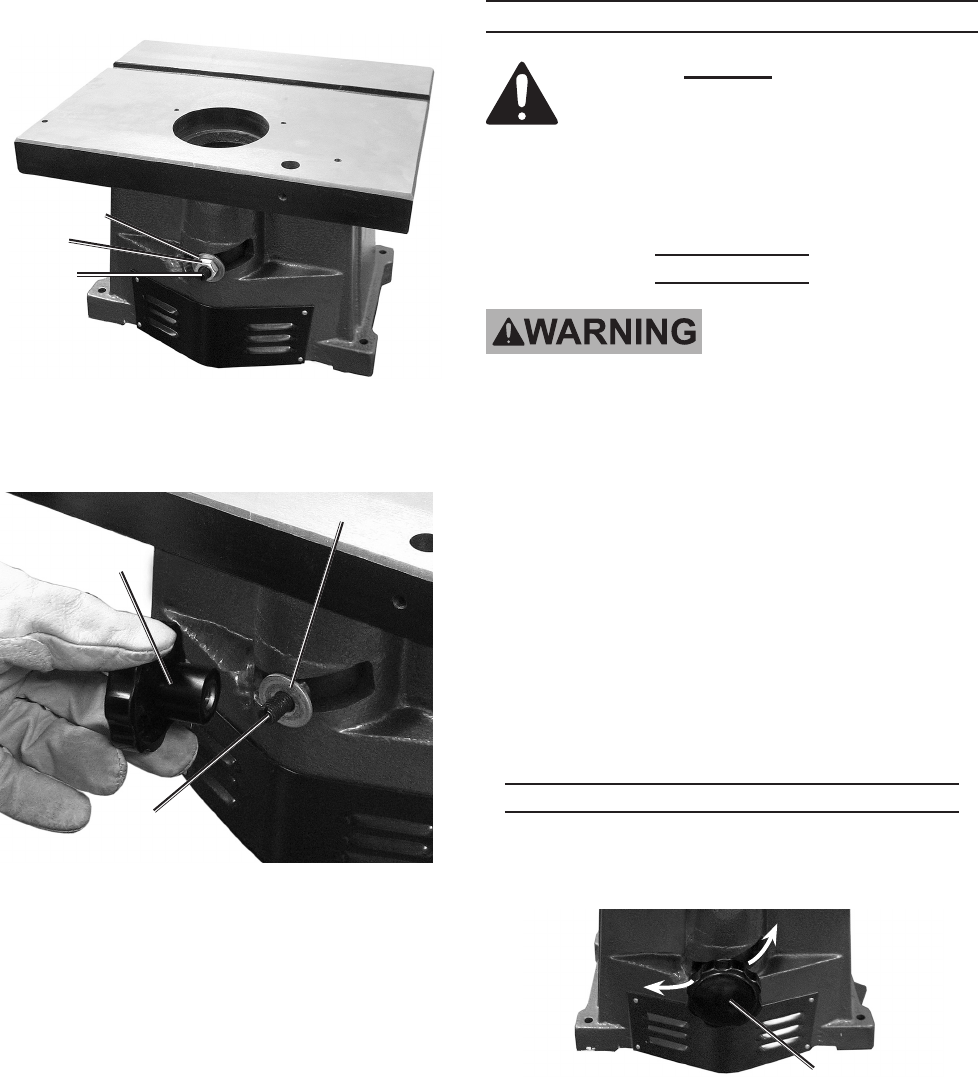

To install the Height Knob:
Figure 4
Nut (56)
Stud (17)
Washer (18)
a. Unthread the Shipping Nut (56) from the
Stud counterclockwise and remove it
from the Stud.
Washer (18)
Figure 5
Height Knob
(16)
Stud (17)
b. Leave the Washer in place and thread
the Height Knob (16) onto the Stud
clockwise until it is secure.
OPERATING INSTRUCTIONS
Read the ENTIRE IMPORTANT
SAFETY INFORMATION
section at the beginning of this
manual including all text under
subheadings therein before set up
or use of this product.
Tool Set Up
TO PREVENT
SERIOUS INJURY
FROM ACCIDENTAL
OPERATION:
Turn the Power Switch of the tool
to its “OFF” position, pull out the
Switch Key (27b), and unplug the
tool from its electrical outlet
before performing any
inspection, maintenance, or
cleaning procedures.
TO PREVENT SERIOUS INJURY:
DO NOT OPERATE WITH ANY
GUARD DISABLED, DAMAGED,
OR REMOVED.
Adjusting the Main Spindle Height
The Main Spindle (43) can be adjust up
or down by 3/4”.
Figure 6
Height Knob
(16)
Raise
Main
Spindle
Lower
Main
Spindle
To adjust the height of the Main Spindle
(43) turn the Height Knob (16) counter
clockwise and slide the Knob to the left
to lower, or the right to raise, the height
of the Main Spindle. When it is the
desired height, tighten the Height Knob
clockwise until it is secure.
