MAINTENANCE AND
SERVICING
Proceduresnotspecically
explained in this manual must
beperformedonlybyaqualied
technician.
TO PREVENT
SERIOUS INJURY
FROM ACCIDENTAL
OPERATION:
Turn the Power Switch of the
Shaper/Router to its “OFF”
position and unplug the tool from
its electrical outlet before
performing any inspection,
maintenance, or cleaning
procedures.
TO PREVENT SERIOUS INJURY
FROM SHAPER/ROUTER
FAILURE:
Do not use damaged equipment.
If abnormal noise or vibration
occurs, have the problem
corrected before further use.
Cleaning, Maintenance, and
Lubrication
BEFORE EACH USE,1. inspect the
general condition of the tool. Check for
loose hardware, misalignment or binding
of moving parts, cracked or broken parts,
damaged electrical wiring, and any
other condition that may affect its safe
operation.
AFTER USE,2. wipe external surfaces of
the tool with a clean cloth.
3. WARNING! If the supply cord of
this power tool is damaged, it must be
replacedonlybyaqualiedservice
technician.

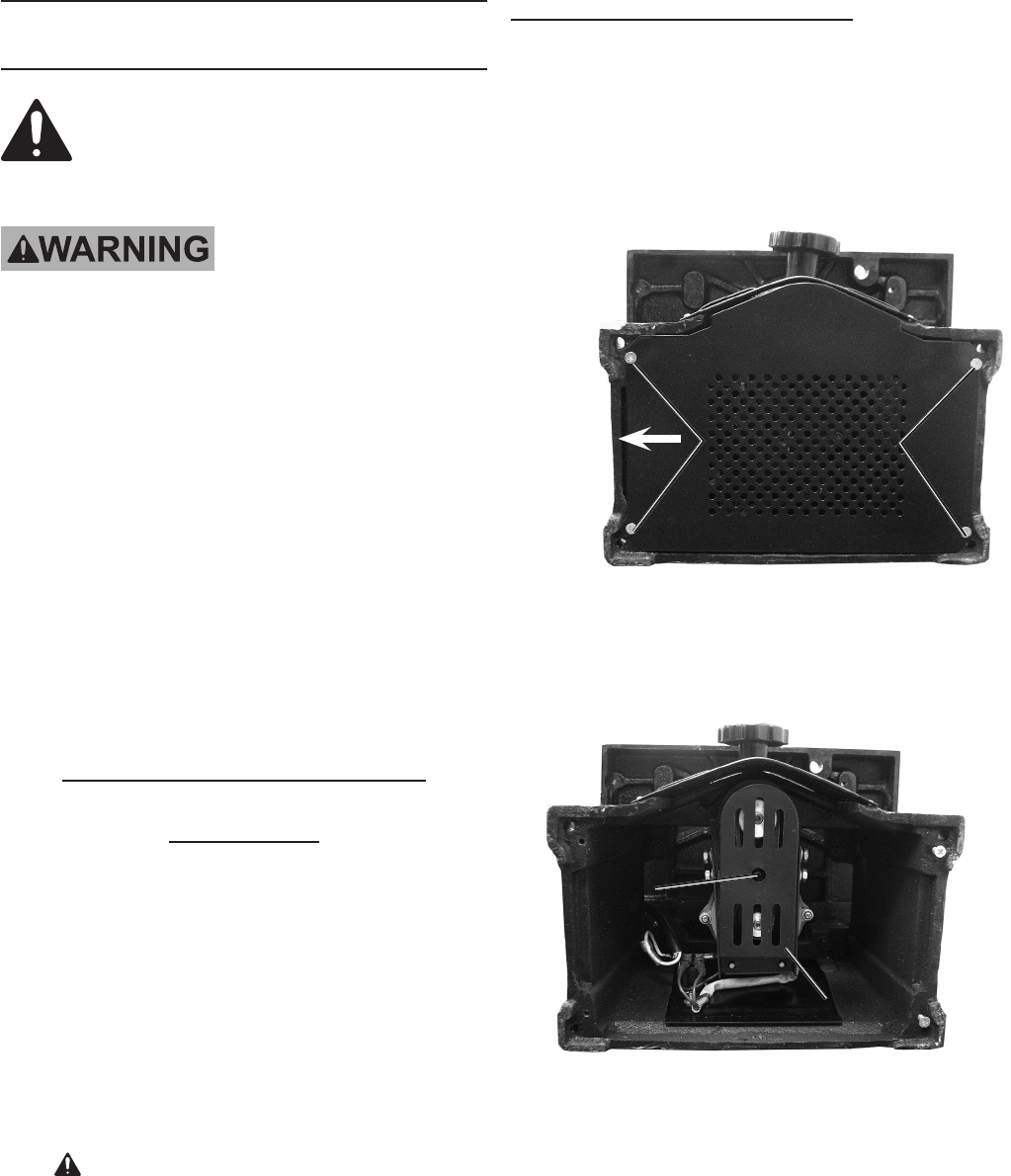

TIMING BELT REPLACEMENT:
Turn off machine, unplug and remove the 1.
key.
Remove guards and guides. Turn unit 2.
on it’s side or upside down on a suitable,
clean work surface.
Figure 26
Remove
Screws
(22)
Loosen
Screws
(22)
Slide
Bottom
Cover Plate
(39) off
3. Loosen and remove two of the four
Screws (22) on the Bottom Cover Plate
(39) and slide the Plate off of the unit.
Figure 27
Screw
(31)
Belt Guard (33)
4. Unthread the Screw (31) holding the Belt
Guard (33) in place and remove the Belt
Guard.
