Ring Guard
Always use the Shaper/Router with
the Ring Guard (11) in place. It is an
important safety feature which protects
against contact with the blade. Before
plugging in the machine, the Ring
Guard should be positioned about 1/4”
above the workpiece and then locked
into place. When you wish to make
adjustments or change cutters, you can
loosen the Knob (4) holding the Ring
Guard and rotate it out of the way.

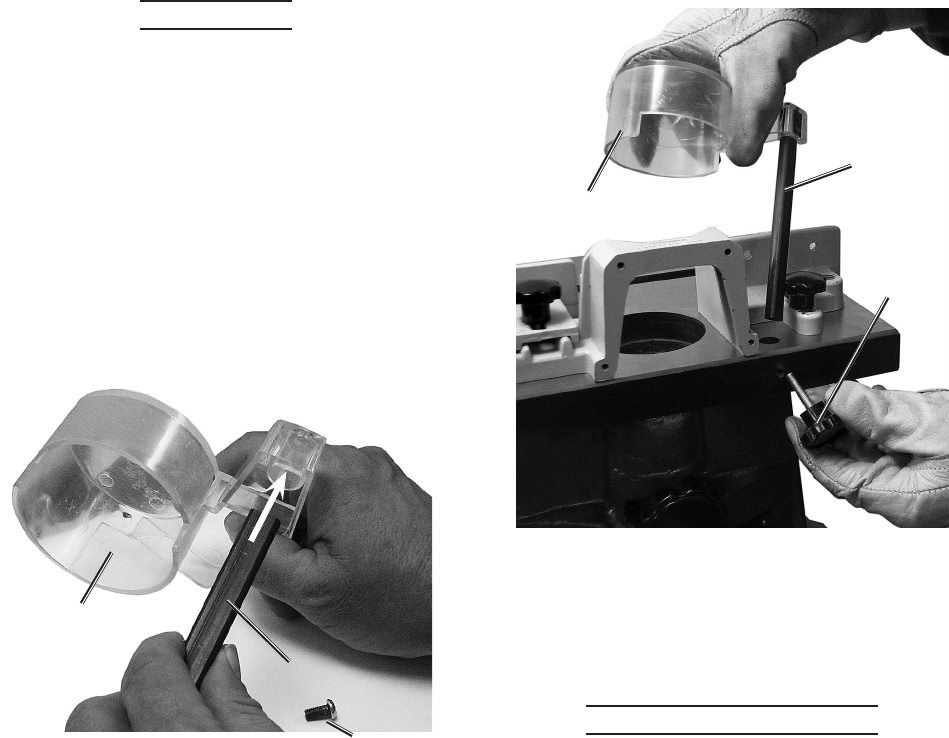

Figure 18
Ring Guard (11)
Post (12)
Bolt (10)
To assemble the Ring Guard, slide the
Post (12) into the slot on the Ring Guard
and secure in place with the Bolt (10).
Figure 19
Ring Guard (11)
Post (12)
Knob (4)
1. To install the Ring Guard, slide the Post
into the hole in the Table Top (7).
Secure in place with the Knob (4).2.
Chip Discharge Chute
The Chip Discharge Chute (9) and
Adapter (52) direct loose chips away
from the work area. The unit can be
set up with a bag or vacuum (both sold
separately) to gather loose chips from
the work area. The use if a vacuum to
aid in chip exhaust is recommended.
The machine’s discharge chute, with the
adapter included, will allow you to use a
1-1/2” hose. If discharge chute becomes
clogged, turn off power and unplug both
machines. Use a pencil or dowel to
dislodge chips. If your vacuum is not on,
remove hose before starting shaper.
