Page 12 For technical questions, please call 1-800-444-3353. SKU 32650

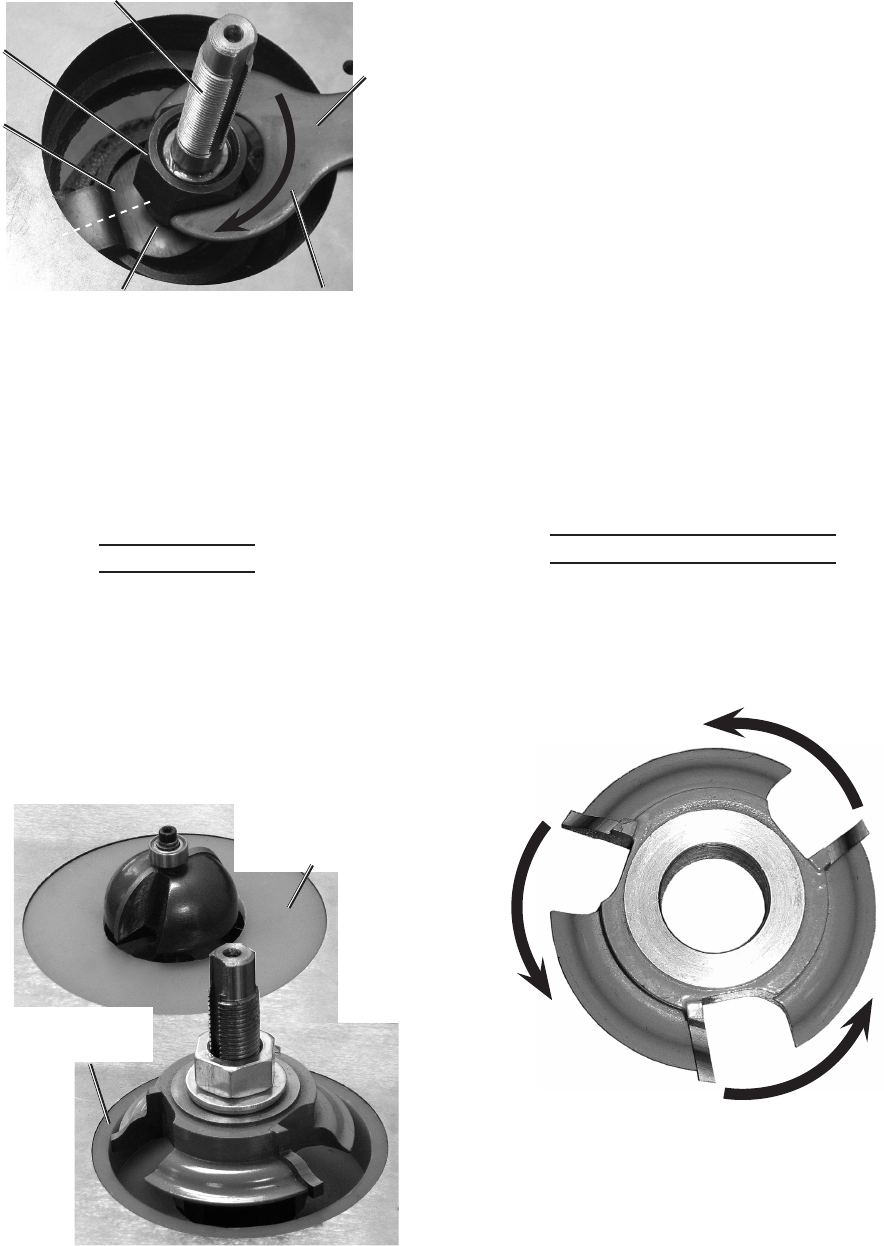

Figure 10
Double
Ended
Wrench
(55)
Main
Spindle
(43)
Shaper
Spindle
Nut (46)
Shaper Spindle (47)
Spindle
Wrench
(54)
a) Hold Main Spindle b) Turn Clockwise
3. Use the Double Ended Wrench (55)
and Spindle Wrench (54) to tighten the
Shaper Spindle (47) in place, turning the
Double Ended Wrench clockwise until
the Shaper Spindle is secure.
Table Insert
The Table Insert (8) is used to reduce
wood chips falling into the machine
which could cause ying debris. With
router bit use, it also covers any unused
portion of the bit below the surface of the
Table Top (7).
Figure 11
Table Insert (8)
ush with
Table Top (7)
Table Insert (8)
inverted
Always use the Table Insert (8) to 1.
prevent materials from falling into the
Base (25). Before installing a router bit
or a shaper cutter (both sold separately),
slide the Table Insert into the Table Top
hole until it is ush with the Table Top.
There are two ways to position it. If the
bit or shaper is entirely above the surface
of the table, install the Table Insert with
1-3/8” (smaller) hole facing up. If your
bit or shaper is below the surface of the
table, the Table Insert should be installed
with the larger hole facing up. Spin
the bit by hand before plugging in the
machine to make sure it will not come
into contact with the Table Insert during
operation
Installing Shaper Bits
Install the Shaper Spindle (47) if it is not 1.
already installed.
Insert the Table Insert (8).2.
Figure 12
3. Position the Cutter or cutters (sold
separately) so that the blades are facing
in a counter clockwise direction and slide
them onto the Shaper Spindle along with
any collars as needed for the desired
pattern.
