Epson Research and Development
Vancouver Design Center
S1D13505 Interfacing to the PC Card Bus
X23A-G-005-06 Issue Date: 01/02/05

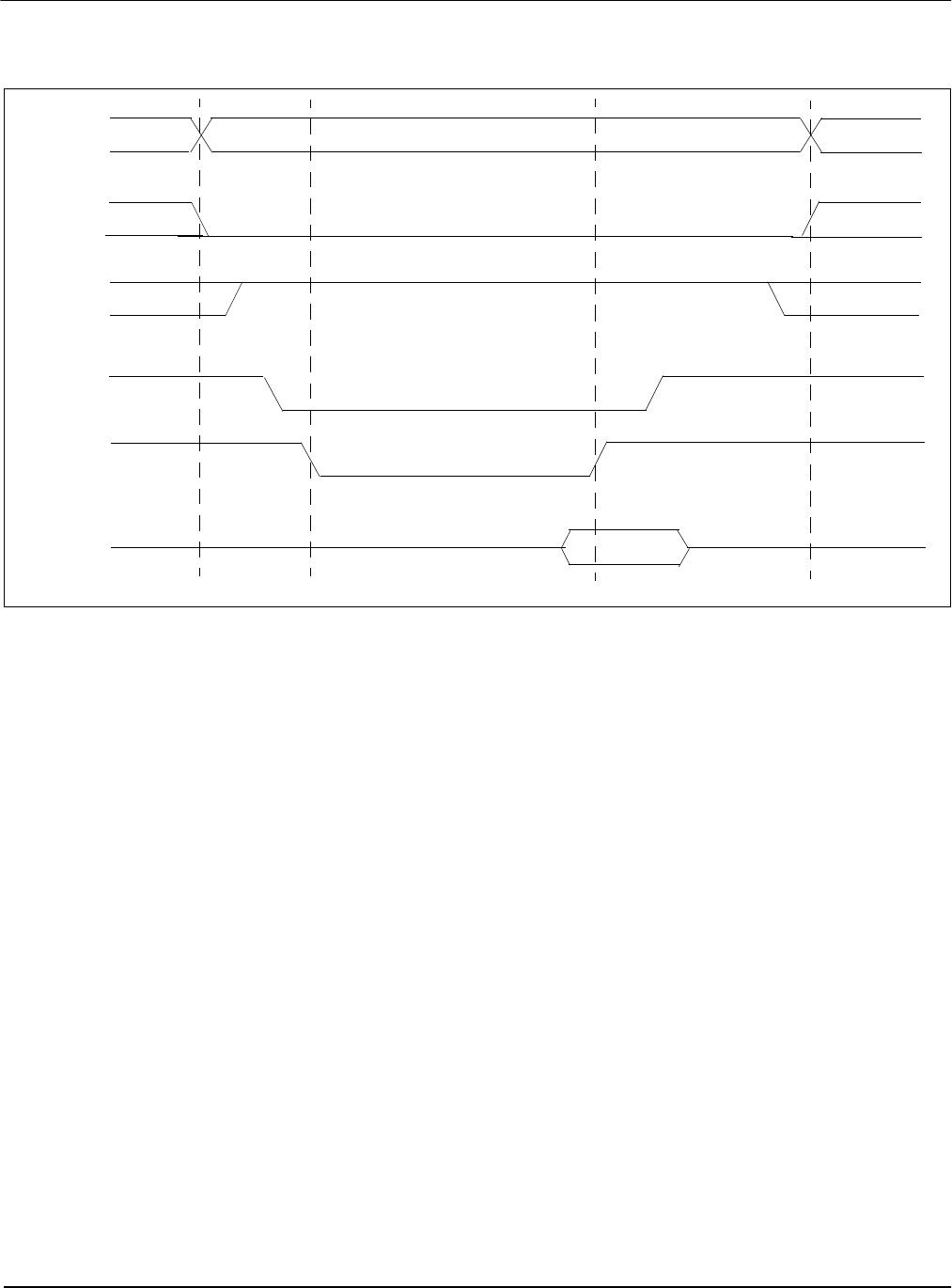

Figure 2-2: illustrates a typical memory access write cycle on the PC Card bus.
Figure 2-2: PC Card Write Cycle
A[25:0]
CE1#
OE#
WAIT#
ADDRESS VALID
DATA VALID
Hi-Z
Hi-Z
D[15:0]
REG#
CE2#
Transfer Start
Transfer Complete
WE#
