Cisco 800 Series Routers Hardware Installation Guide
78-5373-04
Chapter 1 Overview
Back Panels
Figure 1-3 Cisco 804 IDSL Front Panel
Back Panels
The figures in this section show the back panel of each of the Cisco 800 series routers.
If the symbol of suitability ( ) appears above a port, you can connect the port directly to a public
network that follows the European Union standards.
Warning
If the symbol of suitability with an overlaid cross ( ) appears above a port, you must not connect the
port to a public network that follows the European Union standards. Connecting the port to this type
of public network can cause severe injury or damage your router.

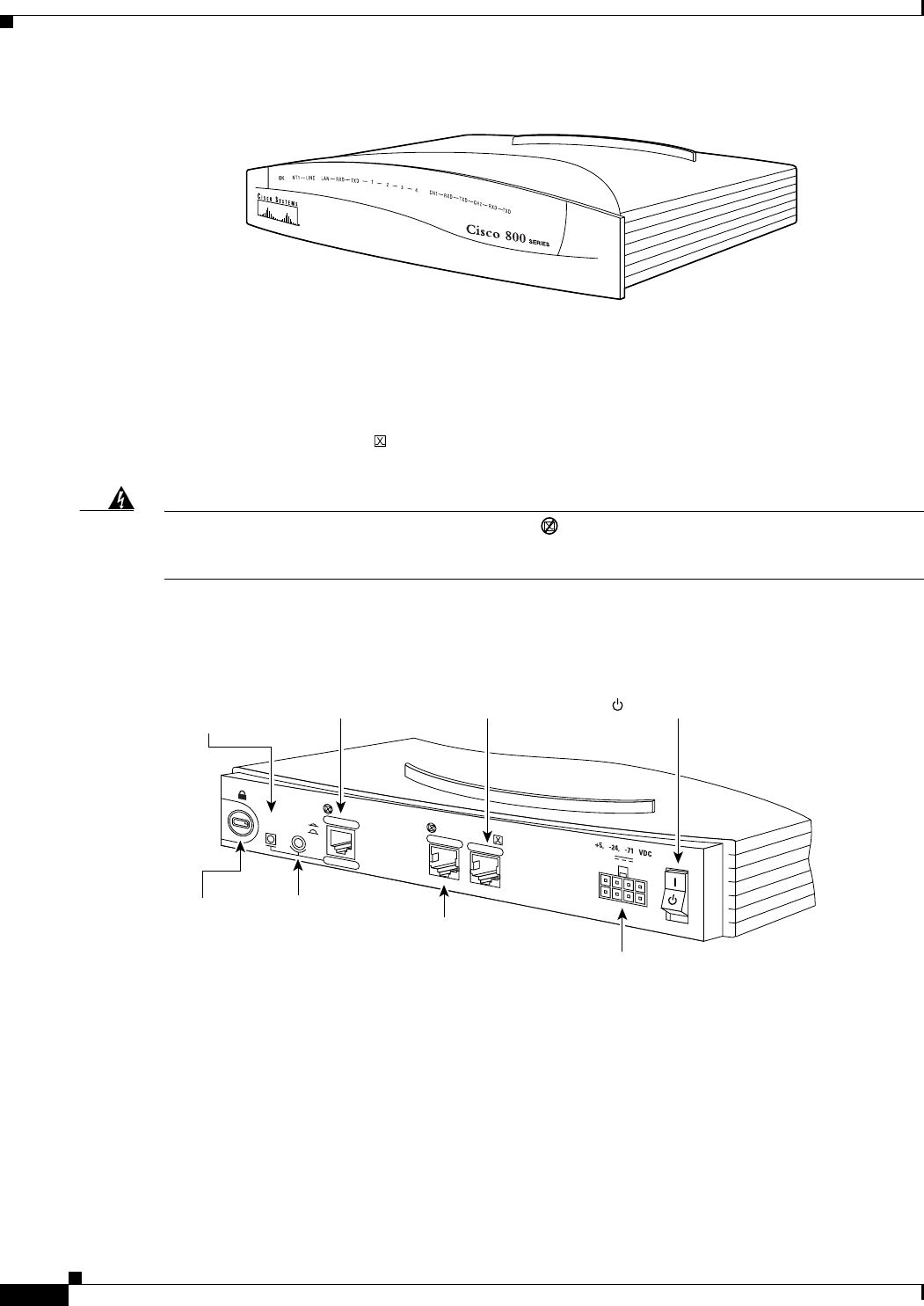

Figure 1-4 Cisco 801 Router Back Panel
30770
IDSL
IDSL
ETHERNET
11666
ISDN S/T
CONSOLE
Cisco 801
LINK
HUB
NO HUB
ETHERNET
10 BASE T
Cable lock
Use cable
lock to
physically
secure
router.
Link LED
Indicates state
of Ethernet
port. On when
connected.
HUB/NO HUB button
(for Ethernet port)
Determines cable
type for Ethernet
device connection.
Ethernet port
Connect Ethernet
network device.
Console port
Connect PC or
terminal.
ISDN BRI S/T port
Connect to external
NT1 or ISDN wall jack.
Locking power
connector
Connect power
supply.
Power switch
l = On.
= Standby or no power output.
