2-18
Cisco 800 Series Routers Hardware Installation Guide
78-5373-04
Chapter 2 Installation
Mounting Your Router
Connecting the Power Supply
To connect the power supply, follow the steps in Figure 2-10.
Warning
The device is designed to work with TN power systems.
Warning
This product relies on the building’s installation for short-circuit (overcurrent) protection. Ensure that
a fuse or circuit breaker no larger than 120 VAC, 15A U.S. (240 VAC, 16A international) is used on the
phase conductors (all current-carrying conductors).
Warning
This equipment is intended to be grounded. Ensure that the host is connected to earth ground during
normal use.

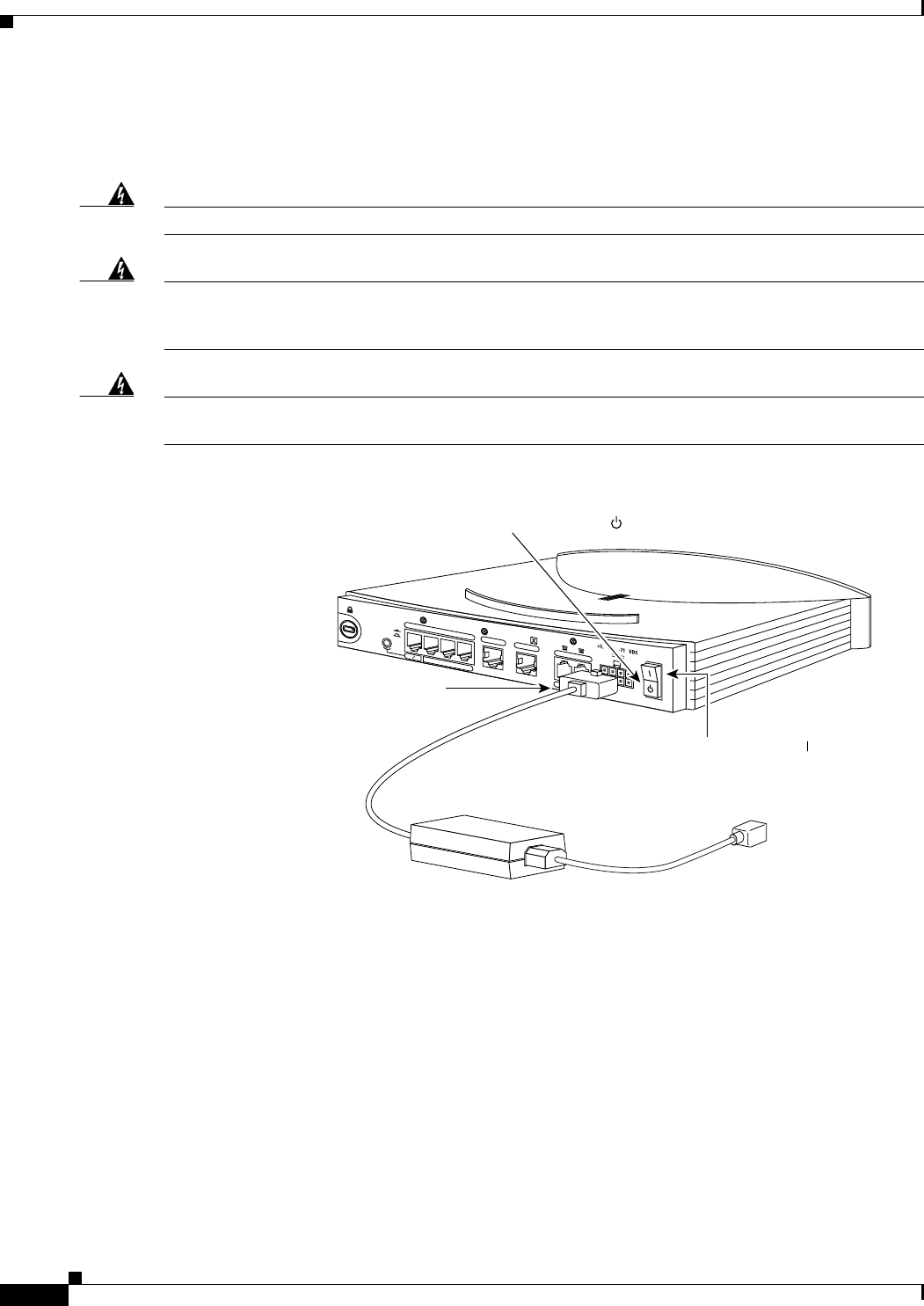

Figure 2-10 Connecting the Power Supply
Mounting Your Router
You can mount your router on one of the following surfaces:
• Table or other horizontal surface
• Wall or other vertical surface
Mounting on a Table
You can mount your router on a table or other horizontal surface. Use the following guidelines:
IS
D
N
S
/T
CONSOLE
1
2
ETHERNET 10 BASE T
HUB
N
O
H
U
B
Cisco 803
PHONE
0
1
2
3
Desktop power supply
11673
2. Connect power
supply cable.
4. Connect other end
of power cord to
electrical outlet.
Cisco 803 router
1. Press power switch to standby ( ).
5. Press power switch to on ( ).
3. Connect power cord
to power supply.
