PRACTICAL APPLICATIONS
WARNING
*To avoid personal injury, never remove or place a
workpiece on the table while the tool is being
operated.
* Never place your limbs inside of the line next to
warning sign while the tool is being operated. This
may cause hazardous conditions (see Fig. 26).

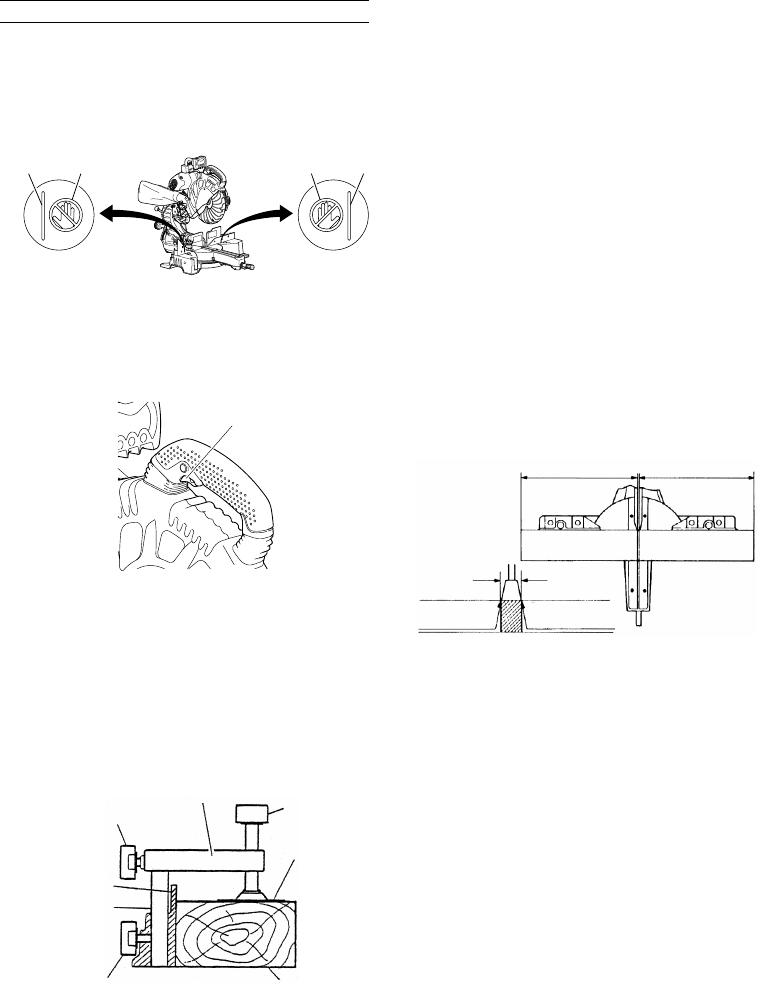

Fig. 26
1. Switch operation
Pull the trigger to turn on the switch, release it to shut
it off.
After releasing the trigger, make sure the trigger has
gone all the way back and the switch is turned off.
Fig. 27
2. Using the Vise Assembly (Standard accessory)
(1) The vise assembly can be mounted on either the left
fence {Fence (B)} or the right fence {Fence (A)} by
loosening the 6mm wing bolt (A).
(2) The screw holder can be raised or lowered according
to the height of the workpiece by loosening the 6mm
wing bolt (B). After the adjustment, firmly tighten the
6mm wing bolt (B) and fix the screw holder.
(3) Turn the upper knob and securely fix the workpiece
in position (Fig. 28).
Screw holder
Knob
Vise plate
Workpiece
6mm wing bolt (A)
Vise shaft
Fence
6mm wing
bolt (B)
Fig. 28
Warning signLine Warning sign Line
Trigger switch
WARNING
Always firmly clamp or vise to secure the workpiece
to the fence; otherwise the workpiece might be thrust
from the table and cause bodily harm.
CAUTION
Always confirm that the motor head (see Fig. 1) does
not contact the vise assembly when it is lowered for
cutting. If there is any danger that it may do so, loosen
the 6 mm wing bolt (B) and move the vise assembly
to a position where it will not contact the saw blade.
3. Cutting Operation
(1) As shown in Fig. 29 the width of the saw blade is the
width of the cut. Therefore, slide the workpiece to the
right (viewed from the operator’s position) when
length b is desired, or to the left when length a is
desired.
If a laser marker is used, align the laser line with the
left side of the saw blade, and then align the ink line
with the laser line.
(2) Once the saw blade reaches maximum speed, push
the handle down carefully until the saw blade
approaches the workpiece.
(3) Once the saw blade contacts the workpiece, push the
handle down gradually to cut into the workpiece.
(4) After cutting the workpiece to the desired depth, turn
the power tool OFF and let the saw blade stop
completely before raising the handle from the
workpiece to return it to the full retract position.
Fig. 29
CAUTION
* Increased pressure on the handle will not increase the
cutting speed.
On the contrary, too much pressure may result in
overload of the motor and/or decreased cutting
efficiency.
WARNING
* Confirm that the trigger switch is turned OFF and the
power plug has been removed from the receptacle
whenever the tool is not in use.
* Always turn the power off and let the saw blade stop
completely before raising the handle from the
workpiece.
If the handle is raised while the saw blade is still
rotating, the cut-off piece may become jammed
against the saw blade causing fragments to scatter
about dangerously.
* Every time one cutting or deep-cutting operation is
finished, turn the trigger switch off, and check that
the saw blade has stopped. Then raise the handle,
and return it to the full retract position.
* Be absolutely sure to remove the cut material from
the top of the turntable, and then proceed to the next
step.
Adjusting line
Marking
(pre-marked)
Marking
(pre-marked)
(Front view)
ab
a
b
a
b
