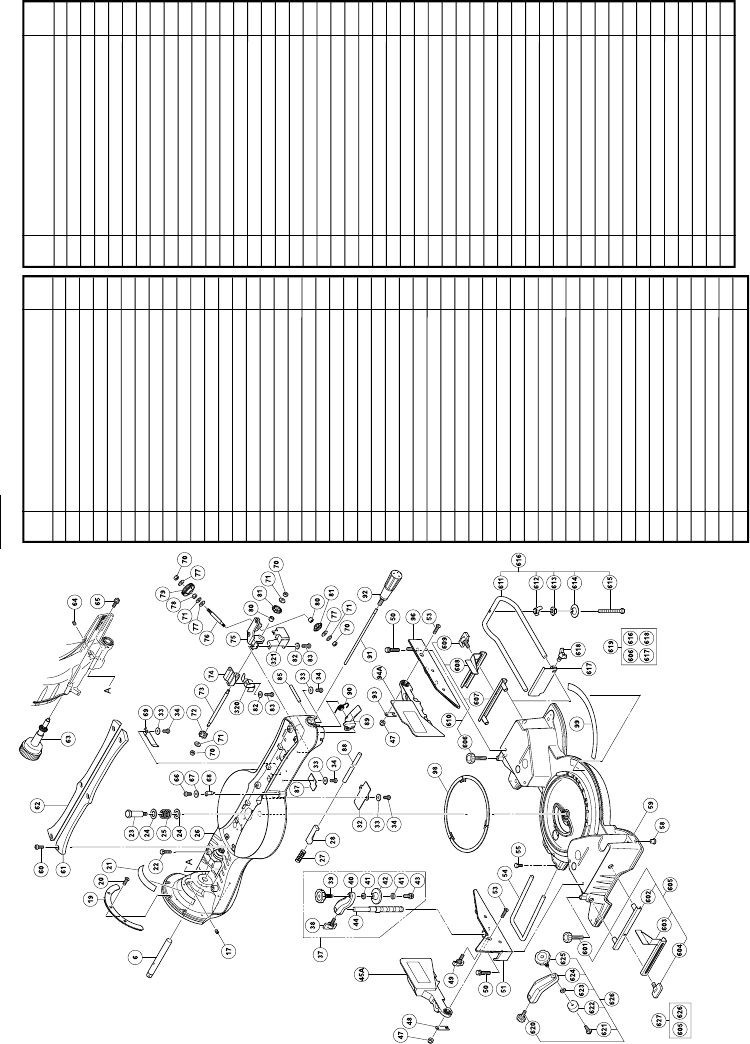

Hitachi C 12RSH Saw User Manual



26
C12RSH
ITEM
NO.
PART NAME Q’TY
6 HOLDER SHAFT 1
17
NYLOCK HEX. SOCKET SET SCREW M8 × 16
1
19 GEAR (A) 1
20 FLAT HD. SCREW M4 × 16 3
21 SCALE (B) 1
22 NYLOCK BOLT M8 × 25 2
23 SHAFT (B) 1
24 BOLT WASHER M16 2
25 SPRING (B) 1
26 TURN TABLE 1
27 SPRING (E) 1
28 STOPPER (A) 1
32 PIN COVER 1
33 BOLT WASHER M4 4
34 MACHINE SCREW M4 × 84
37 VISE ASS'Y 1
38 WING BOLT M6 × 12 1
39 KNOB BOLT M10 1
40 SCREW HOLDER 1
41 WASHER 2
42 VISE PLATE 1
43
MACHINE SCREW (W/WASHERS) M5 × 12
1
44 VISE SHAFT 1
45A SUB FENCE (B) 1
47 NYLON NUT M6 2
48 PLATE (B) 1
49 WING BOLT M6 × 17 1
50 BOLT (W/WASHERS) M8 × 35 4
51 FENCE (B) 1
53 FLAT HD. SCREW M6 × 25 2
54 HOLDER 1
55 BOLT M6 × 10 1
58 BASE RUBBER 4
59 BASE ASS'Y 1
60 MACHINE SCREW M5 × 16 6
61 TABLE INSERT (B) 1
62 TABLE INSERT (A) 1
63 KNOB (B) 1
64
SEAL LOCK HEX. SOCKET SET SCREW M6 × 10
2
65
MACHINE SCREW (W/WASHERS) M5 × 16
1
66 MACHINE SCREW M4 × 12 1
67 BOLT WASHER M4 1
68 INDICATOR 1
69 SPACER (A) 1
70 LOCK NUT M6 4
71 SPRING WASHER M6 4
72 GEAR (D) 1
73 BEVEL SHAFT (B) 1
74 SHAFT HOLDER (B) 1
75 SHAFT HOLDER (A) 1
ITEM
NO.
PART NAME Q’TY
76 BEVEL SHAFT (A) 1
77 BOLT WASHER M6 3
78 NUT M6 1
79 KNOB (A) 1
80 METAL D8 × 10 2
81 BEVEL GEAR 2
82 SPRING WASHER M5 4
83 MACHINE SCREW M5 × 20 4
85 LEVER SHAFT 1
87 COVER (B) 1
88 SHAFT (C) 1
89 LEVER 1
90 SPRING (D) 1
91 SHAFT (A) 1
92 SIDE HANDLE 1
93 PLATE (A) 1
94A SUB FENCE (A) 1
96 FENCE (A) 1
98 LINER 3
99 SCALE (A) 1
320 GEAR COVER (B) 1
321 GEAR COVER (C) 1
601 KNOB BOLT M6 × 32 1
602
CROWN MOLDING STOPPER HOLDER
1
603 CROWN MOLDING STOPPER (L) 1
604 WING BOLT M6 × 15 1
605
CROWN MOLDING STOPPER (L) ASS'Y
1
606 KNOB BOLT M6 × 32 2
607
CROWN MOLDING STOPPER HOLDER
1
608 CROWN MOLDING STOPPER (R) 1
609 WING BOLT M6 × 15 1
610
CROWN MOLDING STOPPER (R) ASS'Y
1
611 HOLDER 2
612 WING NUT M6 2
613 NUT M6 2
614 VISE PLATE 2
615 HIGH TENSION BOLT M6 × 95 2
616 HOLDER ASS'Y 2
617 STOPPER 1
618 WING BOLT M6 × 20 1
619
EXTENSION HOLDER AND STOPPER
1
620 KNOB BOLT M6 × 11 1
621
MACHINE SCREW (W/WASHERS) M4 × 10
1
622 BASE RUBBER 1
623 WASHER (H) 1
624 SCREW HOLDER (B) 1
625 KNOB BOLT M10 × 54 1
626 VISE (B) ASS'Y 1
627 CROWN MOLDING VISE ASS'Y 1
