565 Trailer Sprayer - Operation Instructions
Section B
Fill Solution Tank, With Tank Agitation: Loading of
the solution tank, using tank agitation, is accomplished
via the following steps:
1. Close
all valves.
2. Remove solution quick fill cap & connect load hose.
3. Open
solution quick fill valve and the solution tank
main valve.
4. Open
valve on loading reservoir (i.e. nurse tank).
5. Start the remote transfer pump.
6. Open the agitation valve.
7. Engage the liquid pump of the trailer sprayer.
8. Disengage the liquid pump of the trailer sprayer
when adequate agitation is achieved.
9. Run remote transfer pump until the desired amount
of solution is transferred into the trailer sprayer.
10. Close
the agitation valve.
11. Close valves on loading reservoir.
12. Close the solution quick fill and the solution tank
main valves.
13. Remove load line and replace cap on sprayer quick
fill.
Fill Freshwater Rinse Tank
1. Close all valves.
2. Remove the freshwater rinse tank cap.
3. Fill tank to desired level.
4. Replace the freshwater rinse tank cap.
7
Section B
IMPORTANT
Turn off a hydraulically driven centrifugal pump using the “float” posi-
tion of the tractor’s hydraulic valve. This allows the motor to stop
slowly helping to protect the motor and motor seals.

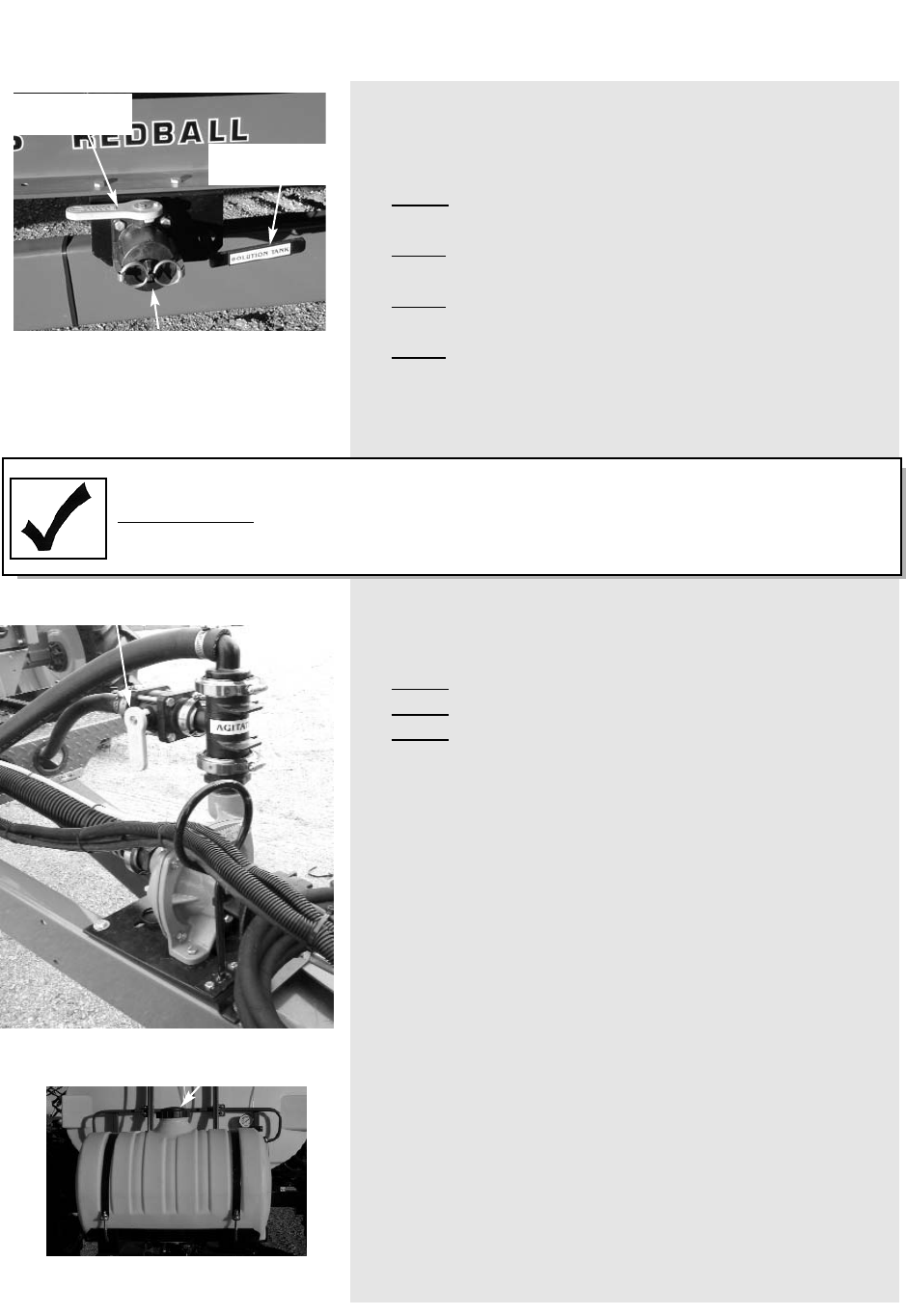

Agitation Valve
Quick Fill Cap
Solution Quick
Fill Valve
Solution Tank
Main Valve
55 Gallon Fresh Water
Rinse Tank
Freshwater
Rinse Tank Cap
