Unload
Three processes can be utilized for unloading of liquid
remaining in the solution tank.
Option A: Spray remaining liquid out the sprayboom
plumbing.
Option B: Remove Quick Fill Cap, open the solution
quick fill valve and the solution tank valves
and let remaining liquid drain via gravity from
the solution tank.
Option C: Remove plug in main solution tank.
Hydraulics
Hydraulic power for the trailer sprayer is supplied from
the tractor hydraulic system. The hydraulically driven
centrifugal pump and the sprayboom fold operations are
powered by the tractor hydraulics. The pressure return
line for the liquid pump has red tape wrapped around the
ends, with two wraps on the pressure line and one wrap
on the return line. The pressure and return line for each
of the boom fold cylinders are wrapped with color coded
tape near the ends as well. A minimum requirement of
25 absolute micron filtration should be incorporated into
the tractor hydraulics to assure adequate filtration of the
oil supplied to the trailer sprayer components.
11
Section B
565 Trailer Sprayer - Operation Instructions
Section B
Make certain to correctly connect the pressure and return lines
between the sprayer and the tractor. See pump manufacturer’s
manual for open center and closed center hydraulic system
instructions.
IMPORTANT
Always dispose of chemical or diluted chemical according
to your local, state, and federal regulations.
IMPORTANT

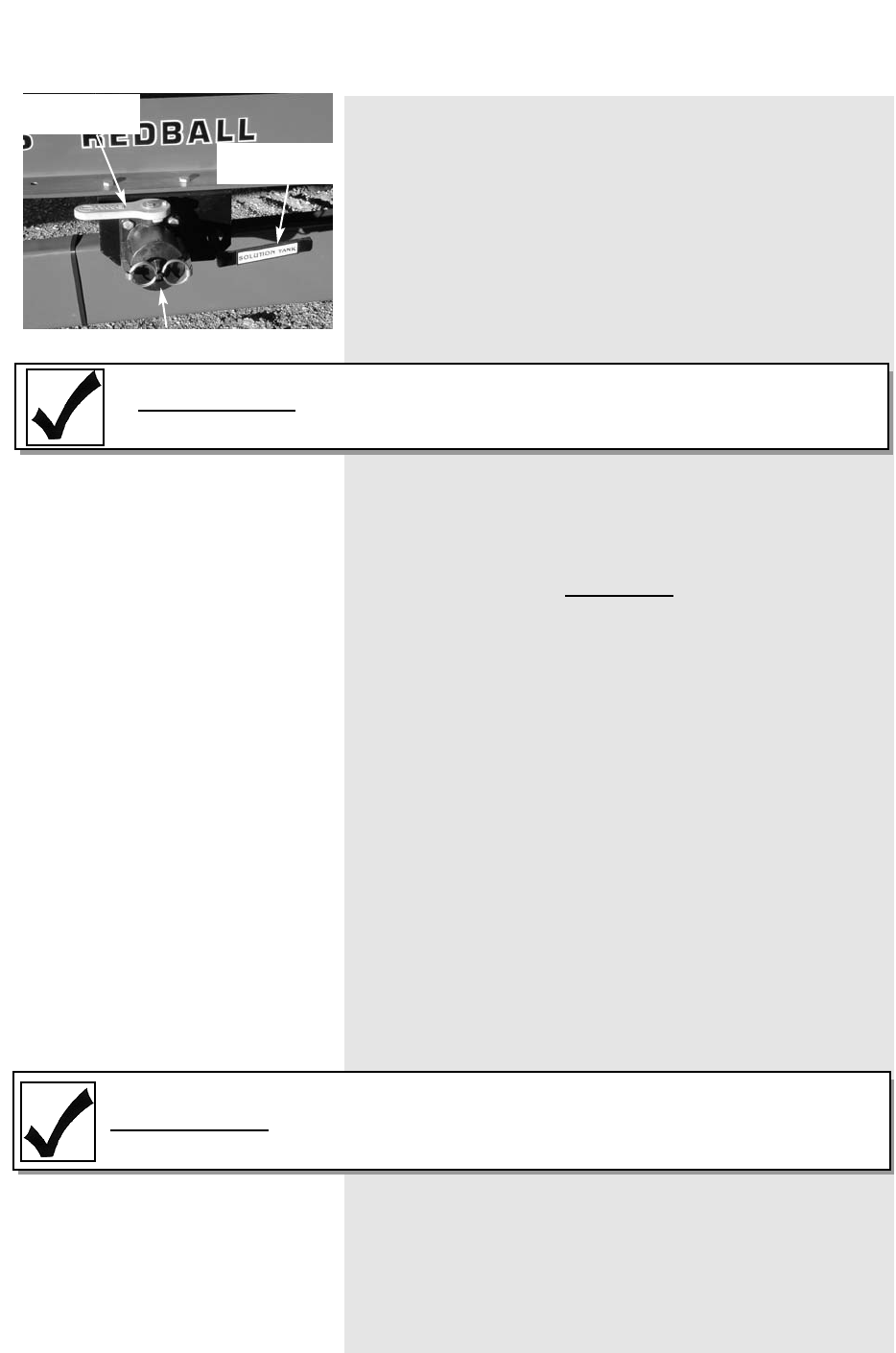

Quick Fill Cap
Solution Quick
Fill Valve
Solution Tank
Main Valve
