565 Trailer Sprayer - Operation Instructions
Section B
9
Section B
Rinse Sprayboom Plumbing
Using the clean water rinse tank system (optional on 665),
rinse the sprayboom plumbing with clean water via the
following steps:
1. Close
all valves.
2. Open the clean water rinse tank valve.
3. Open all sprayboom section valves with the solution
spray controller.
4. Power ON the liquid pump of the trailer sprayer.
5. Run for 15-30 seconds to thoroughly rinse. Repeat if
needed.
6. Power OFF the liquid pump of the trailer sprayer.
7. Close
the clean water rinse tank valve.
8. Close all sprayboom section valves.
Rinse Agitation System
Rinse the agitation plumbing via the following steps:
1. Close
all valves.
2. Open
the clean water rinse tank valve.
3. Open the agitation valve.
4. Power ON the liquid pump of the trailer sprayer.
5. Run for 15-30 seconds to thoroughly rinse the
insides of the agitation plumbing.
6. Power OFF the liquid pump of the trailer sprayer.
7. Close
the clean water rinse tank valve.
8. Close the agitation valve.
Only you, the operator can determine the length of time
required to completely rinse all chemical residue from the
sprayer tanks and plumbing systems.
IMPORTANT
IMPORT
ANT
Turn off a hydraulically driven centrifugal pump using the “float” posi-
tion of the tractor’s hydraulic valve. This allows the motor to stop
slowly helping to protect the motor and motor seals.
Only the operator can determine the length of time
required to completely rinse all chemical residue
from the sprayer tanks and plumbing systems.
IMPORTANT
IMPORTANT
Turn off a hydraulically driven centrifugal pump using the “float” posi-
tion of the tractor’s hydraulic valve. This allows the motor to stop
slowly helping to protect the motor and motor seals.

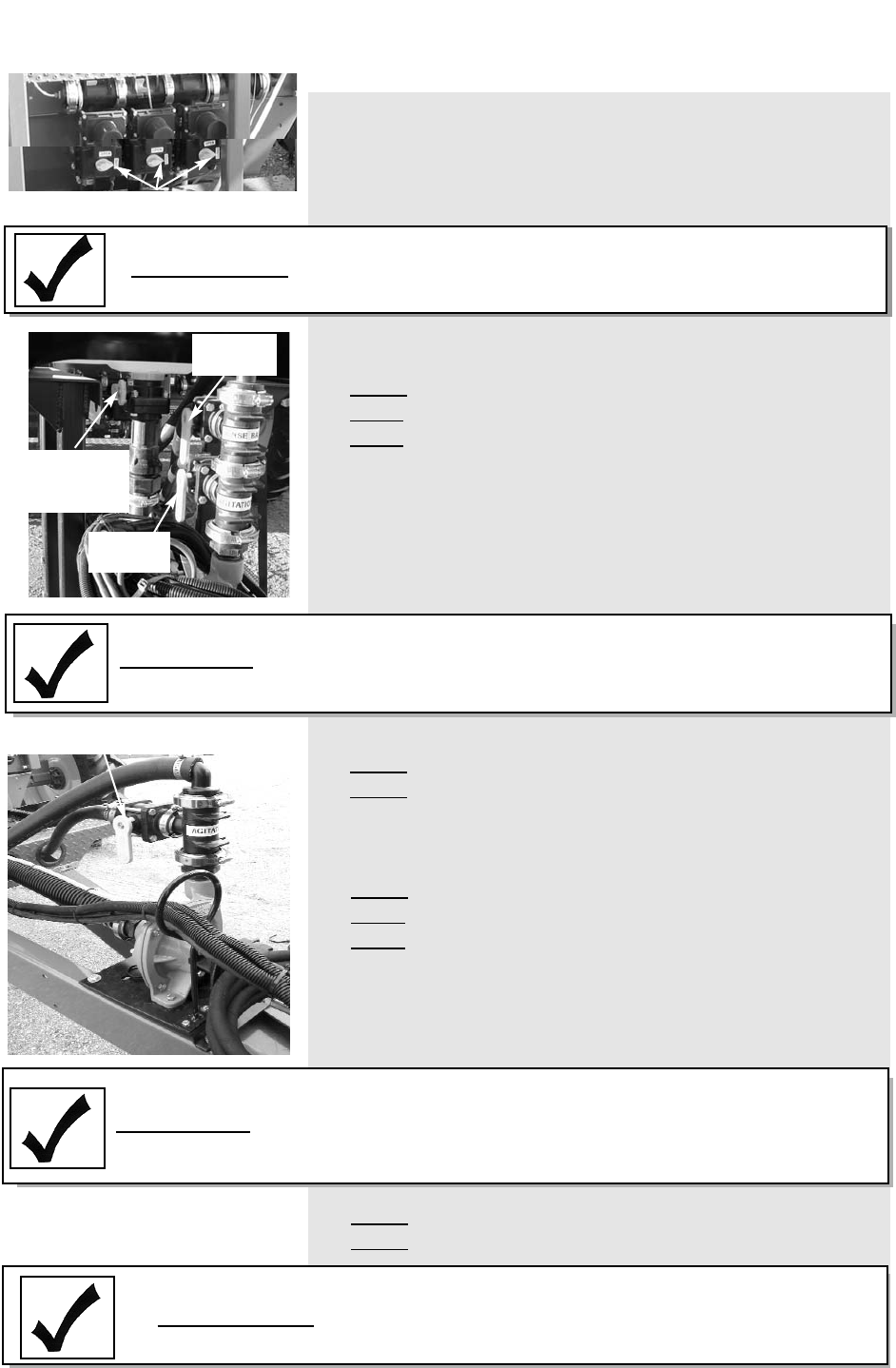

Sprayboom Section Valves
Agitation
Valve
Rinse Ball
Valve
Clean Water
Rinse Tank
Valve
Agitation Valve
