YORK INTERNATIONAL
FORM 160.81-EG1

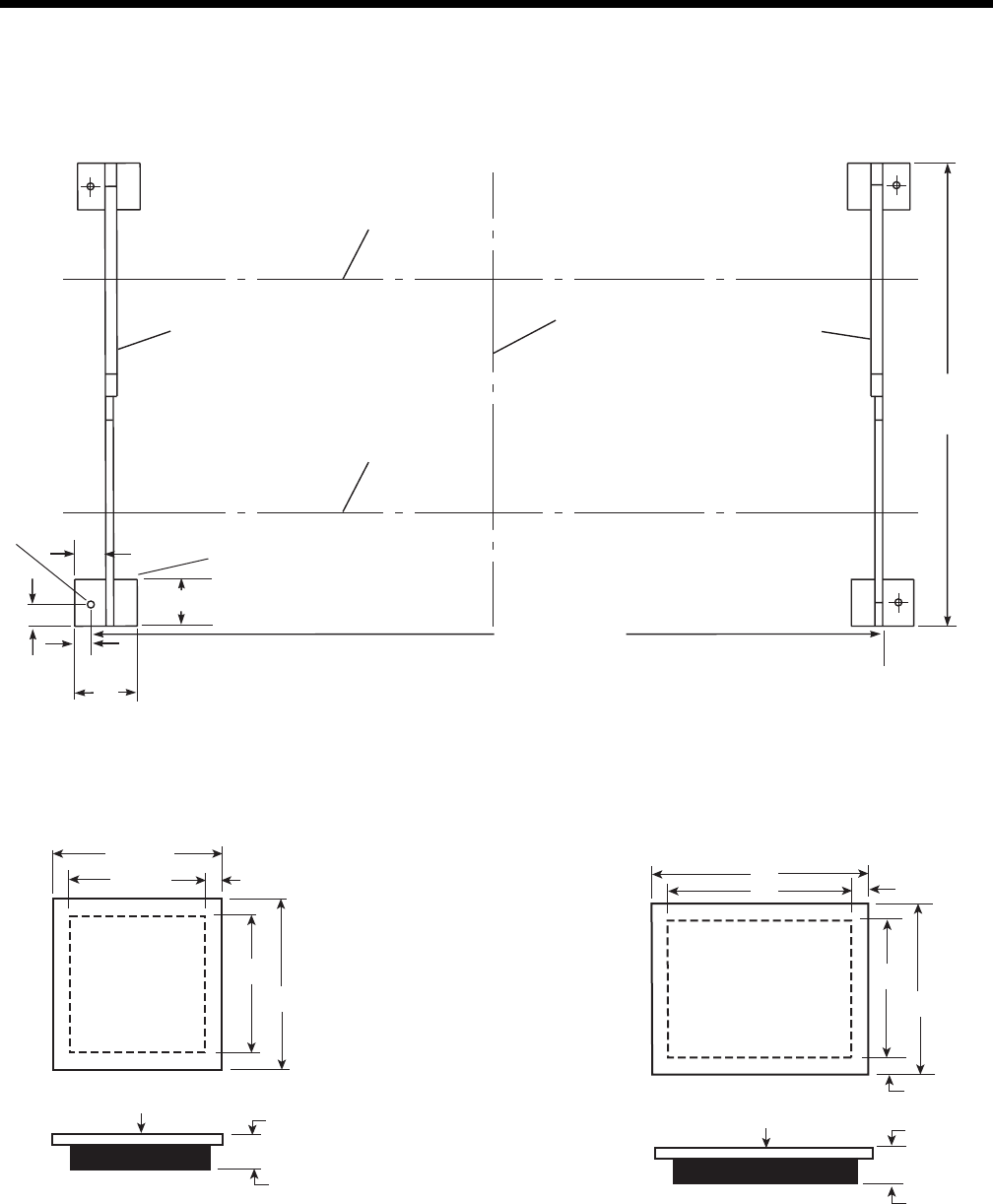

Dimensions (mm) – Floor Layout
NEOPRENE ISOLATORS
LD07611
152.4
203.2
C
L
C
L
C
L
CONDENSER
EVAPORATOR
END SHEET
SHELLS
END SHEET
FLOOR LAYOUT
SUPPORT FOOT
DIMENSIONS ARE
TYPICAL ALL 4 CORNERS
25
76.2
22 mm DIA.
HOLE
140
114
114
140
13 mm STEEL PLATE
25 mm DEFLECTED
HEIGHT
13
UNIT WEIGHT UP TO 7,423 KGS.
ISOLATOR TO BE CENTERED
UNDER SUPPORT FOOT
76.2
178
152
114
140
13
13
13 mm STEEL PLATE
25 mm DEFLECTED
HEIGHT
DIMENSION "A"
From Fig. 3 (pgs. 26 & 27)
DIMENSION "C"
From Fig. 3
(pgs. 26 & 27)
UNIT WEIGHT 7,423 TO 13,107 KGS.
