Appendix 1 Cable
MITSUBISHI CNC
144

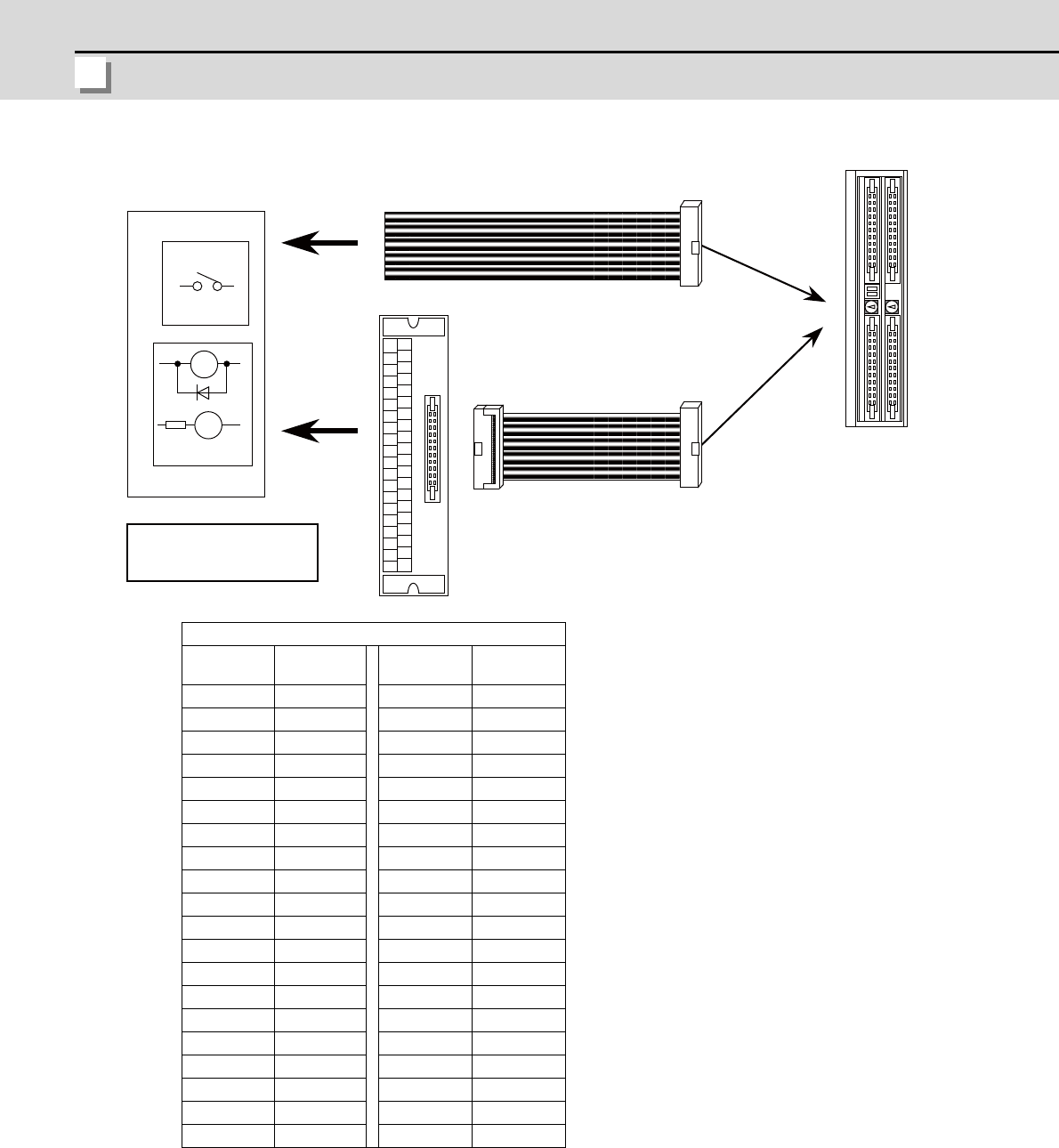

Connector pin correspondence
Terminal
block BX1F
FCUA-
DX1xx
Terminal
block BX1F
FCUA-
DX1xx
1A1 2B1
3A2 4B2
5A3 6B3
7A4 8B4
9A5 10B5
11 A6 12 B6
13 A7 14 B7
15 A8 16 B8
17 A9 18 B9
19 A10 20 B10
21 A11 22 B11
23 A12 24 B12
25 A13 26 B13
27 A14 28 B14
29 A15 30 B15
31 A16 32 B16
33 A17 34 B17
35 A18 36 B18
37 A19 38 B19
39 A20 40 B20
RA
R
PL
FCUA-R300
FCUA-R301
IDEC
BX1F-T40A
151391175313129252723211917 333537 39
1614101286423230262824222018 34363840
Machine control panel,
electric cabinet, etc.
RA : Relay
PL : Pilot lamp
