Appendix 1 Cable
MITSUBISHI CNC
136

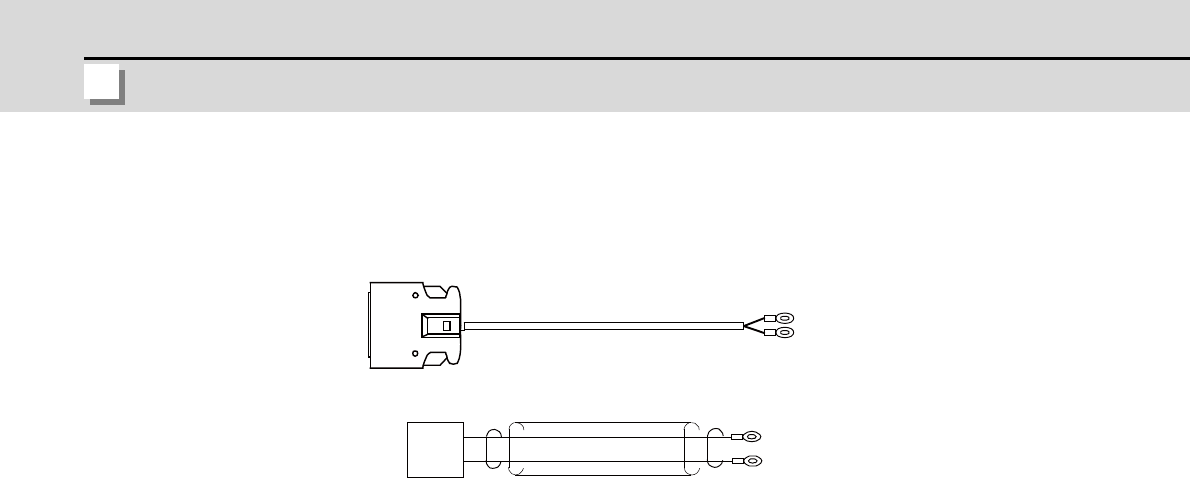

Appendix 1.19 F221 Cable
Max. cable length: 30m
Application: Analog output
(Note 1) Follow the instruction of the machine side in connecting the shield. Do not connect on the base I/O unit
side.
(Note 2) Select the crimp terminal suitable for the terminal block you use.
[AO]
Connector: 10120-3000VE
Contact: 10320-52F0-008
Recommended manufacturer: 3M
Wire material: B-22(19)×2SJ-1×9
Recommended manufacturer:
Sumitomo Electric Industries
Crimp terminal: V1.25-3
Recommended manufacturer: JST
AO
7
1
AO
GND
AO
GND
AO
