Turbomachinery Package Specification Taurus 60 Compressor Set and Mechanical Drive
For more details about Solar centrifugal compressors, please consult Solar’s engineering
for project specific gas compressors. Figures 6 and 7 show the internal construction of
typical Solar compressors.

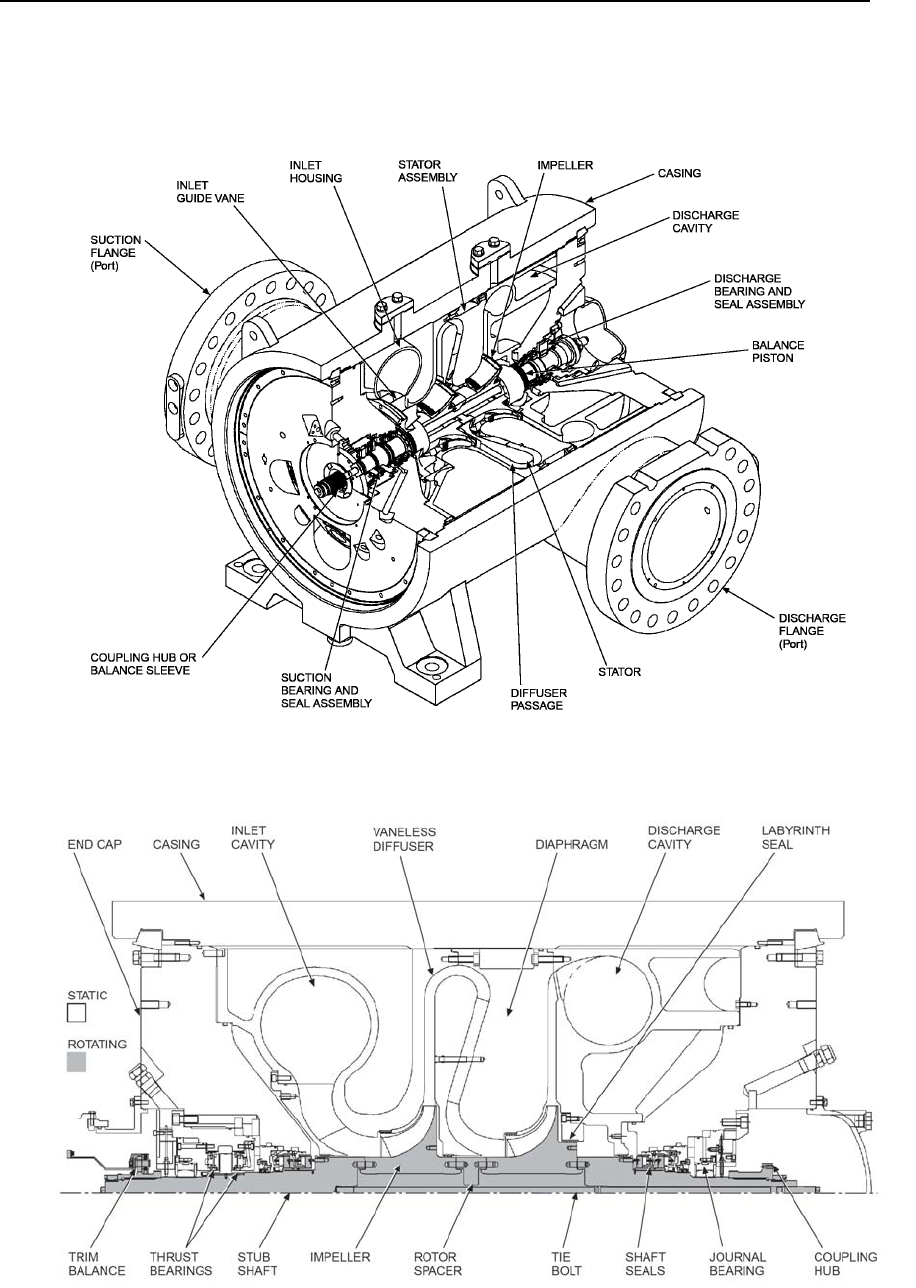

Figure 6. Cutaway Diagram of a Solar Gas Compressor
Figure 7. Cross Section of a Solar Gas Compressor
© 2009 Solar Turbines Incorporated. All rights reserved. TPS60CSMD/309
14
