17B@A:2;A@
'< .C<61 =<@@6/92 6;7B?F
16@0<;;20A =9B4 3?<: =<D2?
@<B?02 /23<?2 =2?3<?:6;4 .;F .@@2:/9F
.17B@A:2;A<??2=.6?
52086;4H2C29&A<=&2AA6;4
1. Hold the saw head assembly down and push in
the head assembly lock pin (item 43 – page 9) to
keep the saw in the DOWN position.
2. Slide the head assembly completely to the back
and engage the lock lever (item 27 – page 9) by
lifting up the finger tab.
3. Rotate the table to the 0° miter position.
4. Pull up the bevel lock lever to loosen.
5. Check the position of the bevel range selector
knob; it should be at the “0-45° Left” position.
6. Tilt the saw assembly to the left
(counterclockwise), then rotate to the right
(clockwise) until it hits the stop in the vertical
position – this is where the saw is currently set to
make a 0° cut.
7. Push down the bevel lock lever to lock the angle
position.

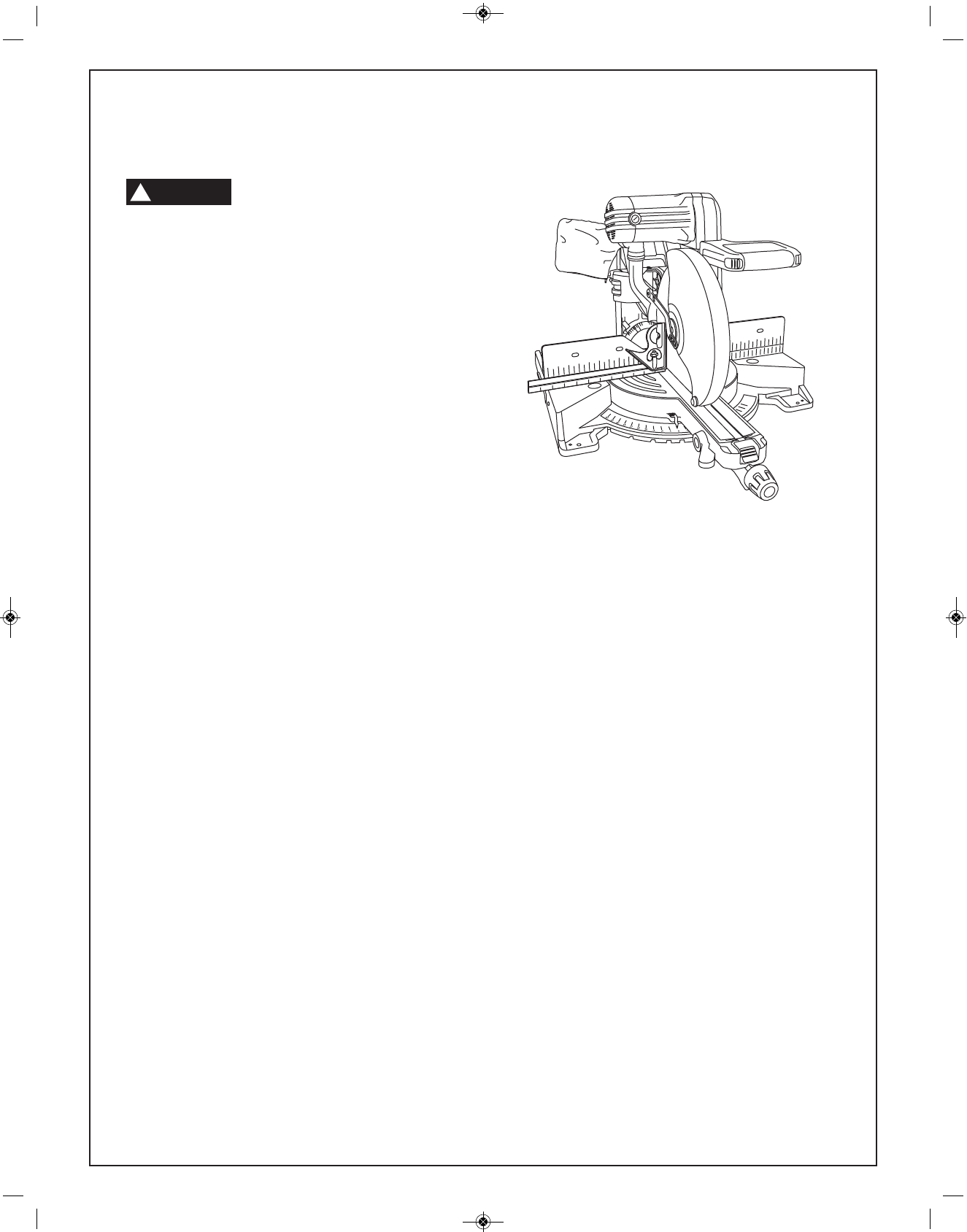

8. Use a combination square to check that the blade
is 90° (square) to the table. Place the square’s
ruler edge against the table and slide it to contact
the blade with the vertical side of the square’s
head (see Figure 22).
64B?2
9. Check that the saw blade’s plate (not teeth) is
touching the square’s 90° side. If the saw blade’s
plate is not in full contact with the square’s body
90° side, follow the “Adjusting 0° Bevel Stop”
procedures.
*%""
!
H2C29&A<=J17B@A:2;A$?<021B?2
BM 2610027879 07-13_BM 2610027879 07-13.qxp 7/8/13 9:52 AM Page 21
