For safety, the switch lever is designed to prevent
accidental starts. To operate safety switch, press the
switch “Lock-OFF” button with either thumb to
disengage the lock, then pull the power switch lever
and release the switch “Lock-OFF” release button
(see Figure 39). When the power switch lever is
released, the switch “Lock-OFF” button will engage
the safety switch automatically, and the lever will no
longer operate until either “Lock-OFF” button is
pressed again.
NOTE: The power switch lever is made with a hole
to accommodate a long shackle padlock to prevent
unauthorized use of the saw (padlock is not provided
with tool). The lock’s shackle diameter may be up
to 1/4".
64B?2&D6A050A6C.A6<;

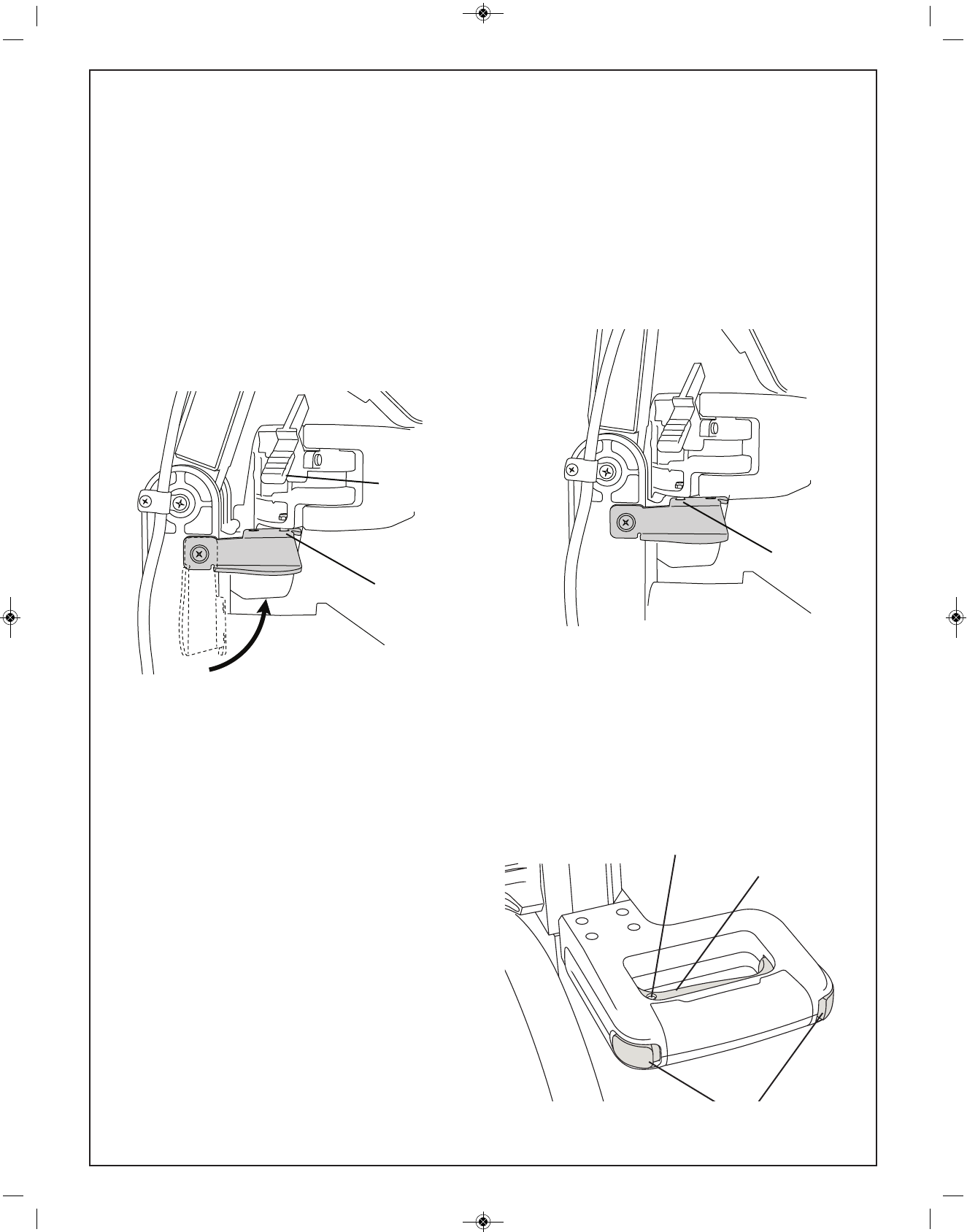

Power Switch Lever
Padlock Hole
&.D#=2?.A6<;@
&D6A050A6C.A6<;
This saw is equipped with a Chop/Crown Lock feature
that is intended to lock the head assembly in place
while giving the maximum capacity for upright cuts and
crown cuts.
;4.46;452.13<?A?.16A6<;.95<=0BA@
1. To engage the Chop/Crown feature ensure that the
mechanism lock lever is disengaged.
2. Slide the head assembly forward and engage the
lever into the first hole labeled “Chop Cut”.
The saw is capable of making upright cuts against the
fence up to 5-1/4” tall.
64B?25<=BA=<@6A6<;
;4.46;452.13<??<D;!<916;4
1. To engage the Chop/Crown feature ensure that the
mechanism lock lever is disengaged.
2. Slide the head assembly forward and engage the
lever into the second hole labeled “Crown Cut”.
The saw is capable of cutting crown molding (for crown
cutting refer to pages 45-49).
64B?2?<D;BA=<@6A6<;
5<=?<D; <08
$?2=.?6;43<?&.D#=2?.A6<;@
“Crown Cut”
Position
Mechanism
Lock Lever
“Chop Cut”
Position
