$6A05 .;492 6;3<?:.A6<; – The top section of the
miter scale shows angle settings required to cut roof
rafters to the “Pitch Angle” system. 2/2, 4/12, 6/12,
etc., are all pitch angles. This system is based on
using the English “inches.” A 6/12 pitch angle roof
equals a ratio of 6" “rise” for every 12" “run” (see
Figure 45).
64B?2$6A05;492BAA6;4J<::<;%<<3%.3A2?@
12
12
12/12
ROOF ANGLE = 45° (SLOPE)
RAFTER
RISE
RUN
12 RUN
6
6/12
ROOF ANGLE = 26.56° (SLOPE)
RISE
RAFTER

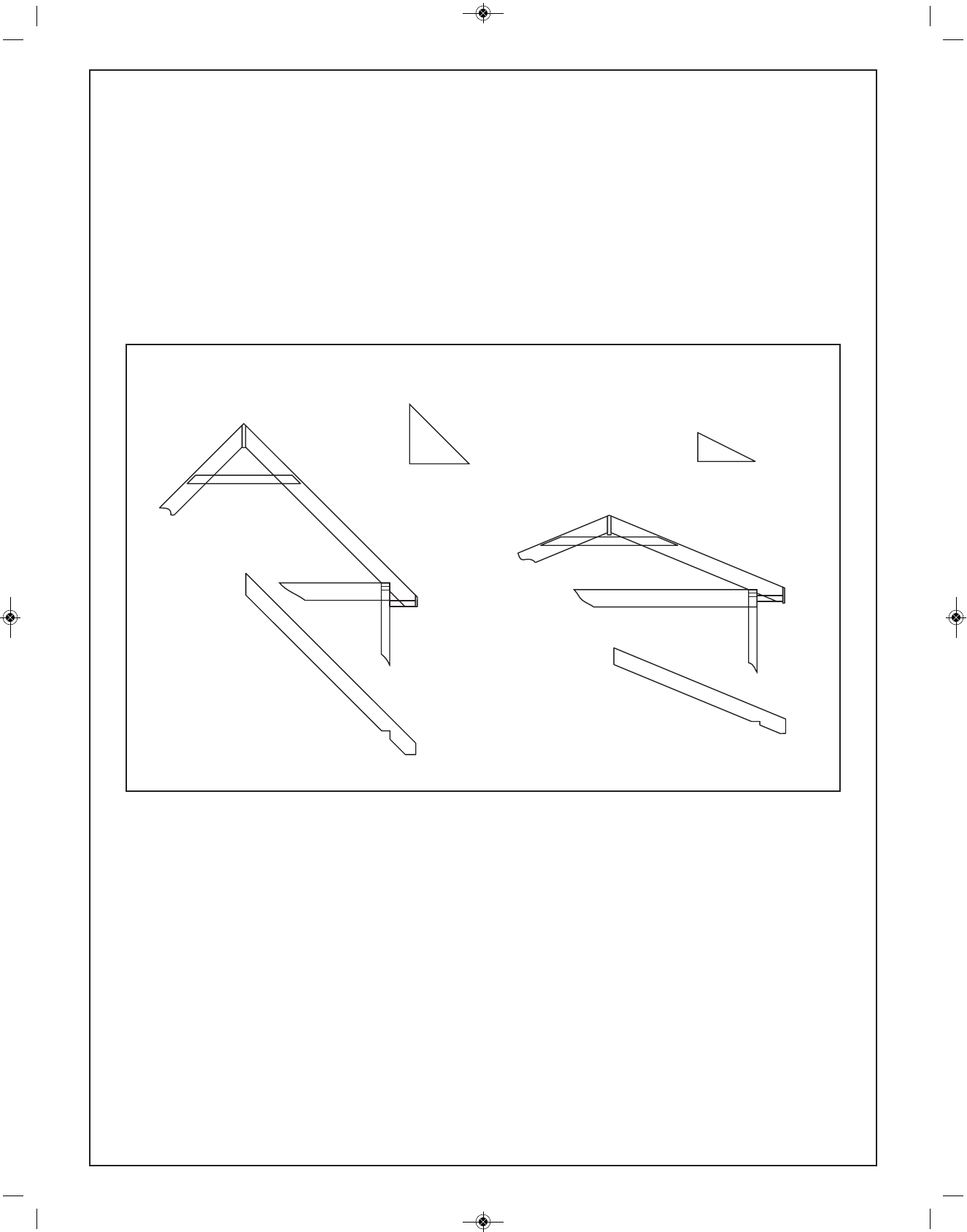

?<D; :<916;4 6;3<?:.A6<; – There are miter
position settings for compound-cutting crown molding
flat on the table. Crown molding with 38° “spring
angle” uses the 31.6 setting (with detent) and crown
molding with 45° “spring angle” uses the 35.3 setting.
NOTE: This cutting method also requires that specific
bevel angles are set – see Cutting Crown Molding on
page 45.
