Cisco 7600 Series Router Supervisor Engine and Route Switch Processor Guide
OL-10100-04
Appendix B Cable and Connector Specifications
RJ-45 Connector

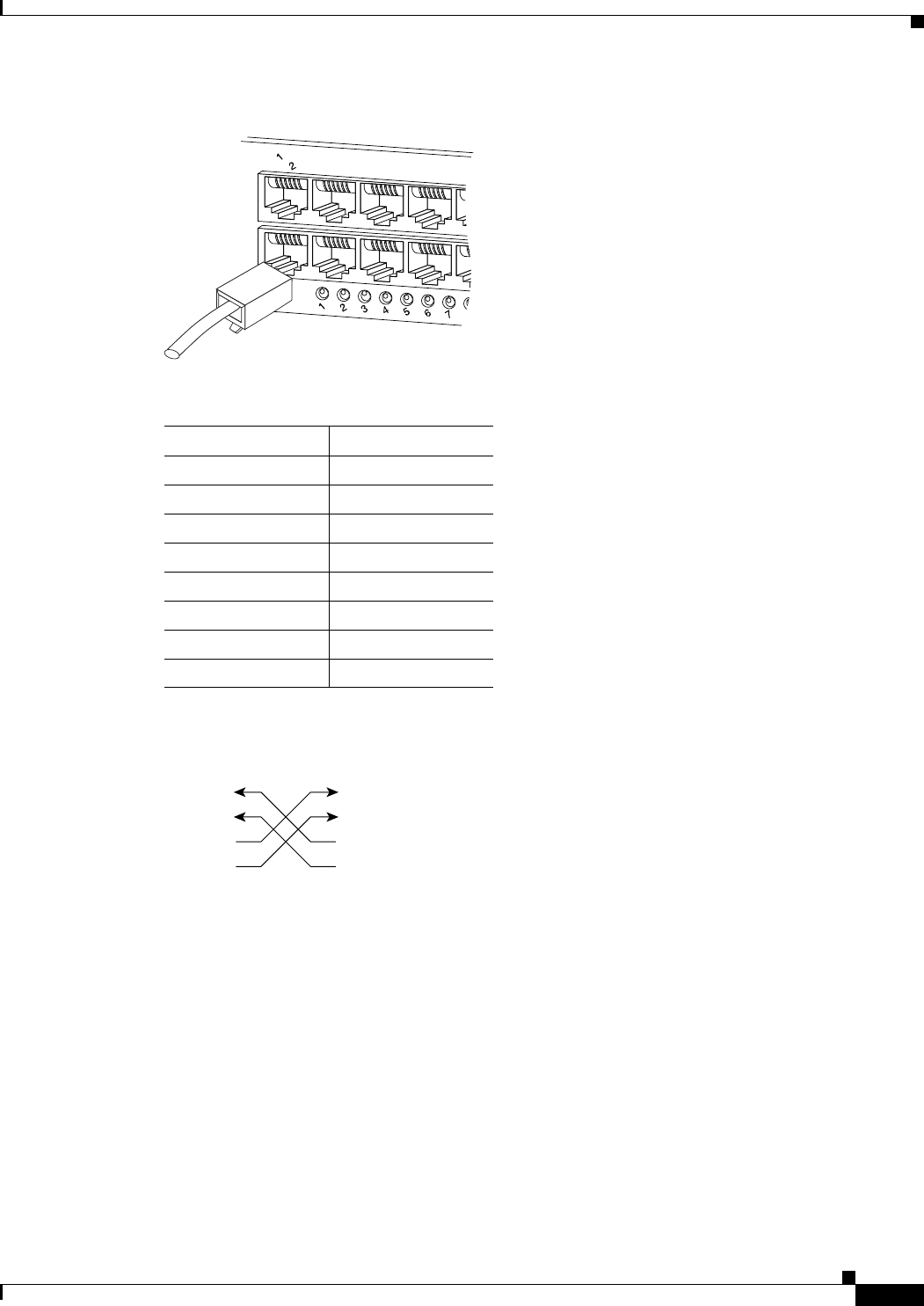

Figure B-2 RJ-45 Interface Cable Connector
Figure B-3 Twisted-Pair Crossover 10/100BASE-T Cable Schematic
Tab le B-12 10/100BASE-T Crossover Cable Pinout (MDI-X)
Side 1 Pin (Signal) Side 2 Pin (Signal)
1 (RD+) 3 (TD+)
2 (RD–) 6 (TD–)
3 (TD+) 1 (RD+)
6 (TD–) 2 (RD–)
4 (Not used) 4 (Not used)
5 (Not used) 5 (Not used)
7 (Not used) 7 (Not used)
8 (Not used) 8 (Not used)
48129
1 RD+
2 RD-
3 TD+
6 TD-
1 RD+
Switch Switch
2 RD-
3TD+
6TD-
4NC
5NC
7NC
8NC
4NC
5NC
7NC
8NC
65273
