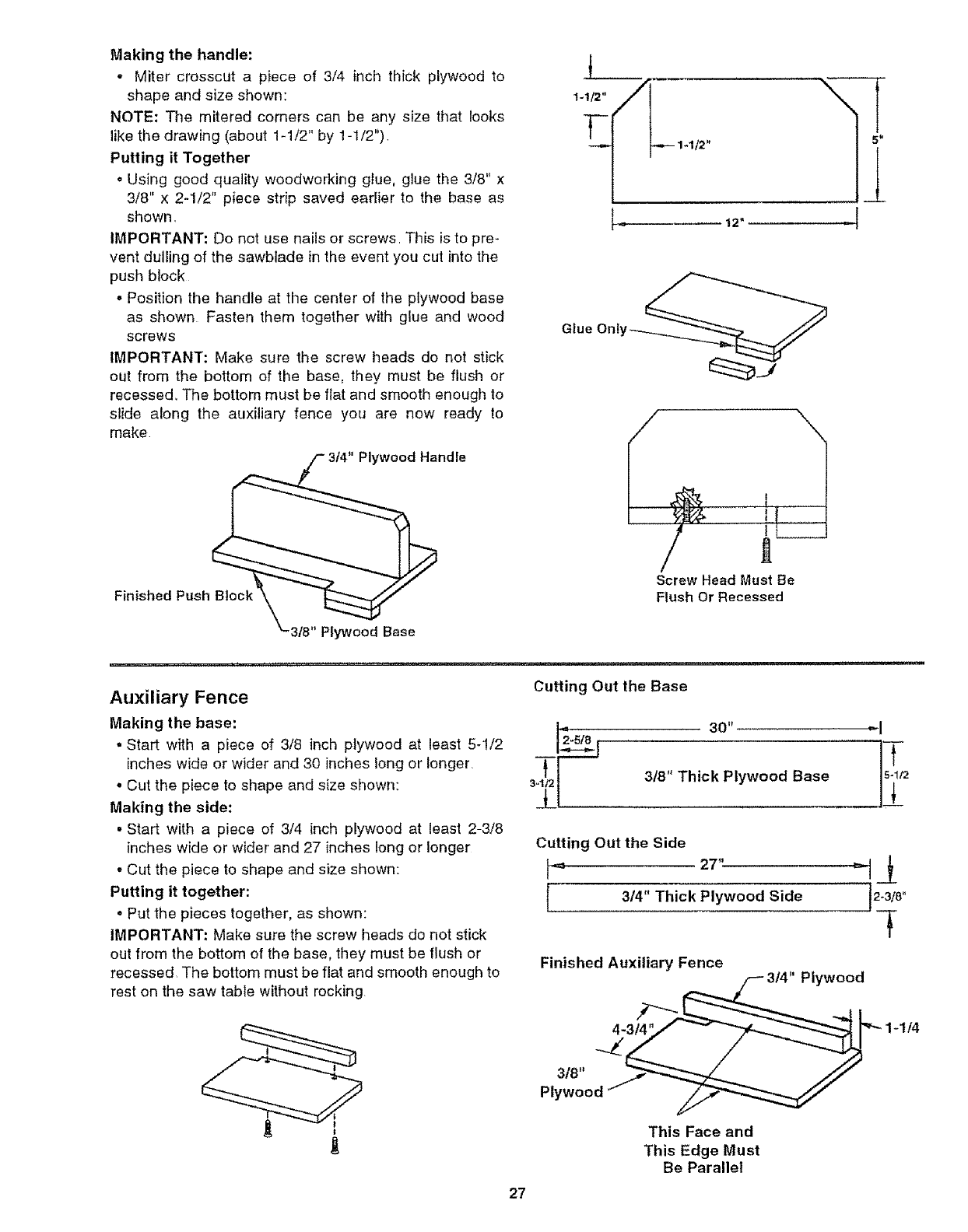

Making the handle:
- Miter crosscut a piece of 3/4 inch thick plywood to
shape and size shown:
NOTE: The mitered comers can be any size that looks
like the drawing (about 1-1/2" by 1-1/2"),
Putting it Together
Using good quality woodworking glue, glue the 3/8" x
3/8" × 2-1/2" piece strip saved earlier to the base as
shown,
IMPORTANT: Do not use nails or screws, This isto pre-
vent dulling of the sawbtade in the event you cut into the
push block
o Position the handle at the center of the plywood base
as shown Fasten them together with glue and wood
screws
IMPORTANT: Make sure the screw heads do not stick
out from the bottom of the base, they must be flush or
recessed,, The bottom must be flat and smooth enough to
slide along the auxiliary fence you are now ready to
make
Plywood Handle
Finished Push
1-1/2"_._/___
1-1/2"
-_ 12"
Glue Onty_
Screw Head Must Be
Flush Or Recessed
, ,_,.
5"
3/8" Plywood Base
Auxiliary Fence
Making the base:
° Start with a piece of 3/8 inch plywood at least 5-1/2
inches wide or wider and 30 inches long or longer,
o Cut the piece to shape and size shown:
Making the side:
° Start with a piece of 3/4 inch plywood at least 2-3/8
inches wide or wider and 27 inches long or longer
Cut the piece to shape and size shown:
Putting it together:
o Put the pieces together, as shown:
IMPORTANT: Make sure the screw heads do not stick
out from the bottom of the base, they must be flush or
recessed, The bottom must be flat and smooth enough to
rest on the saw table without rocking
Cutting Out the Base
30"
3E|-l!2r_L 3/8" Thick Plywood Base s /2
Cutting Out the Side
_'= Plywood27" _"_2_8
3/4" Thick Side "
Finished Auxiliary Fence
j_.1._.__._..___..." Plywood
L
This Face and
This Edge Must
Be Parallel
27
