4. Getting Started
The following sections provide step-by-step instructions on setting up a
MemoryFrame for the first time.
4.1 Unpacking a MemoryFrame
The MemoryFrame unit is wrapped in a cardboard shock-absorbent
holder. Remove the entire cardboard shock-absorbent holder from the
box, and unfold the cardboard so that it lies flat. Gently slide the
MemoryFrame from out of the “shrink-wrap” material.
4.2 Product Serial Number & Registration
Please record the model and serial number from the bar coded label
located on the rear of the MemoryFrame, as shown in Figure 1, for
reference. The serial number is required for Technical Support and
Product Registration.

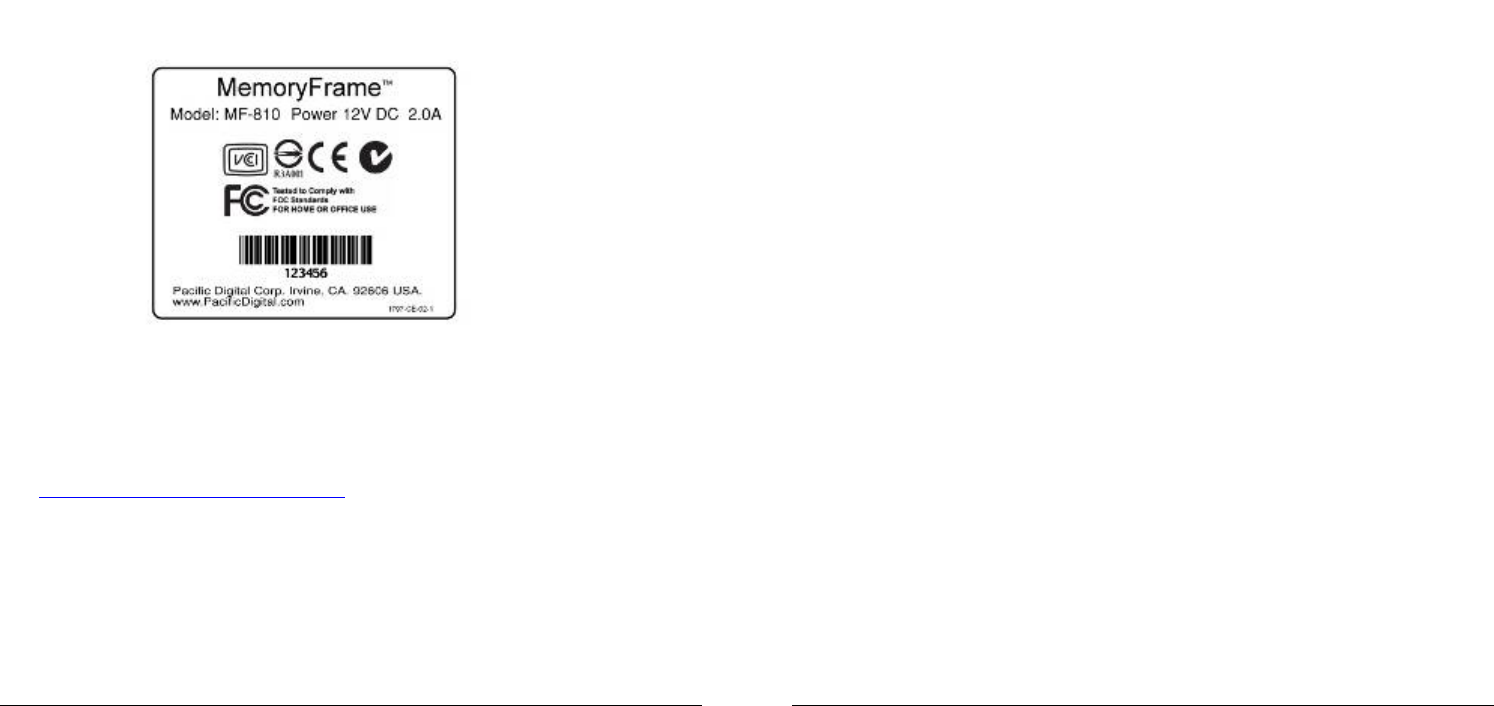

Figure 1 – Product Serial Number Label
In order to receive one year of free technical support, The MemoryFrame
must be registered. MemoryFrame can be registered online at:
http://www.dsicentral.com/register
or fill-out and mail the included mail-
in registration card.
4.3 Removing the Protective Cover from the LCD
The MemoryFrame ships with a protective plastic cover over the LCD
screen to prevent the screen from being scratched or damaged during
shipment. It is easy to remove, and reusable.
Copyright© 2006 Digital Spectrum Solutions, Inc. Page 51
8. When the slideshow begins after the boot, you can reconnect the USB
cable.
9. Transfer your desired pictures from either camera, USB thumb-drive,
card-reader, or PC
16. MemoryFrame Specifications
Screen Type/Size: Bright 10.4” Active Matrix TFT LCD
Camera Interface: USB 1.1 Host interface – USB Certified
# of images stored: 80 images max. Less with audio clips attached.
Image File Format: JPEG on Camera and USB storage peripheral.
JPEG, TIFF, PNG, GIF, and BMP on PC
Resolution: 800 x 600 (larger images are automatically scaled to
fit the screen)
Onboard Memory: 32MB RAM. 20MB Flash memory
PC Interface: USB 1.1 Target interface
Monitor Output: VGA D-sub 15 pin
Audio Jack: Stereo audio jack 3.5mm
Audio Format: WAV
AC Adapter: North America: 120 VAC, 60 Hz, 17w
Europe: 220-240 VAC, 50 Hz, 17w
Output = 12VDC @ 2.0A
Dimensions: 10 x 11.75 x 2 in
(254 x 298 x 51 mm) (w/h/d)
Weight/Mass: 62 oz. (1761g)
Environment: 32 – 85
0
F, 0-30
O
C,
30-80% RH (non-condensing)
