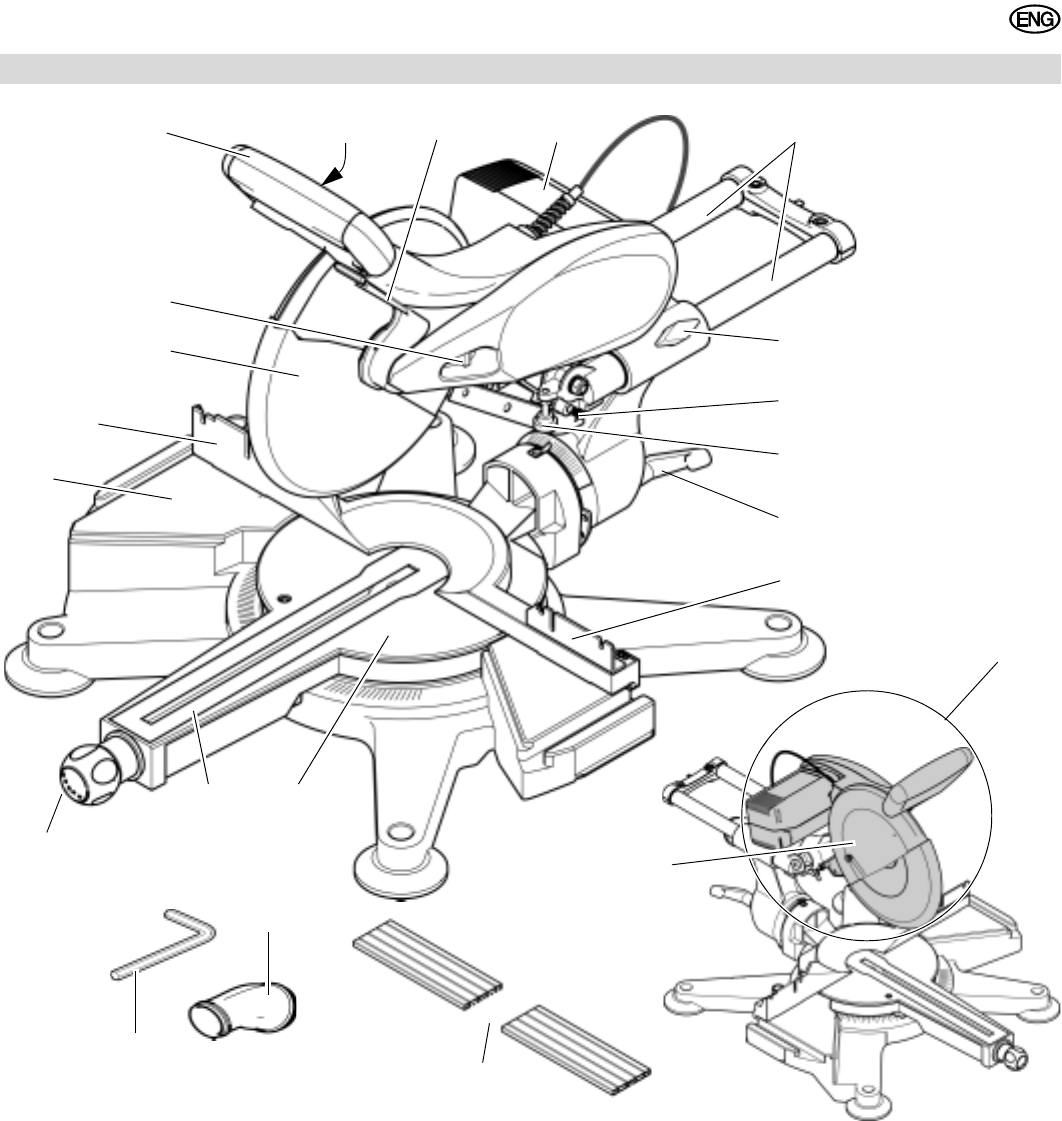

1. Components and Parts (base model; optional equipment not shown)
12 4 5
6
7
8
9
10
1112
13
15
16
17
18
20
22
3
14
19
21
1 Handle
2 ON/OFF switch
3 Holder for Allen wrench 6 mm
4 Motor
5 Track arm guide bars
6 Track arm lock screw
7 Transport lock
8 Cutting depth limiter
9 Sawhead tilt lock lever
10 Hinged fence
11 Rotating table
12 Table insert
13 Rotating table lock screw
14 Saw base
15 Fence
16 Retractable blade guard
17 Saw blade lock
18 Sawhead assembly
19 Flange guard
20 Dust spout adapter
(for connection of dust collector)
21 auxiliary fence
Tools
22 Allen wrench 6 mm;
use metric tools
only when
adjusting, repairing or maintain-
ing this machine
Machine documents
– Operating Instructions (with War-
ranty Terms and Conditions)
– Spare parts list
