Cisco ASR 903 Router Hardware Installation Guide
OL-25178-04
Chapter 3 Installing the Cisco ASR 903 Router
Installing the Chassis Ground Connection
Step 3 Using a crimping tool (as specified by the ground lug manufacturer), crimp the ground lug to the ground wire
as shown in Figure 3-10.

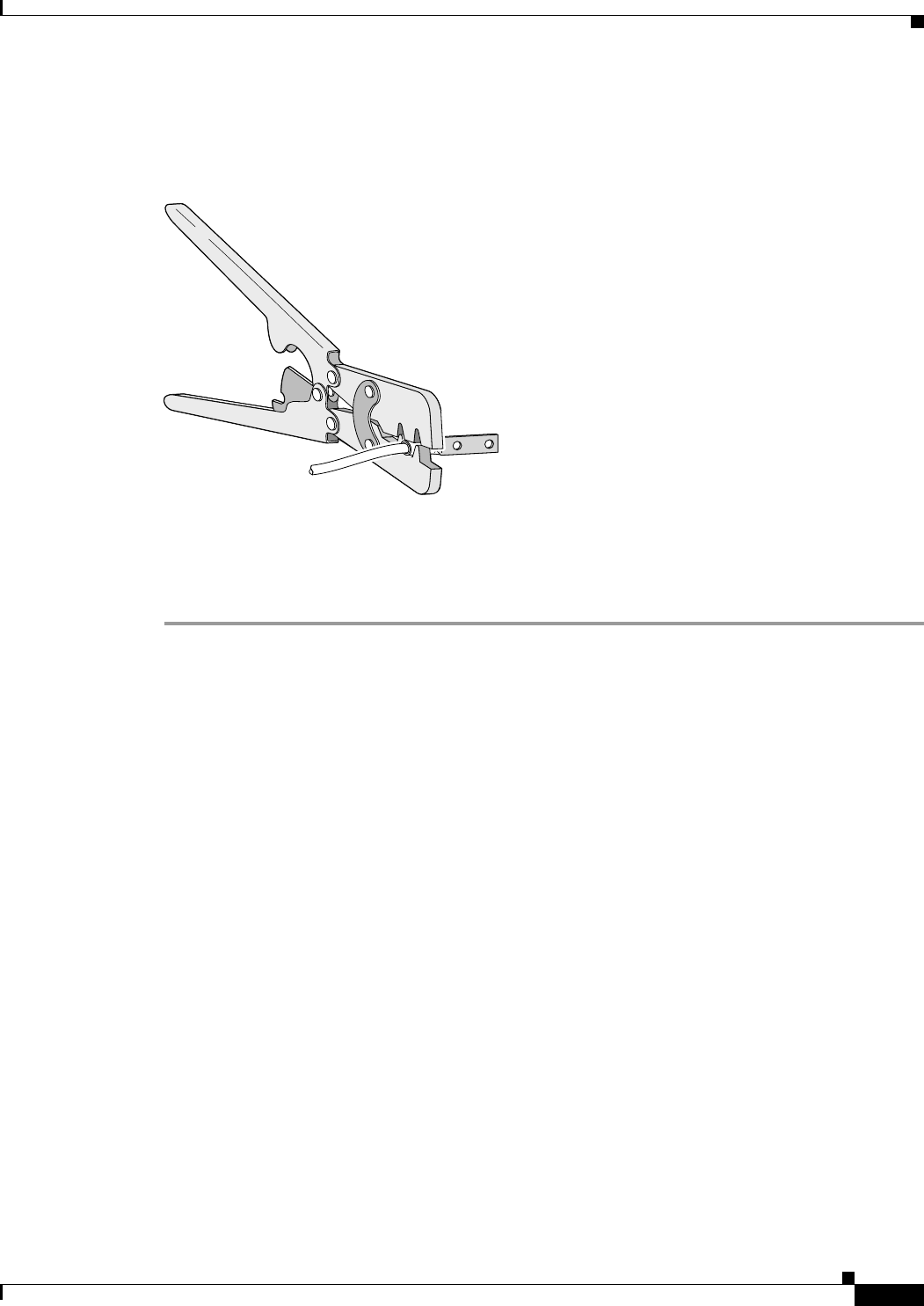

Figure 3-10 Crimping a Ground Lug onto the Ground Wire
Step 4 Use a Phillips head screwdriver to attach the 2-hole ground lug and wire assembly to the router with the
2 pan-head Phillips head screws. For a 19-inch EIA rack, attach the 2-hole ground lug to the rear of the
router.
Step 5 Connect the other end of the ground wire to a suitable grounding point at your site.
