3-34
Cisco ASR 903 Router Hardware Installation Guide
OL-25178-04
Chapter 3 Installing the Cisco ASR 903 Router
Connecting the Cisco ASR 903 Router to the Network
To connect a modem to the router, follow these steps:
Step 1 Connect the RJ45 end of the adapter cable to the black AUX port on the router, as shown in Figure 3-23.

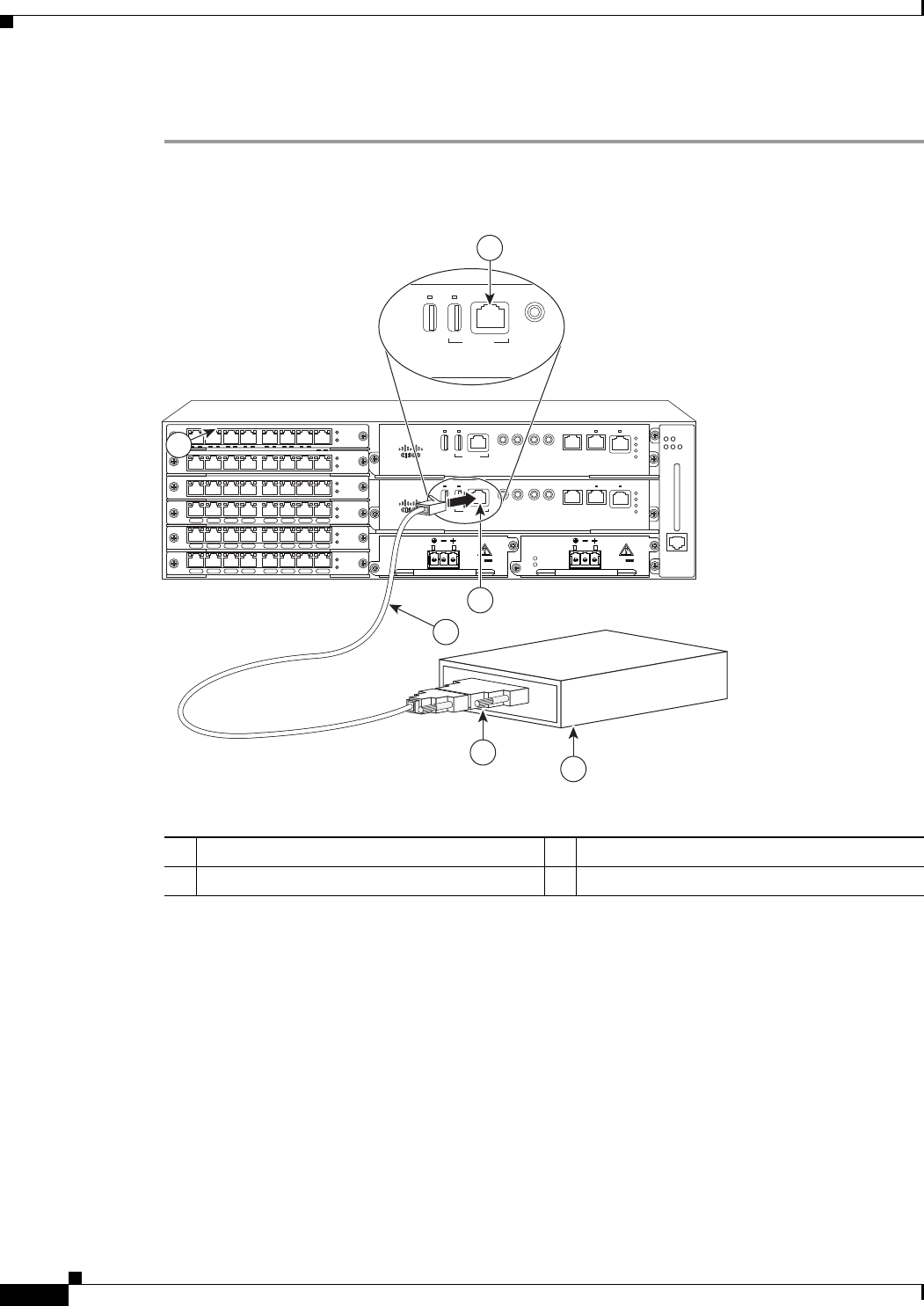

Figure 3-23 Connecting a Modem to the Cisco ASR 903 Router
Step 2
Connect the DB-9 end of the console cable to the DB-9 end of the modem adapter.
Step 3 Connect the DB-25 end of the modem adapter to the modem.
Step 4 Make sure that your modem and the router auxiliary port are configured for the same transmission speed
(up to 115200 bps is supported) and for mode control with data carrier detect (DCD) and data terminal
ready (DTR) operations.
1 RJ45 AUX port 3 RJ45 to DB-9
2 DB-9 to DB-25 adapter 4 Modem
GE-0 GE-1 GE-2 GE-3 GE-4 GE-5 GE-6 GE-7
PWR
STAT
GE-0 GE-1 GE-2 GE-3 GE-4 GE-5 GE-6 GE-7
PWR
STAT
GE-0 GE-1 GE-2 GE-3 GE-4 GE-5 GE-6 GE-7
PWR
STAT
PWR
STAT
L 0 S L 1 S L 2 S L 3 S L 4 S L 5 S L 6 S L 7 S
PWR
STAT
L 0 S L 1 S L 2 S L 3 S L 4 S L 5 S L 6 S L 7 S
PWR
STAT
L 0 S L 1 S L 2 S L 3 S L 4 S L 5 S L 6 S L 7 S
INPUT
OK
OUTPUT
FAIL
24V—60V 28A
INPUT
OK
OUTPUT
FAIL
24V—60V 28A
RUDY RSP
MEM TOD BITS MGMT
ENET
1PPS
IN
1PPS
OUT
1OMHZ
OUT
1OMHZ
IN
CONSOLE
SYNC
ACT
PWR
STAT
RUDY RSP
MEM TOD BITS MGMT
ENET
1PPS
IN
1PPS
OUT
1OMHZ
OUT
1OMHZ
IN
CONSOLE
SYNC
ACT
PWR
STAT
ALARM
FAN TEMP
CRIT MAJ MIN
282405
2
3
4
1
1
MEM
1PPS
IN
CONSOLE
1
