Section 4
Start–Up and Operation
Start–Up and Operation 4–1MN735
Keypad Description

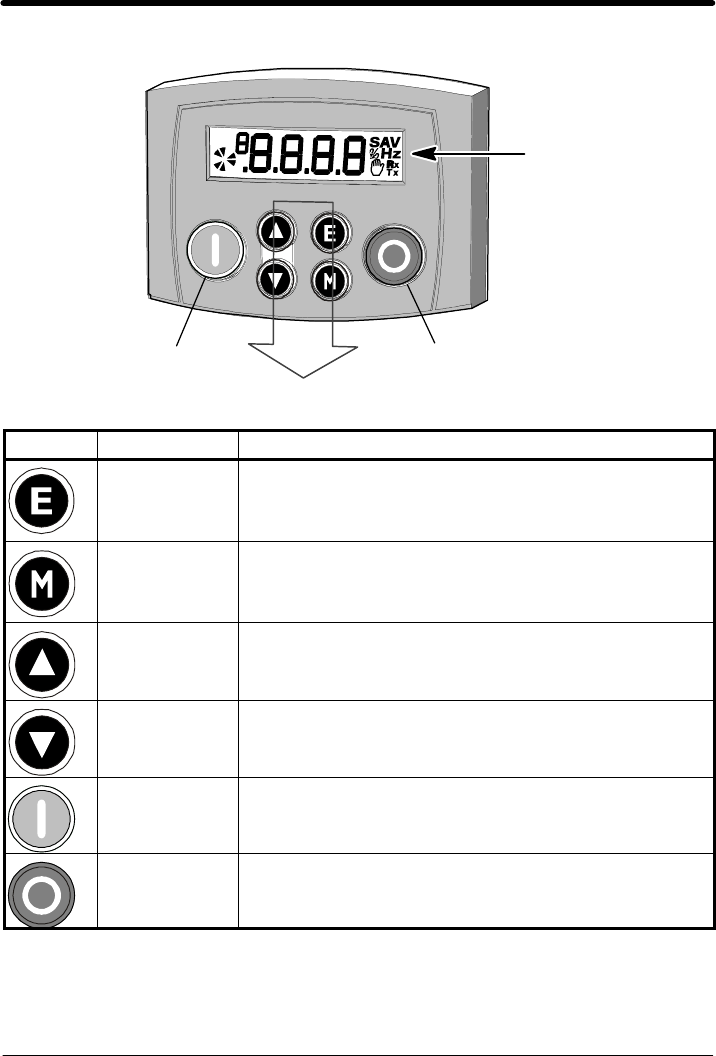

Figure 4-1 Keypad Description
Programming Keys
Local
Run
Display
Local
Stop
Key Operation Description
Escape Navigation – Displays the previous level’s menu
Parameter – Returns to the parameter list
Trip Acknowledge – Acknowledges displayed Trip or Error
message
Menu Navigation – Displays the next menu level, or the first parameter
of the current Menu
Parameter – Moves cursor to the left when the parameter is
adjustable
Increment Navigation – Move upwards through the menu system
Parameter – Increase value of the displayed parameter
Local Mode – Increase value of the local setpoint
Decrement Navigation – Move down through the menu system
Parameter – Decrease value of the displayed parameter
Local Mode – Decrease value of the local setpoint
Run Local Mode – Run the drive
Stop Local Mode – Stops the drive. Trip Reset in all modes
Navigation – Press and hold to toggle between Local and
Remote Control modes (refer to Special Menu Features)
The keypad provides local control and monitoring of the Inverter. Remove
it by simply pulling it from the drive. To install it, push it back into place.
