4–10 Start–Up and Operation MN735

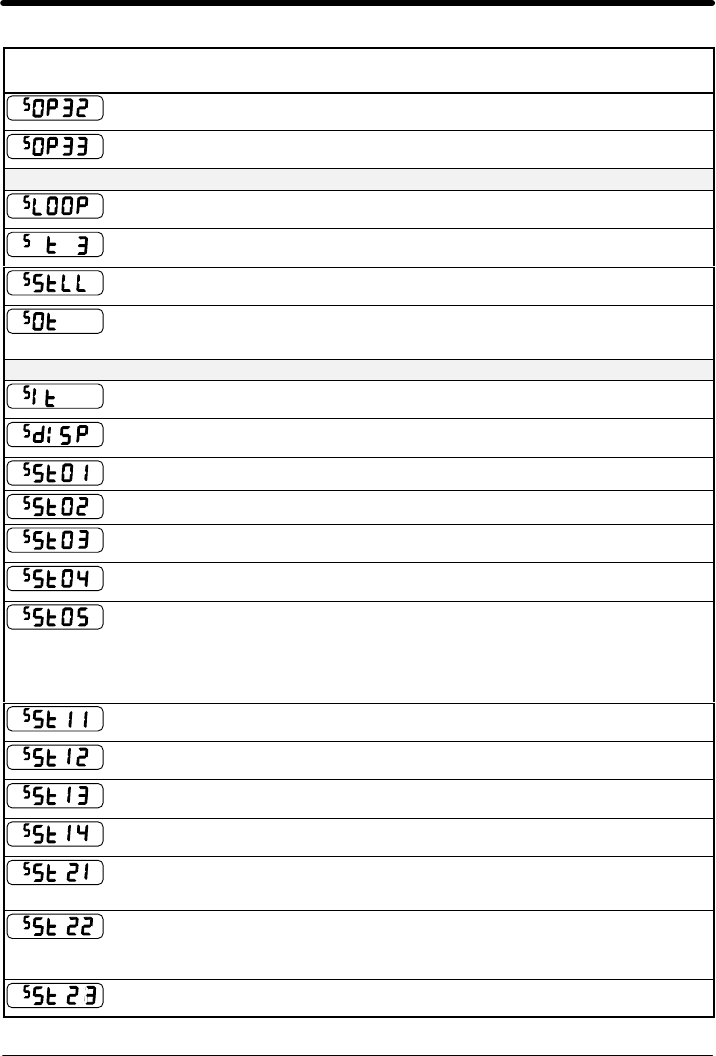

Table 4-1 Parameter Definitions Continued
Display Parameter Description Range Factory
Setting
RELAY INVERT True =Inverts the input signal. 0= False
1= True
0
RELAY VALUE
~
The output signal that represents the OP31
choice.
0= False
1= True
0
SET::TRIP Menu
DISABLE LOOP Disables LOST I LOOP trip (4-20mA) 0= Trip Enabled
1= Trip Disabled
1
AIN2
OVERLOAD
Disables the overload trip (Terminal 3) 0= Trip Enabled
1= Trip Disabled
0
DISABLE
STALL
Disables STALL trip 0= Trip Enabled
1= Trip Disabled
0
DISABLE
MOTOR
OVERTEMP
Disables the motor thermistor trip 0= Trip Enabled
1= Trip Disabled
0
SET::SETP Menu
Inverse Time Disables the inverse time trip 0= Trip Enabled
1= Trip Disabled
1
Display
(Keypad)
Disables the display (keypad) trip 0= Trip Enabled
1= Trip Disabled
0
Jog Accel Time As
P
4, for Jog 0.0 to 3000.0s 1.0
Jog Decel Time As
P
5, for Jog 0.0 to 3000.0s 1.0
Ramp Type Selects the ramp type 0=LINEAR
1=S
0
S Ramp Jerk Rate of change of acceleration of the curve in
units per second
3
0.01 to 100.00s
3
10.00s
3
S Ramp
Continuous
When True and the S Ramp is selected, forces
a smooth transition if the speed setpoint is
changed when ramping. The curve is controlled
by the S Ramp Jerk parameter.
When False, there is an immediate transition
from the old curve to the new curve
0=FALSE
1=TRUE
1
Skip
Frequency 1
The center frequency of skip band 1 in Hz 0.0 to 240.0 Hz 0.0
Skip Frequency
Band 1
The width of skip band 1 in Hz 0.0 to 60.0 Hz 0.0
Skip
Frequency 2
The center frequency of skip band 2 in Hz 0.0 to 240.0 Hz 0.0
Skip Frequency
Band 2
The width of skip band 2 in Hz 0.0 to 60.0 Hz 0.0
Auto Restart
Attempts
Determines the number of restarts that will be
permitted before requiring an external fault
reset
0 to 10 0
Auto Restart
Delay
The delay between restart attempts for a trip
included in Auto Restart Triggers and Auto
Restart Triggers+. The delay is measured from
all error conditions clearing
0.0 to 600.0 s 10.0s
Auto Restart
Triggers
Allows Auto Restart to be enabled for a
selection of trip conditions. Refer to Section 5
0x0000 to 0xFFFF 0x0000
