Cisco ASA 5500-X Series Hardware Installation Guide
Chapter 4 Maintenance and Upgrade Procedures for the ASA 5500-X
Removing and Installing the Power Supply

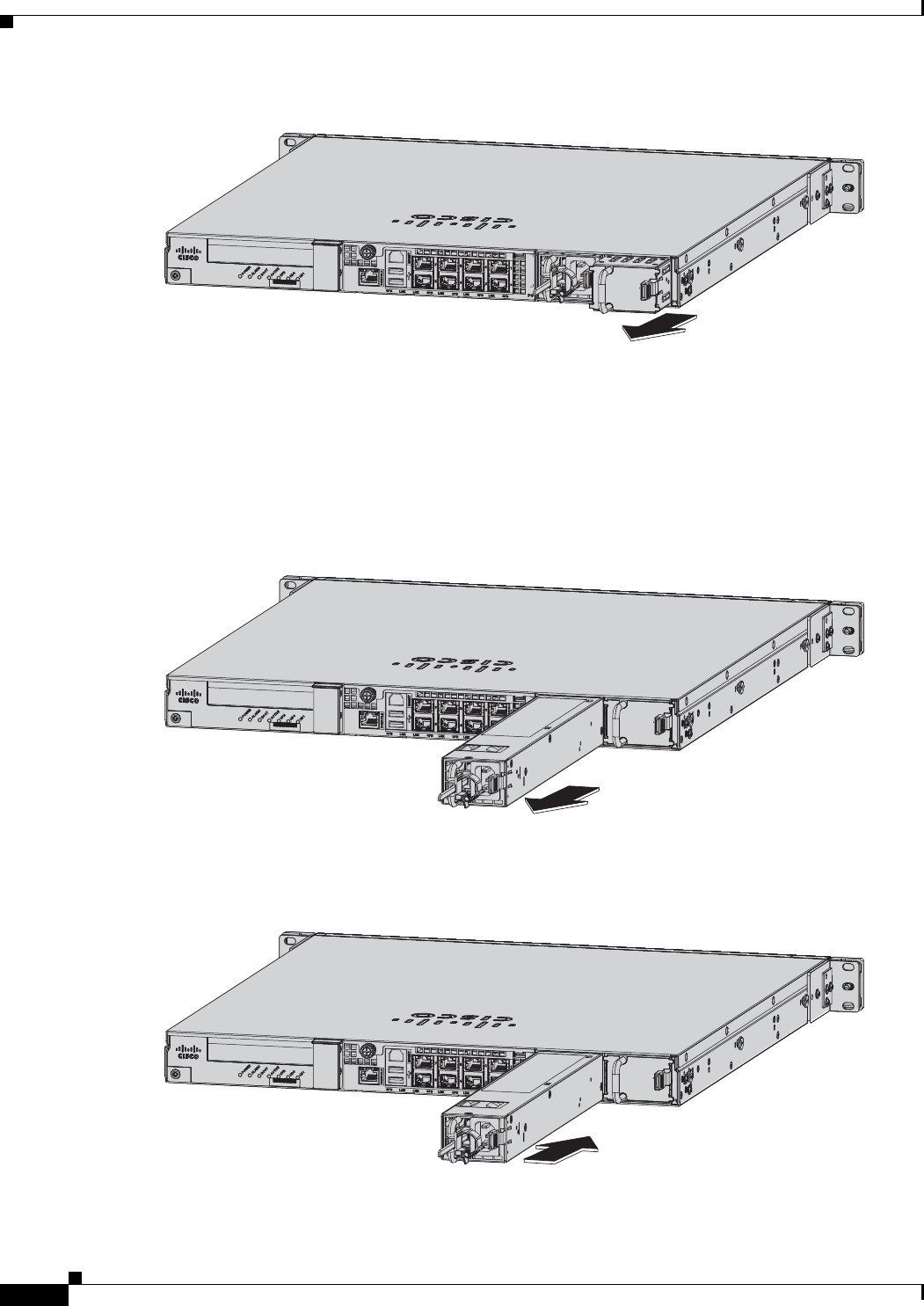

Figure 4-16 Removing the Slot Cover
Step 2 If you are replacing a power supply, follow these steps:
a. Power off the appliance.
b. From the back panel of the appliance, unplug the power supply cable.
c. Push the lever on the power supply to the left and remove the power supply by grasping the handle
and then pulling the power supply away from the chassis while supporting it from beneath with the
other hand. (See Figure 4-17.) Continue with Step 3.
Figure 4-17 Removing the AC Power Supply
Step 3
Install the new power supply by aligning it with the power supply bay and pushing it into place until it
is seated while supporting it from beneath with the other hand. (See Figure 4-18.)
Figure 4-18 Installing the AC Power Supply
