Assembly
'< .C<61 =<@@6/92 6;7B?F
1
6@0<;;20A =9B4 3?<: =<D2?
@<B?02 /23<?2 =2?3<?:6;4 .;F .@@2:/9F
.17B@A:2;A@<??2=.6?@
!<C6;4B.?1@@2:/9F

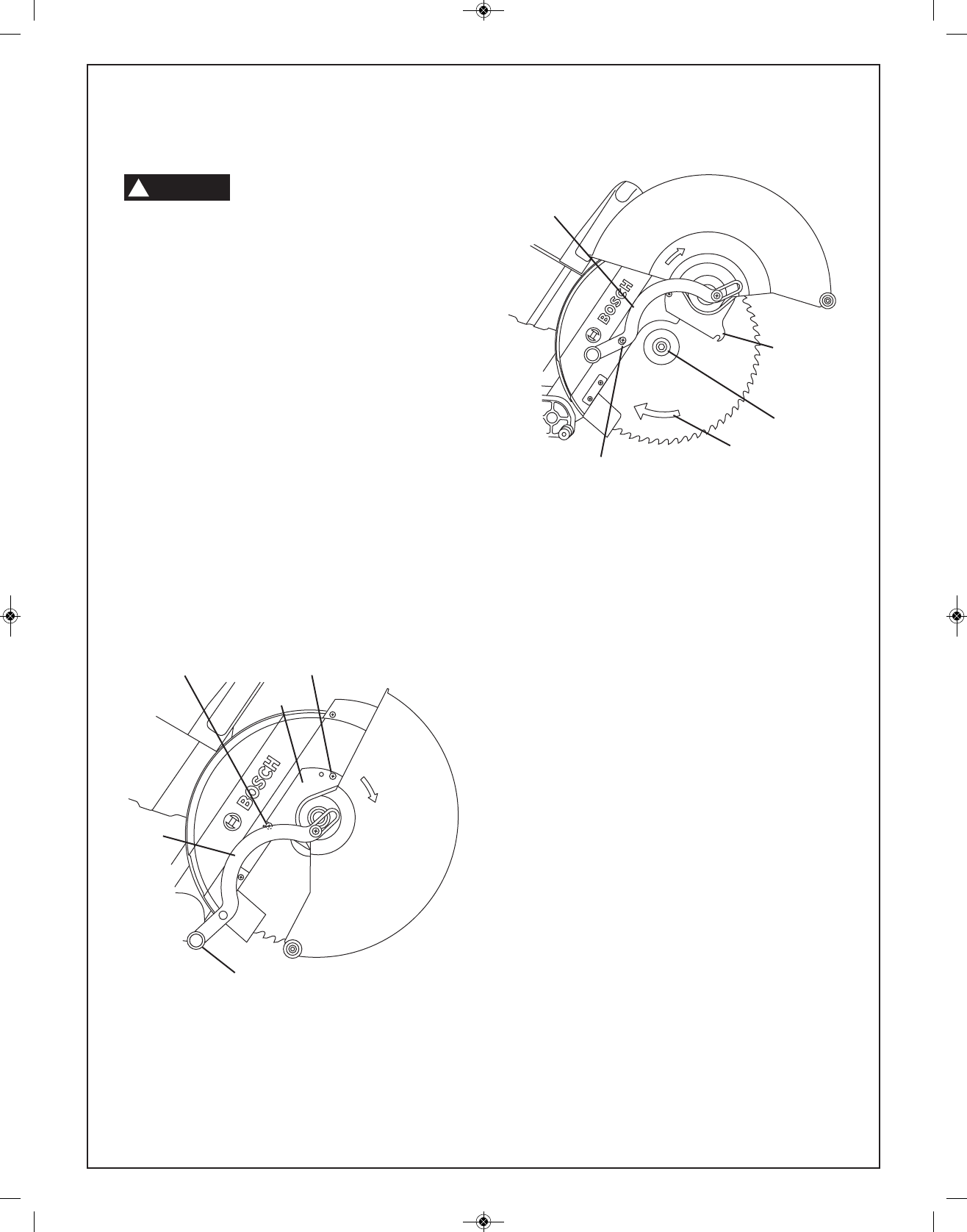

1. Position the saw in the UP position and at 0°
bevel. If in the DOWN position, press down
slightly on the saw head assembly and pull out
the head assembly lock pin (item 43, page 9); then
allow the saw head to come up (see Figure 3).
2. Unscrew the link knob (item 28, page 9) by hand
from the pivot post and allow the link assembly to
hang. The link knob will stay on the link.
3. Loosen front cover plate screw two turns using the
6/4mm hex key. Do not remove screw. A 4mm hex
key may be used as an alternate.
4. Loosen rear plate screw six full turns using the
6/4mm hex key. Do not remove screw.
5. Slide the cover plate down and out from the rear
screw. Rotate the cover plate and lower guard
counterclockwise around the front screw. While
holding the lower guard up against the upper
guard, move the link so its round hole can go over
the rear screw – let go and the lower guard assem -
bly will be held out of the way (see Figure 4).
64B?2
64B?2
%2:<C6;49.12
1. Press and hold the arbor lock (red button on
opposite side of upper guard – item 42, page 9).
Rotate the blade slowly while pressing the arbor
lock until it fully seats into its lock position.
2. Using the 6/4mm hex key, loosen the blade bolt by
firmly turning it 09<08D6@2. NOTE: This bolt has
left-hand threads.
3. Remove the blade bolt and outer washer. Carefully
grab the blade. Slide the blade away from the inner
washer and off the arbor shaft, then down and
away from the saw. Leave the inner washer on the
arbor shaft (see Figure 5).
Guard Link
Rear Cover Plate Screw
Cover Plate
Blade Bolt
Blade Rotation
Arrow
Front Cover Plate Screw
Knob
Rear Cover Plate Screw
Link
Cover
Plate
*%""
!
%2:<C6;4.;1;@A.996;49.12@
