ERX 8.0.x Hardware Guide
Adding New SODIMMs
To add new SODIMMs:
1. Locate the four SODIMM sockets on the SRP module. (See Figure 38 and
Figure 39.) Se
e the previous section to learn how to remove SODIMMs.

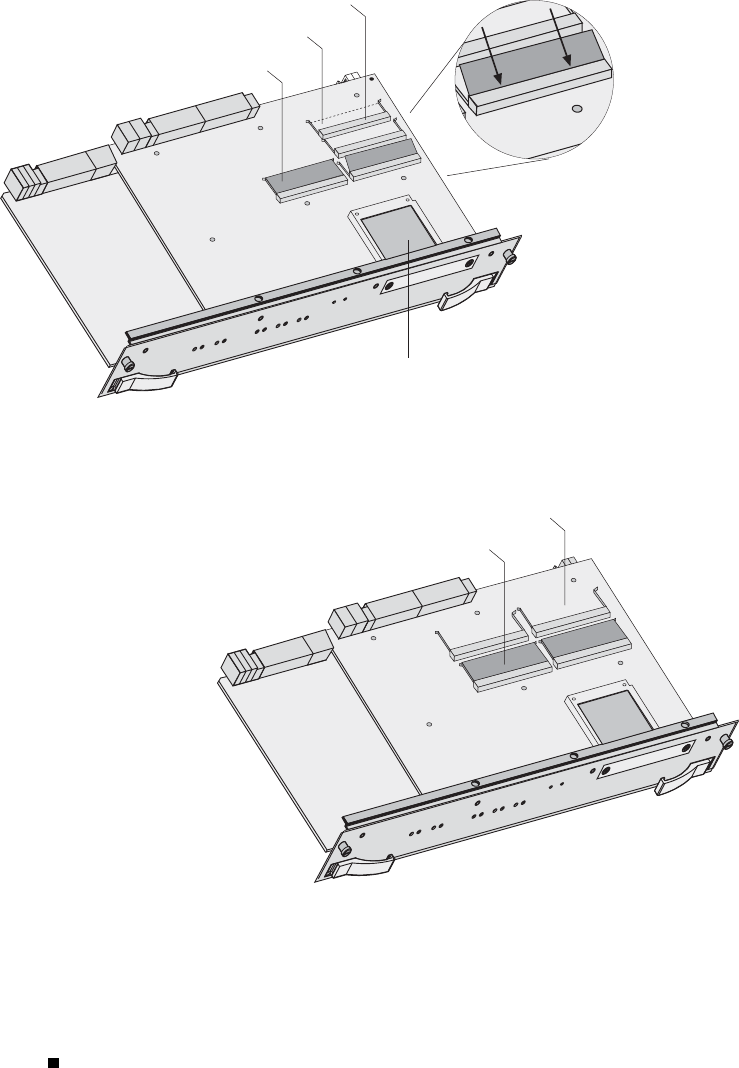

Figure 38: SODIMM Sockets on the SRP-5 and SRP-10 Module
SODIMM
Cream ceramic connector
Empty SODIMM socket
NVS card
3. Push down on back edge
of SODIMM until it snaps
into socket.
2. Push SODIMM into
connector at an angle of
approximately 45 degrees.
1. Align notches in
SODIMM and connector.
g013451
Figure 39: SODIMM Sockets on the SRP-40 Module
SODIMM
Empty SODIMM socket
g013452
92 Upgrading Memory on SRP Modules
