11.. . APPENDIX A: MASTER ICON REFERENCE
USING THE OMP-MODL 11-89

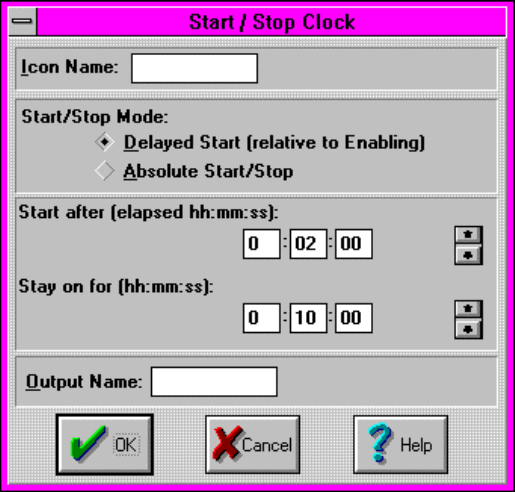

ICON CONFIGURATION DIALOG BOX (DELAYED START/STOP MODE):
CONFIGURATION OPTIONS (ABSOLUTE START/STOP MODE):
Icon Name:Specify the label for the icon. This name will show directly under the icon
within the Program Net.
Absolute Start / Stop or Delayed Start Mode: Specifies the mode of operation. The
time setting boxes will change accordingly.
Start After (elapsed HH:MM:SS): A text box is provided for User entry of
the time to delay before starting (turning the Output True).
Stay ON for: A text box is provided for User entry of the time to leave
the Output True.
Output Name: Specify a name for the Output signal from this icon. This Output
Name will be referenced by other icons downstream in the Program Net.
