11.. . APPENDIX A: MASTER ICON REFERENCE
USING THE OMP-MODL 11-95
GLOBAL FUNCTION ICON
The Global icon provides for User specification of various OMP-MODL system settings
that may be used during the execution of a Program Net. No Input or Output terminals
are available on the icon.
INPUTS:
Data/Logic Signal: None.
Enable: None. Icon is always enabled.
OUTPUTS:
Output Signal: None

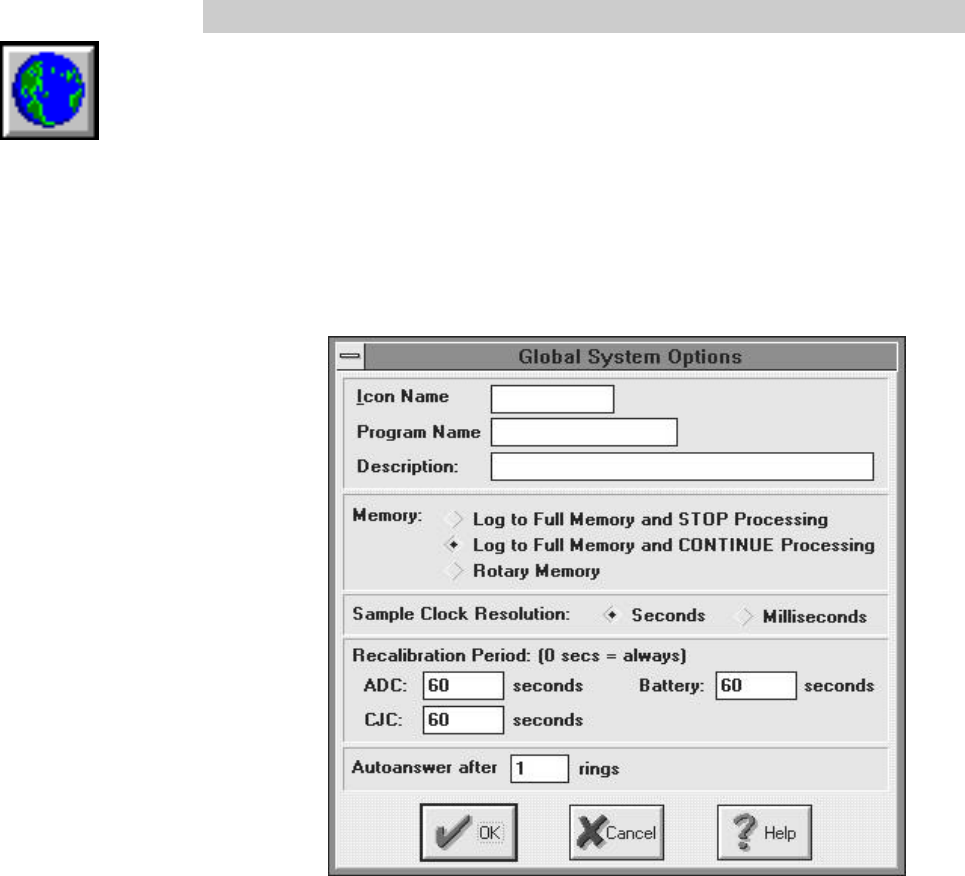

ICON CONFIGURATION DIALOG BOX:
CONFIGURATION OPTIONS:
Icon Name: Specify a label for the icon. This label will appear directly below
the icon. A suggested use for this name is to enter the filename for the
Program Net... allowing for quick future reference.
Program Name: A short (16 characters maximum) Program Net name can be
entered via this text box. This name can be accessed on the OMP-MODL
front panel LCD as well as through a Status Query serial communication
command.
Program Description: A short (32 characters maximum) Program Net
description can be entered via this text box. This name can be accessed on
the OMP-MODL front panel LCD as well as through a Status Query serial
communication command.
