1 – 3
1.2 Parts Names and Functions

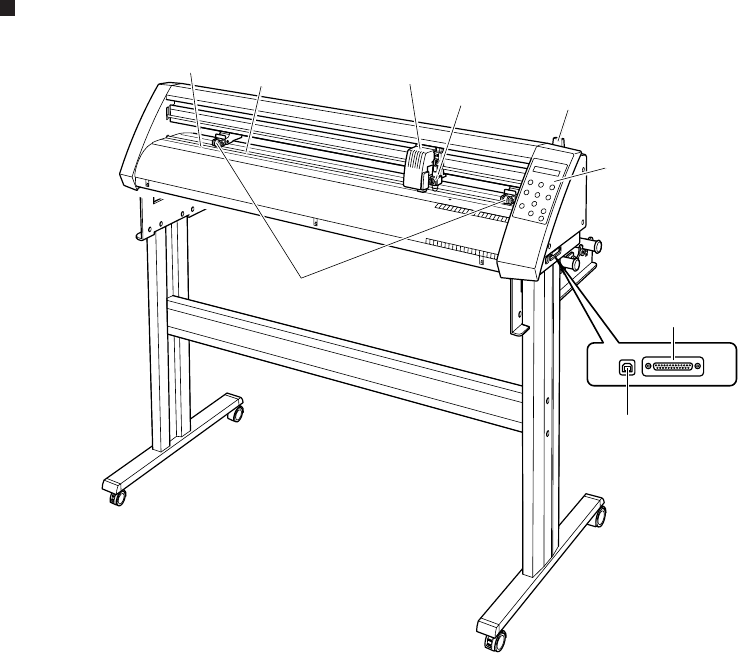

Front View
Cutting mat ; Cutting or plotting is performed on this mat.
Grit roller ; Feeds the medium backward or forward
Push rollers ; Pushes the medium against the grit rollers
Pen carriage ; Moves the cutter pen to the left and right
Pen holder ; Holds the cutter pen and moves it up and down
Media set lever ; Raises or lowers the push rollers during loading of a medium
Control panel ; Used to operate the cutting plotter and set functions
USB interface connector ; Used to connect a USB cable
Serial (RS-232C) interface connector ; Used to connect an RS-232C serial interface cable
Media set lever
Pen holder
Pen carriage
Grit roller
Cutting mat
Push rollers
USB interface
connector
Serial (RS-232C)
interface connector
Control panel
