If “inch” is the unit displayed, select from among “OFF,” “0.25,” “0.5,” “0.75,” “1.0,” “1.5” and “STD.”
Press the (PAUSE) key to cancel PAUSE mode.
If the registration-mark origin point is not set, it will be positioned as shown in the figures below. This func-
tion should be set when it is required to move the origin point from this position.
Press the (PAUSE) key to switch to PAUSE mode.
Press the (NEXT) or (PREV.) key until the following menu is displayed.
Press the (ENTER) key to display the Auto Reg. Mark submenu, and then
press the (NEXT) or (PREV.) key until the following menu is displayed.
Press the (ENTER) key to display the X-axis registration-mark origin input set-
ting.
Use the or key to move the cursor to the digit to be entered, use the or
key to increase or decrease the values (or display/don’t display “-” for the
space to the right of “=”), and then press the (ENTER) key to confirm. The Y-
axis origin input setting is then displayed and should be set in the same way. To
cancel the selection(s), press the (NEXT) or (PREV.) key.
Step
6

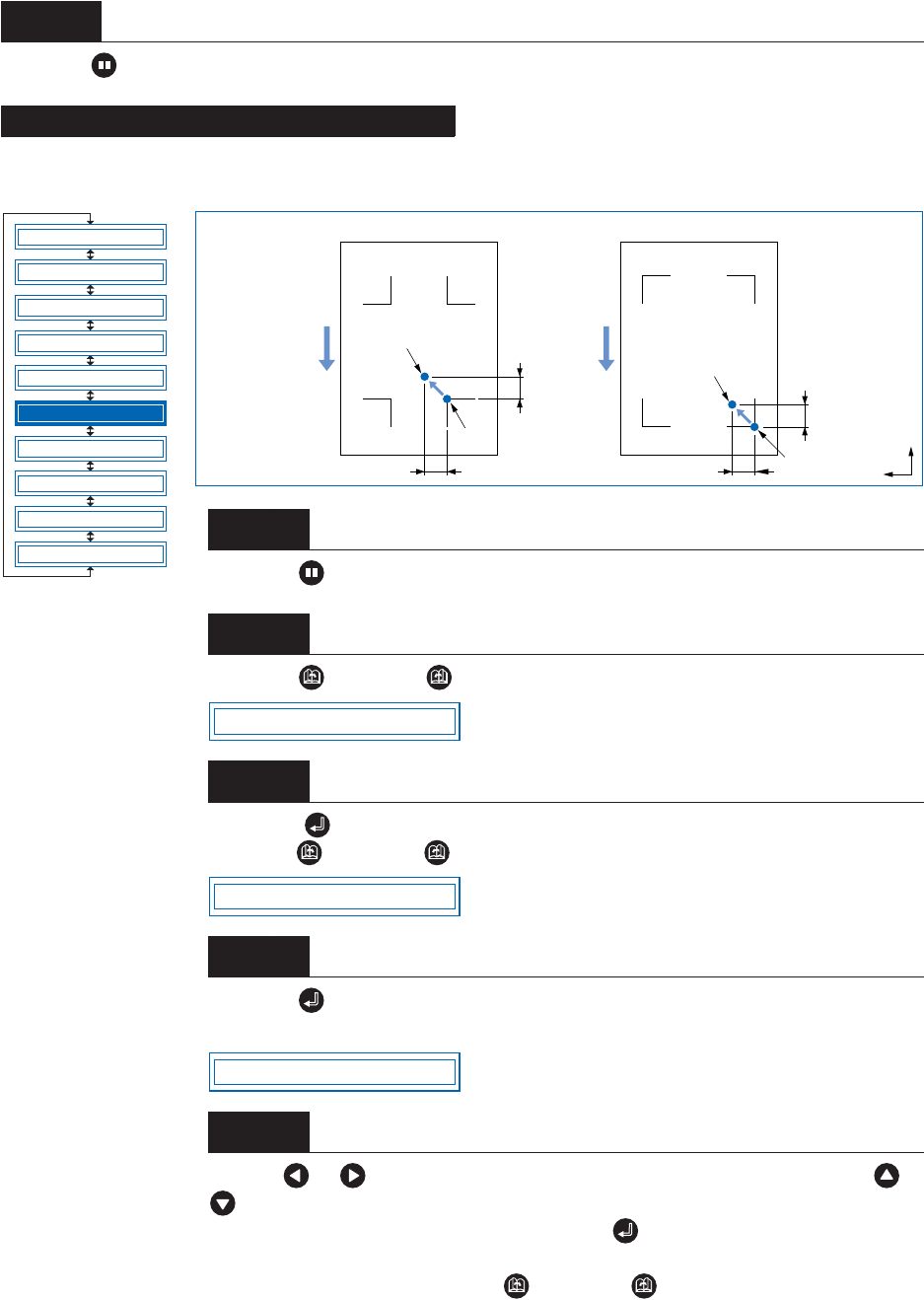

Setting the Registration-Mark Origin Point
Step
1
Step
2
Step
3
Step
4
Step
5
MARK MODE
MARK POSITION
MARK TYPE
MARK SIZE
MARK DIST. ADJ.
MARK OFFSET
MARK SENSOR ADJ1
MARK SENSOR ADJ2
MARK AUTO SCAN
MARK SENSOR ADJ
Registration-mark pattern 1
Medium feed direction
Registration-mark pattern 2
Origin
New origin
position
Origin
X
Y
New origin
position
X
Y
X
Y
AUTO REG. MARK
MARK OFFSET
OFST X= 000.0
