4.24 Setting the OFFSET ANGLE
This function sets the reference value used to adjust the cutter-blade offset angle to correspond to the dis-
placement of the traveling angle as defined by the coordinate movement data received. The cutter blade is
controlled above the angle specified. Setting a high value will reduce the total cutting time, but the corners
of drawings cut will become rounded and may not be cut precisely. The initial setting is “30.”

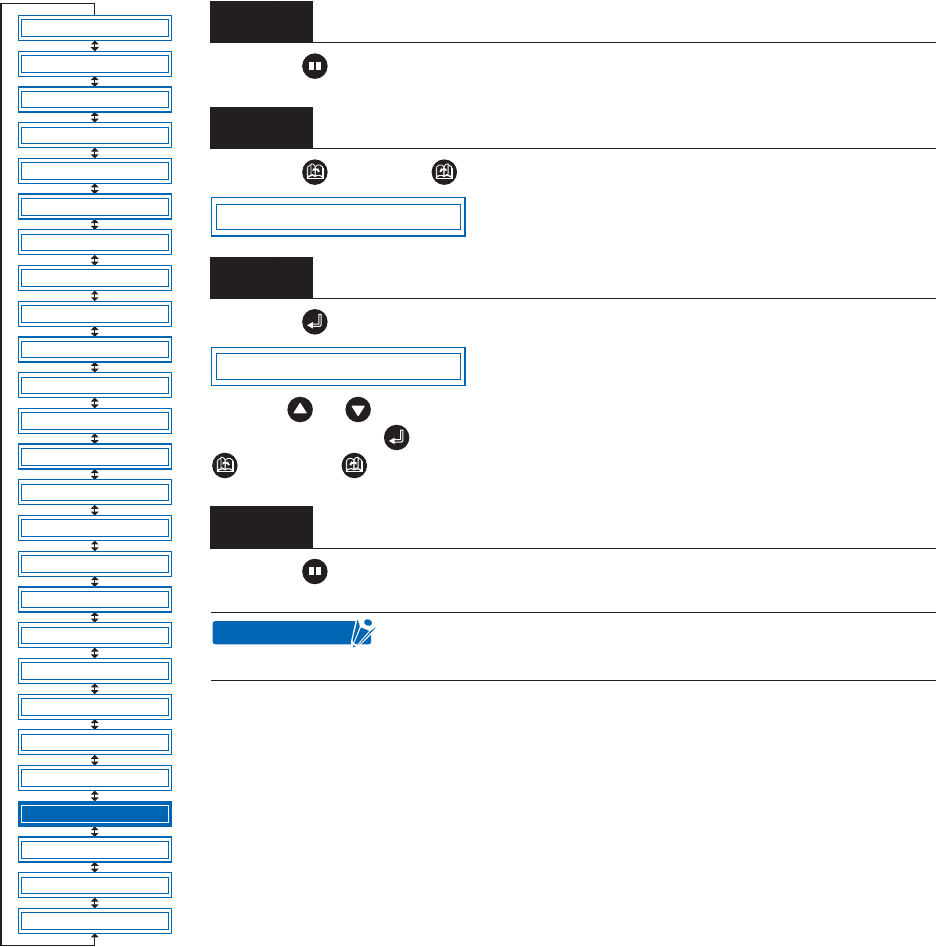

Press the (PAUSE) key to switch to PAUSE mode.
Press the (NEXT) or (PREV.) key until the following menu is displayed.
Press the (ENTER) key to display the offset-angle setting menu.
Use the or key to select the required value within the range of “0” to “60,
and then press the (ENTER) key to confirm. To cancel the selection, press the
(NEXT) or (PREV.) key.
Press the (PAUSE) key to cancel PAUSE mode.
Step
1
Step
2
Step
3
Step
4
This setting is retained in the internal memory even when
the power is turned off.
