4 – 30

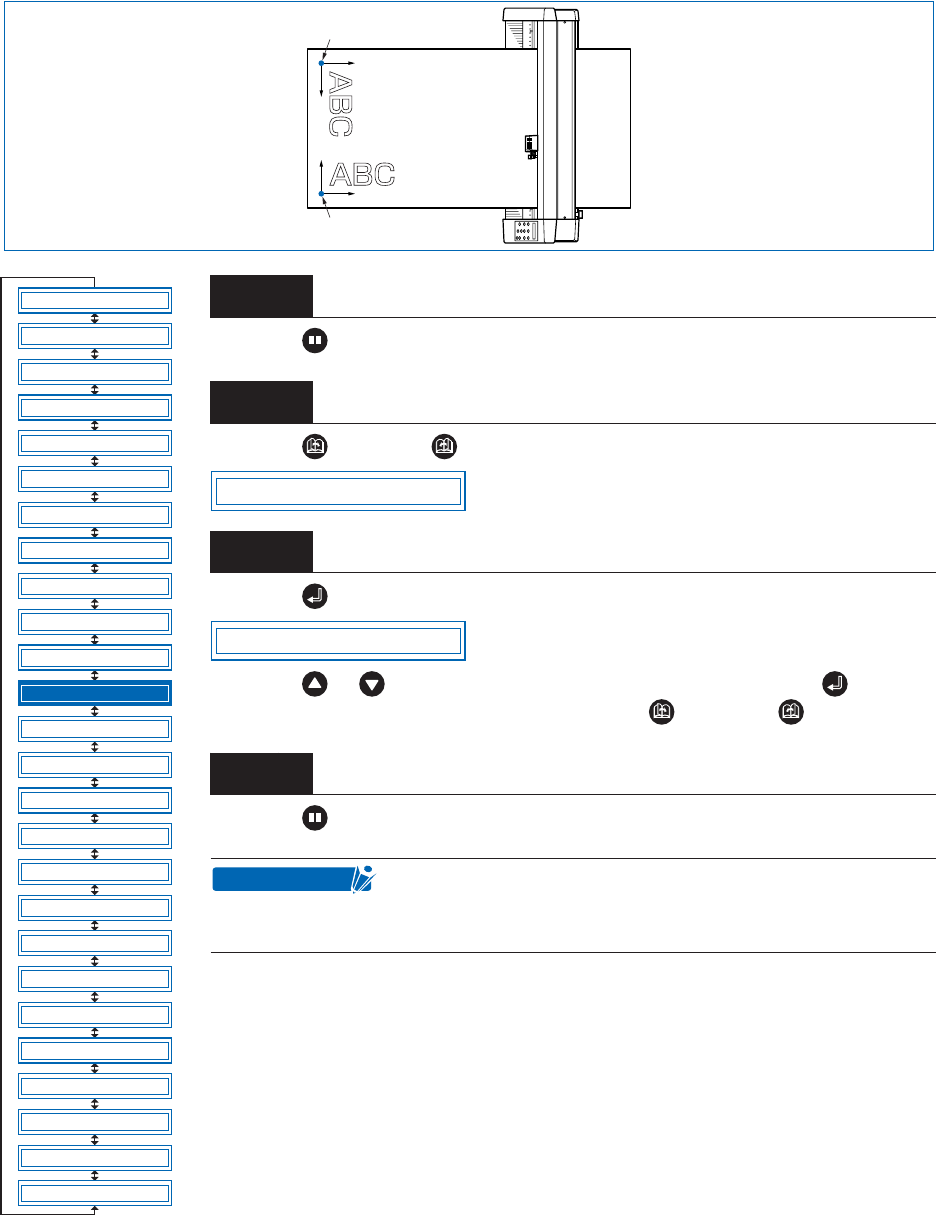

4.13 Rotating the Coordinate Axes
This function allows the cutting/plotting origin and coordinate axes to be rotated as shown below.
Press the (PAUSE) key to switch to PAUSE mode.
Press the (NEXT) or (PREV.) key until the following menu is displayed.
Press the (ENTER) key to display the coordinate-axis rotation-setting menu.
Press the or key to select “ON” or “OFF, and then press the (ENTER)
key to confirm. To cancel the selection, press the (NEXT) or (PREV.) key.
Press the (PAUSE) key to cancel PAUSE mode.
Step
1
Step
2
Step
3
Step
4
This setting is retained in the memory even when the power
is turned off.
When ON is selected for ROTATE, MIRROR is set to OFF.
New origin
When axis-
coordinate rotation
is “off”
When axis-coordinate
rotation is “on”
Origin
FEED
MOVE TO R. MARK
AUTO PRE FEED
TANGENTIAL
AUTO REG. MARK
CLEAR BUFFER
AXIS ALIGNMENT
DISTANCE ADJUST
PAGE LENGTH
PLOT AREA
EXPAND
ROTATE
MIRROR
COPY
SORT
RS-232C
COMMAND
BLADE WEAR SETUP
PEN UP/DOWN
TEST MODE
PEN UP SPEED
OFFSET FORCE
OFFSET ANGLE
STEP PASS
INIT. DOWN FORCE
LENGTH UNIT
ROTATE
ROTATE OFF
CHECKPOINT
