2 – 12

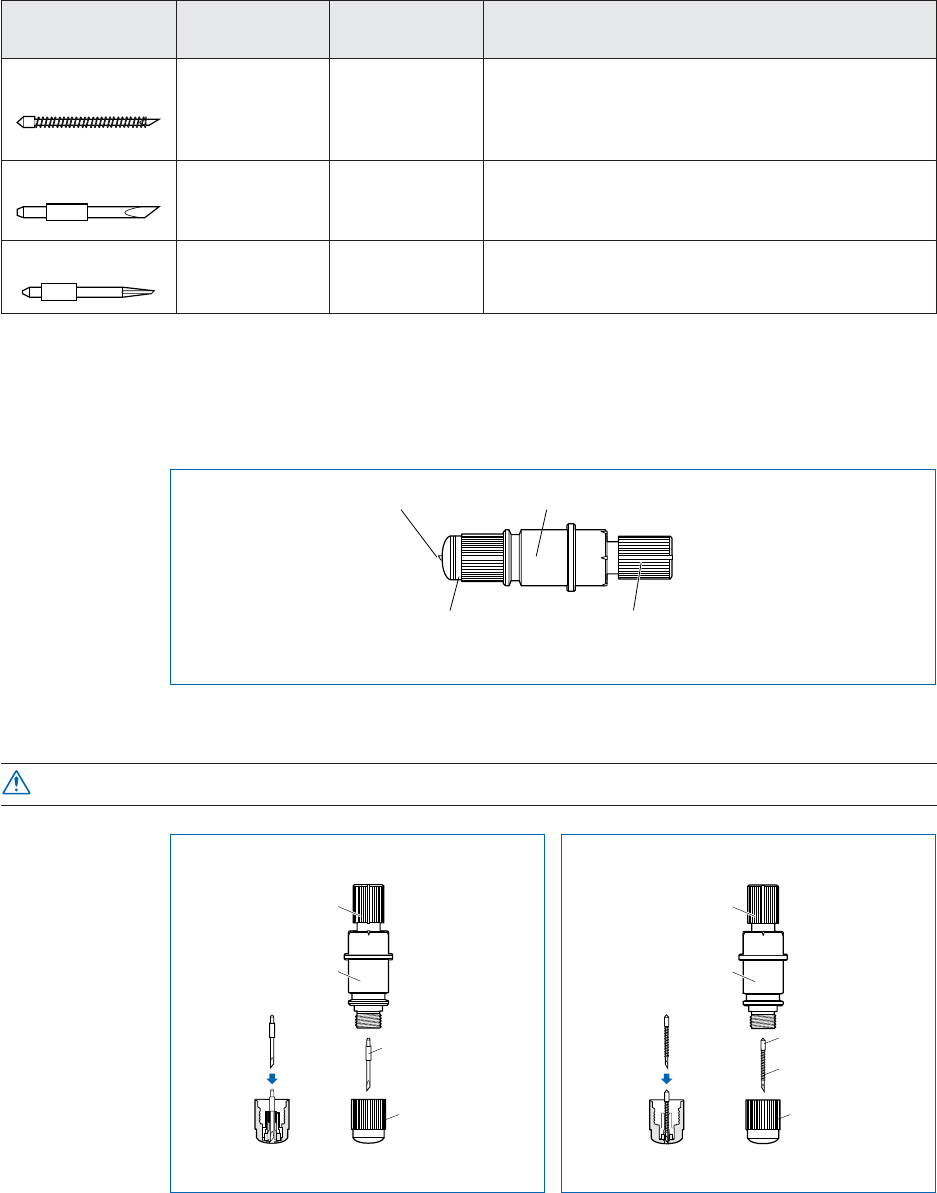

■ Types and Features of Cutter Blades
■ Cutter-Pen Construction
The cutting plotter cuts using a cutter blade mounted in a cutter-pen plunger. There are two different cutter-
pen plungers to suit the diameter of the cutter blade to be mounted (the 0.9-mm cutter-pen plunger is pro-
vided as standard equipment). Be sure to mount the cutter blade in the corresponding cutter-pen plunger.
■ Replacing the Cutter Blade
Part No. and
profile
Blade diameter
and offset
Compatible
plunger
Use and features
CB 09UA ø0.9 mm
0.45
PHP32-CB09N The standard blade for cutting color adhesive-
backed media. Suitable for cutting media up to 0.25
mm in thickness.
Max. cutting distance: Approx. 4,000 m
CB 15U ø1.5 mm
0.75
PHP32-CB15N Capable of cutting thicker media than possible with
the CB09UA blade. Suitable for cutting media 0.25
mm to 0.5 mm in thickness.
CB 15UB ø1.5 mm
0.15
PHP32-CB15N Suitable for detailed cutting (e.g., letters less than 10
mm in size) of media up to 0.25 mm in thickness.
To prevent cutting your fingers, always handle the cutter blade with caution.
Cutter blade
Plunger cap
Plunger
Blade-length adjustment knob
(Blue: For 0.9-mm-diameter blades)
(Red: For 1.5-mm-diameter blades)
CAUTION
1.5-mm-diameter cutter pen
Plunger-cap
cross-section
Plunger cap
1.5-mm-dia. blades
Blade-length
adjustment knob (red)
Plunger
Spring
Plunger cap
Plunger-cap
cross-section
0.9-mm-dia. blades
0.9-mm-diameter cutter pen
Blade-length
adjustment knob (blue)
Plunger
