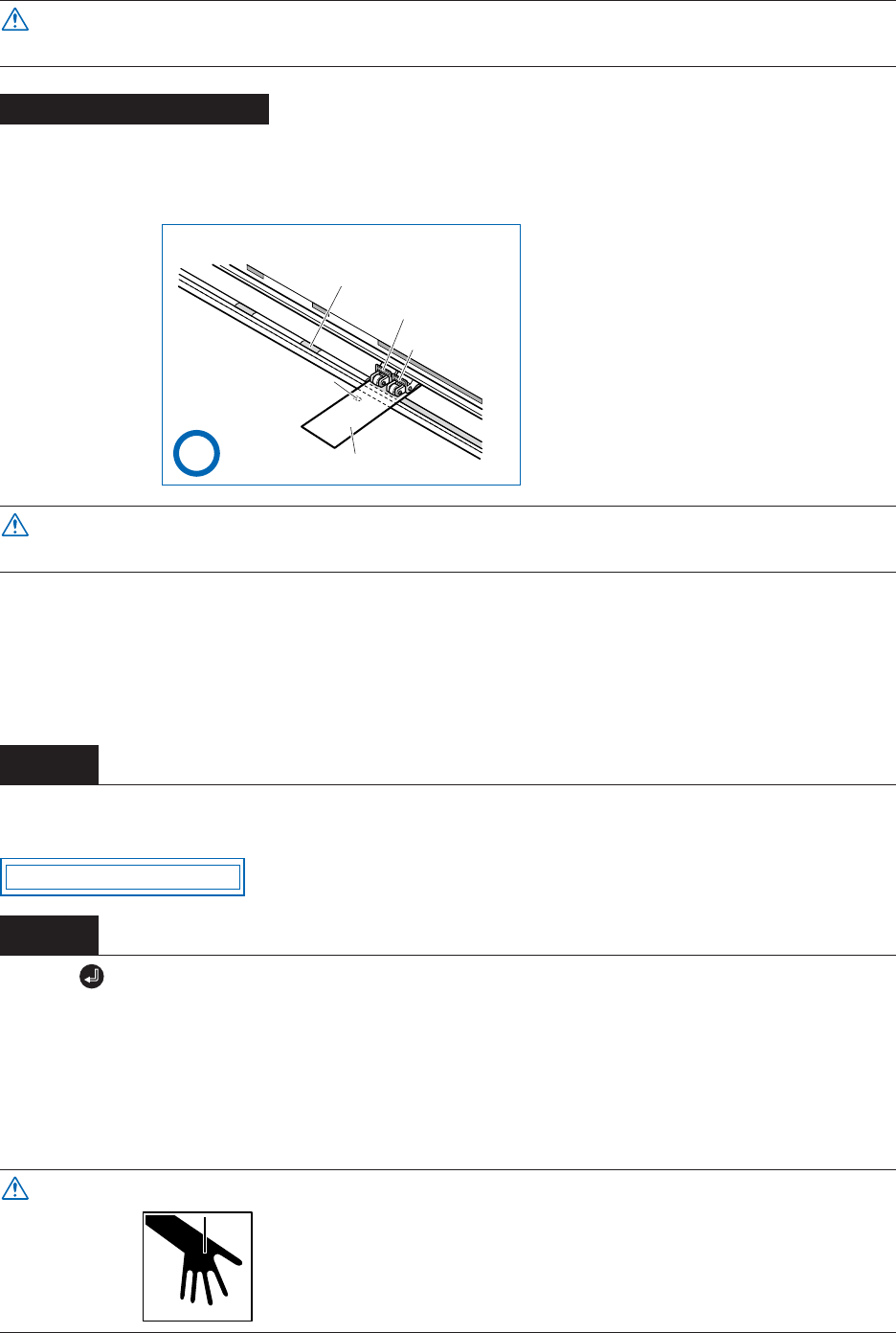

Position all of the rollers over the right-hand wide grit roller. Position the medium with the left-hand edge
aligned with the left-hand edge of the grit roller, and position the push rollers over both edges. The mini-
mum width of the medium that can be set is 50 mm.
2.4 Upon detection of no medium during roll media cutting
If the media sensor detects no medium while the roll media is being cut, cutting stops automatically. Check
the remaining medium length and select whether to continue cutting or quit.
If the media sensor detects no medium while the roll media is being cut, cutting stops and the display
appears as shown below.
Press the (ENTER) key to continue cutting/plotting and to disable any subsequent “Paper End” detection.
To enable subsequent “Paper End” detection, lower the media set lever and perform a feed operation.
2.5 Adjusting and Mounting the Cutter Pen
Individual cutter blades have a variety of features. Select the optimal cutter blade to suit the medium to be
cut.
• Push roller (1) must be positioned over the right-hand wide grit roller.
• The medium must always be positioned over the media sensor.
For Minimum-Size Media
• The medium must be at least 125 mm in length.
• The medium must always be positioned over the media sensor.
Step
1
Step
2
To avoid cutting your fingers, always handle the cutter blade with caution.
CAUTION
Medium
Push roller (2)
Grit roller
Media sensor
Push roller (1)
OK
CAUTION
N O M E D I A
CAUTION
