4.27 Setting the LENGTH UNIT

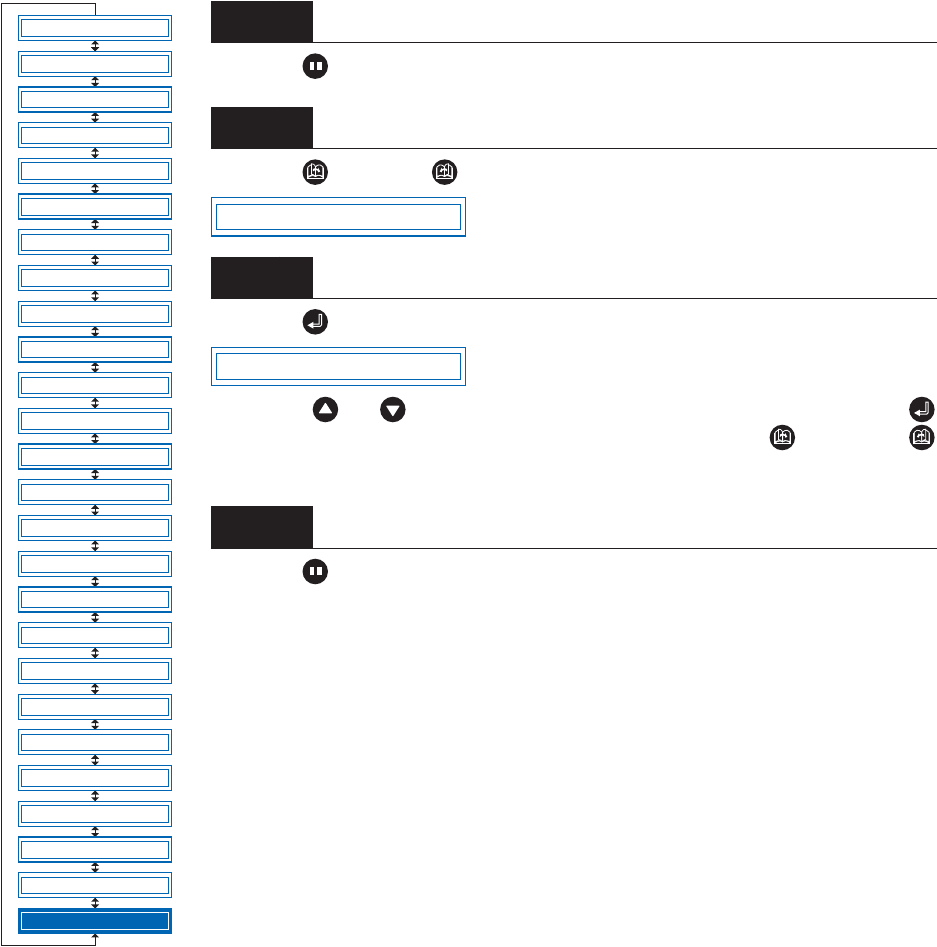

This function specifies the units for coordinates displayed in millimeters or inches.
Press the (PAUSE) key to switch to PAUSE mode.
Press the (NEXT) or (PREV.) key until the following menu is displayed.
Press the (ENTER) key to display the length-unit menu.
Press the or key to select “mm” or “inch, and then press the
(ENTER) key to confirm. To cancel the selection, press the (NEXT) or
(PREV.) key.
Press the (PAUSE) key to cancel PAUSE mode.
