User Manual Replacing Wheel Components 6-5
Lithos
• Diameter/image area: 0.996”/0.860” ± 0.005” (25 mm/22 mm ±
0.13 mm)
• Maximum thickness (rotating litho only): 0.105” ± 0.005” (2.7
mm ± 0.13 mm)
• Thickness (static litho only): 0.069” ± 0.010” (1.8 mm ± 0.25
mm)
Rotating effects
• Diameter/image area: 1.43”/1.04” ± 0.010” (36 mm/26 mm ±
0.25 mm)
• Maximum thickness: 0.175” ± 0.010” (4.4 mm ± 0.25 mm)
Reference Drawing

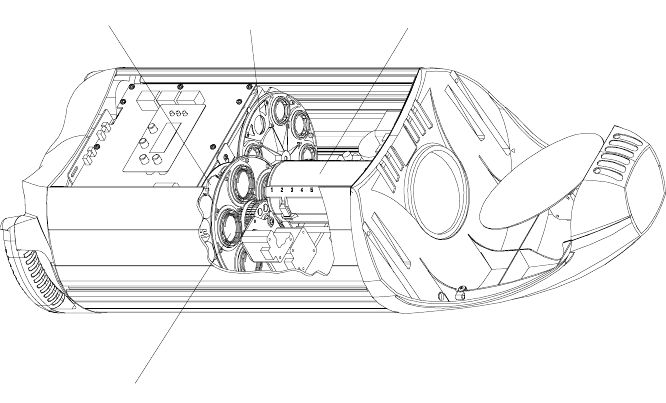

Figure 6-3 shows the location of each wheel in the Technobeam fixture.
Figure 6-3. Location of the wheels in Technobeam.
Replacing Dichroics in the Color Wheel
This section shows how to change individual dichroic filters in the
color wheel. You can replace dichroics if they are damaged or broken,
to change the order in their respective wheels, to clean them, or to add
new ones. (See the section titled “Optional Accessories” on page 1-5 for
ordering information.)
1. Manually turn the wheel so the dichroic you wish to replace is easy to
access.
Lens tube
Rotating effects wheel
Rotating litho wheel
Color wheel
