User Manual Technobeam Laser Aiming Device™ 6-19
Technobeam Laser Aiming
Device™
You might need to realign the laser periodically in order to maintain its
optimal position—no more than 2” (5 cm) directly above the center
point of the light beam. If you align the laser in this way, the path of
the laser is parallel to the path of the light and will stay 2” (5 cm) above
the center point of the beam at any throw distance or mirror position.
You align the laser using the three mounting/alignment screws shown
in Figure 6-27 on page 6-25.
However, the decision of whether or not to align the laser is entirely up
to you. If the laser strays from its optimal position, but it gives you
enough accuracy for your needs, you do not
have to
align it.

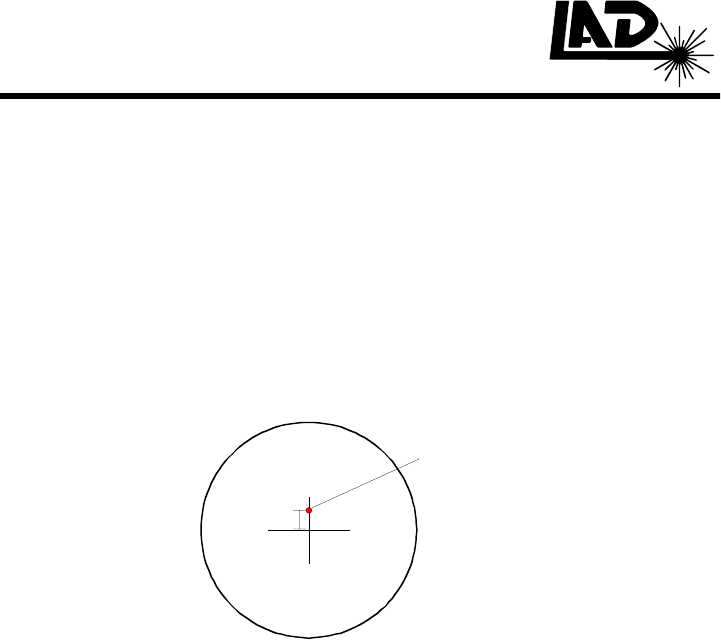

Figure 6-23 shows the ideal position of the laser from the center of a
perfectly round light beam:
Figure 6-23. The ideal position of the laser is no more than 2” (5 cm) directly
above the center of a perfectly round light beam.
Safety Precautions
In addition to observing all of the cautions in the section titled
“Precautions” on page 6-2, you must observe the following cautions
whenever using or servicing the Laser Aiming Device (LAD):
1. CAUTION: Use of controls or adjustments or performance of
procedures other than those specified herein may result in hazardous
radiation exposure.
2. Using the Laser Aiming Device with any fixture other than Technobeam
may result in damage to both the laser and the fixture as well as
exposure to laser radiation.
3. Precautions should be taken to ensure that the laser beam is not
unintentionally directed at mirror-like (specular) surfaces (most
importantly, at flat mirror-like surfaces).
TM
Ideal laser spot
2" (5 cm) max
