User Manual Replacing the Lamp 6-13
4. If you are replacing a lamp, grasp the lamp’s ceramic base and pull the
old lamp straight up and out of the assembly when the assembly is free
of the fixture, as shown in Figure 6-15:

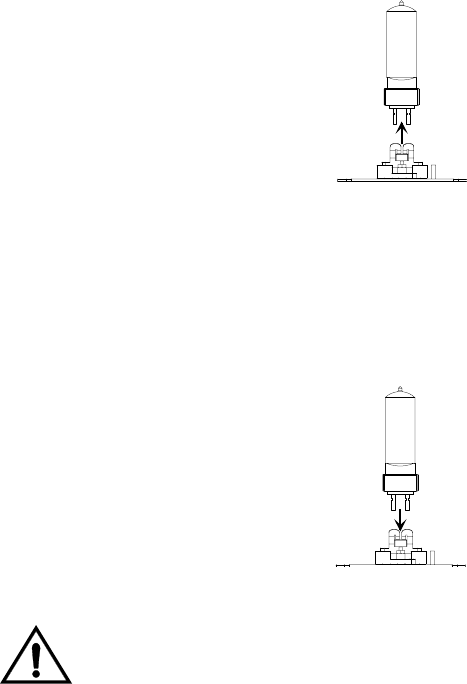

Figure 6-15. Pull straight up on the lamp, grasping its ceramic base, to
remove it from the assembly.
5. Take the new or replacement lamp out of its container. Break the seal
on the inner plastic container and remove the lamp.
6. Hold onto the ceramic lamp base and gently press the two lamp base
pins into the brass lamp socket as shown in Figure 6-16.
Do not force
the lamp into the socket; doing so could break the lamp.
Figure 6-16. Hold the lamp by its ceramic base and gently press the two
base pins into the socket.
Caution Avoid touching any part of your skin to the
lamp’s quartz envelope. Oil and residue
from your fingers can create a “hot spot” on
the lamp, causing premature lamp aging.
7. Before you insert the lamp assembly back into the fixture, clean the
lamp with the alcohol wipe shipped with the lamp. Otherwise,
fingerprints and other contaminates can shorten lamp life.
8. Carefully guide the lamp assembly straight back into the fixture. Make
sure the lamp plate is oriented correctly, as shown in Figure 6-17;
otherwise, the lamp power wires could wrap around the lamp,
resulting in damage to the fixture and the lamp.
