2-12 Mounting the Fixture Technobeam
®
User Manual
Hanging the Fixture Straight Down
You can mount Technobeam with the mirror head perpendicular to the
ground for projection onto a stage. This orientation also allows you to
economize truss space by hanging fixtures side by side close to each
other.
You must observe all of the precautions listed on the previous pages
regarding clamps and safety cables.
Caution You should adjust the yoke position while
the fixture is resting on a flat surface;
otherwise, the fixture may be damaged if it
slides backward.
1. Use a 1/4” allen wrench to loosen the two yoke allen screws (see Figure
2-10).
2. Use a 1/4” allen wrench to loosen the four handle allen screws (two on
each handle).
3. Slide the yoke to the rear of the fixture.
4. Loosen the T-handles on each side and rotate the yoke toward the rear
of the fixture.

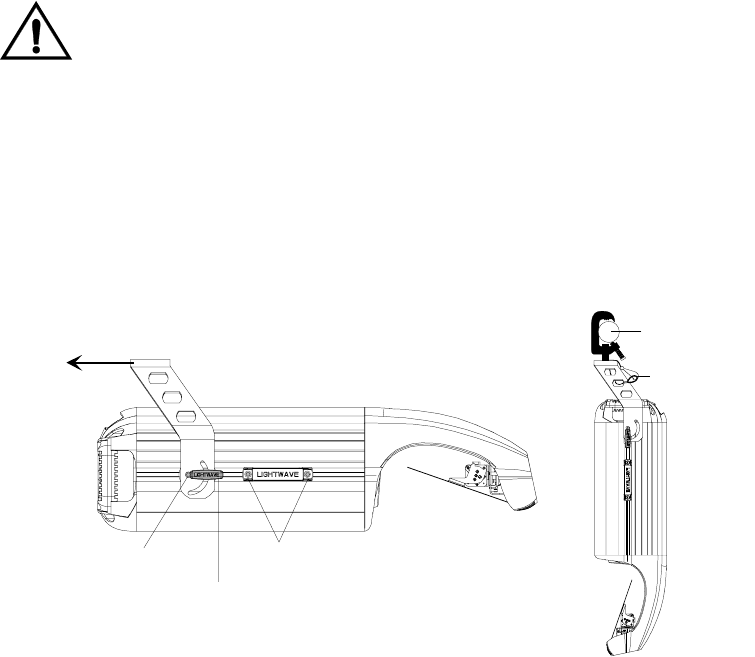

Figure 2-10. You can slide the yoke all the way back to allow the fixture to
hang upside-down.
5. Tighten the allen screws and T-handles on both sides of the fixture,
then secure the fixture to the truss using a C-clamp with a locking
washer and safety cable as shown in Figure 2-10. When the fixture is
mounted like you want it, securely tighten the fixture’s T-handles.
Yoke allen screw
T-handle
Handle allen screws
Truss
Safety cable
