Warning when Installing Spray ECU Controller
1.0
FOR
ALL
INSTALLATIONS
AND
SERVICING
OF
SPRAY
ECU'S
Damage will occur if any external power is applied to the Section Drive Outputs on the
Sprayer ECU. Follow this procedure to ensure that damage is avoided.
Disconnect both the ZYNX Console and Spray ECU controller from the battery before
charging, jump starting or welding on the vehicle and/or sprayer.
TTeessttiinngg
PPrroocceedduurree::
Commence test by disconnecting the existing tractor harness from the existing controller.
AA.. IInnssttaallllaattiioonnss
wwiitthh
nnoo
eexxiissttiinngg
sswwiittcchhbbooxx
((SSwwiittcchheess
oonn
EExxiissttiinngg
CCoonnttrroolllleerr))::
With ignition key on, check each Section Drive Output pin on the existing tractor harness for
voltage (refer manufacturer of existing tractor harness for pin detail). Locate where voltage
is supplied to determine if it can be removed without limiting existing functionality.
If it is not possible to remove this voltage then you must install a Section Drive Output
Protection Adaptor. (A2812 for 37-pin on Connector 1 and A2813 for 16-pin on Connector 3)
If no voltage is found disconnect the vehicle's battery and continue with installation.
BB.. I
Innssttaallllaattiioonnss
wwiitthh
eexxiissttiinngg
sswwiittcchhbbooxx
((IInncclluuddiinngg
JJooyyssttiicckk
CCoonnttrrooll))
Determine if it is possible to disconnect the existing switchbox without limiting existing
functionality (e.g. Boom Lift, Lower or Fold). If so, disconnect the switchbox, switch the
ignition key on and check each Section Drive Output pin on the existing tractor harness for
voltage (refer manufacturer of existing tractor harness for pin detail).
If it is not possible to remove this voltage then you must install a Section Drive Output
Protection Adaptor. (A2812 for 37-pin on Connector 1 and A2813 for 16-pin on Connector 3)
If no voltage is found disconnect the vehicle battery and continue with installation.
Disconnect the vehicle battery before proceeding with any installation or servicing of the
Spray ECU, Tractor, Sprayer or Valve Looms.
Page 10
V1.98 21/06/06

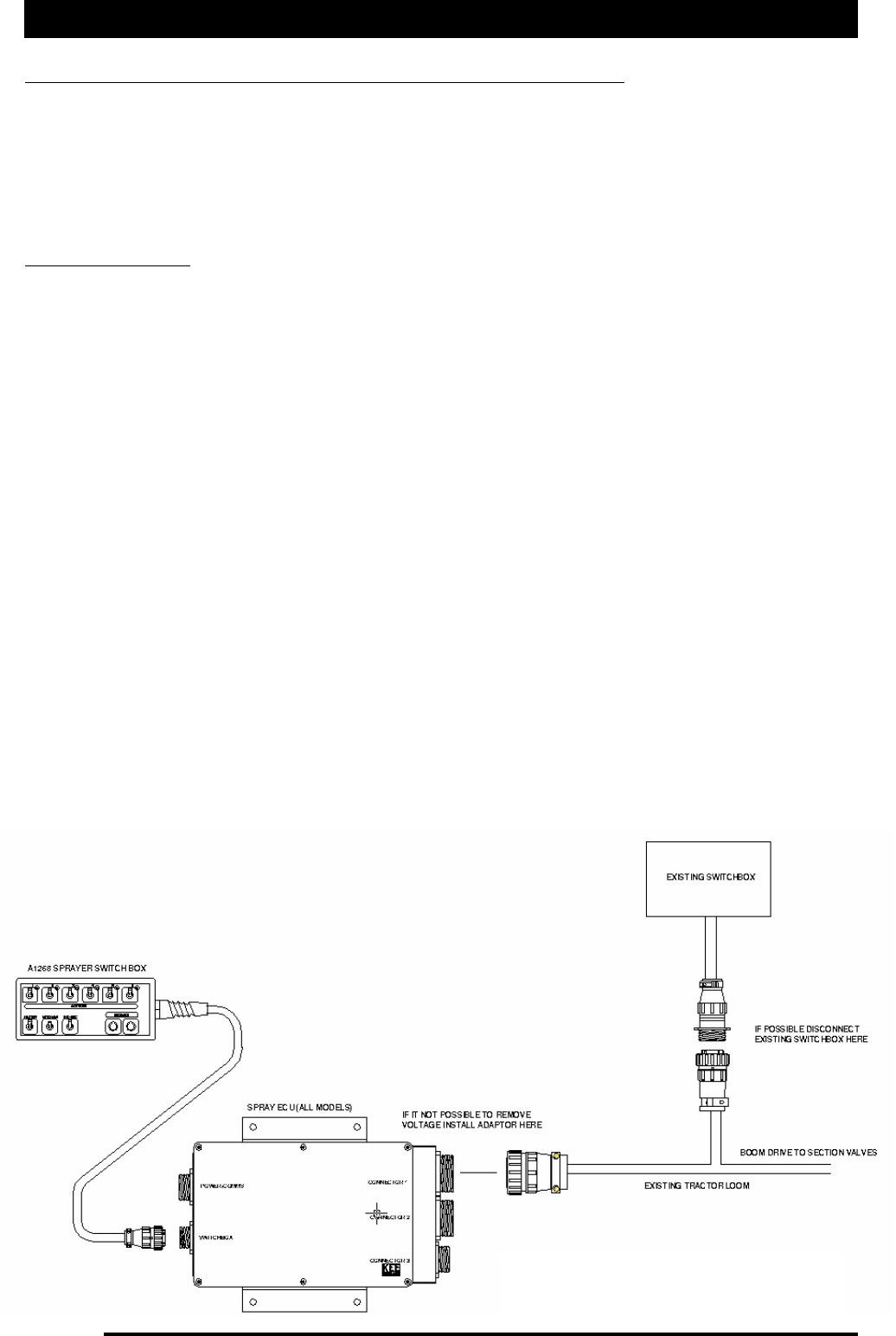

Figure 1: Connecting the
Spray ECU to existing Installations.
