SPRAY ECU 10SR- A2644
Page 132
V1.98 21/06/06
.
21.6 SPRAY ECU 10SR
Part Number: A2644
Firmware Version: BMS 209
Serial Number: 06000-060040: The SPEED connector (Connector 6) have the wrong pin-outs
when connecting to the Raven Speed sensor. Pins 1 and 2 on the SPEED connector need to be
swapped to connect directly with the Raven speed sensor. DO NOT connect unless Pins 1 and
2 have been swapped.
Serial Number: 060041- onwards: The SPEED connector has the right pin-outs to connect
directly to an existing Raven speed sensor.
POWER /COMMS Looms: A2634
LOOMS: The Spray ECU 10SR ‘CONNECTOR 3’ plug connects directly to existing Raven 440
Sprayer Looms.
The Spray ECU 10SR ‘CONNECTOR 1’ plugs connects directly to existing Raven 4400
Sprayer Looms.
The Spray ECU 10SR ‘CONNECTOR 2’ is used for connecting remote boom section
switches
ZZYYNNXX
SSpprraayyeerr
CCoonnttrroolllleerr
SSooffttwwaarree
1. OPTIONS/ECU/Controller: Select ‘Spray ECU’
2. OPTIONS/ECU/ECU Model: Select ‘ECU 10S, ECU 10SR’

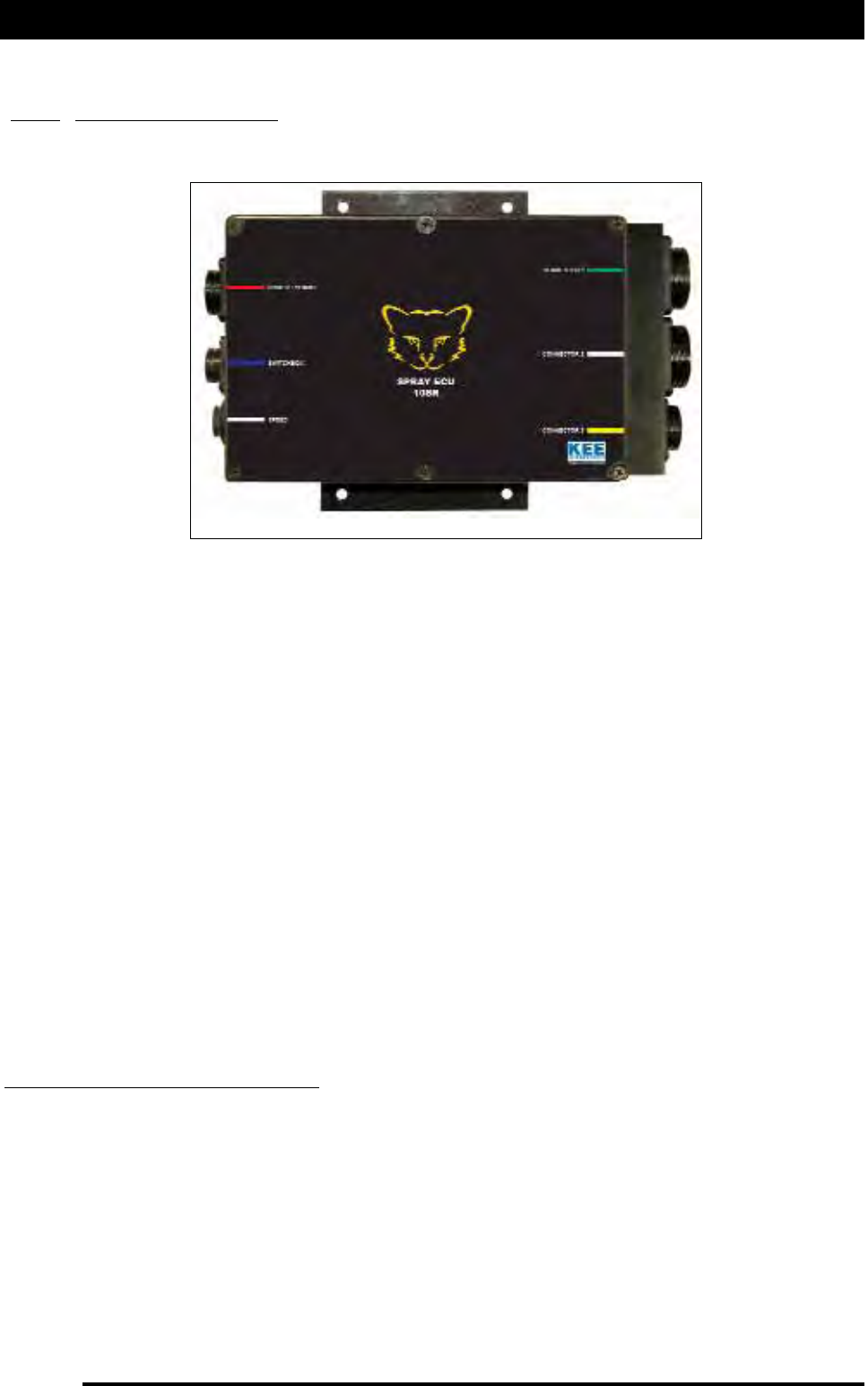

FFiigguurree
110088::
SSpprraayy
EECCUU
1100SSRR
