Topcom X20 Paint Sprayer User Manual



Connecting the Spray ECU to the Battery
Step
5:
Connecting
the
Spray
ECU
to
the
Battery
1. DO NOT attach the wires to the battery terminals until the installation of the Tractor
Harness, Sprayer Harness and Valve Harness has been completed.
2. Connect the Power/Comms Harness directly to 12 VDC battery terminals. Refer to
Figure 14.
FFoorr
ttrraaccttoorrss
tthhaatt
uussee
2244
VVoolltt
bbaatttteerriieess
yyoouu
MMUUSSTT
uussee
aa
1122
VVoolltt
//
1155
AAmmpp
((mmiinniimmuumm))
iinnvveerrtteerr..
3. Do not connect the Power/Comms Harness to an alternator or starter motor as this may
cause interference or power fluctuations or surges and may damage your system.
4. Attached the Red wire to the POSITIVE (+) battery terminal. Attach the Black wire to
the NEGATIVE (-) battery terminal, when installation of the sprayer is completed.
5. DO NOT connect the Black wire to vehicle chassis unless an Isolation Switch is fitted to
the negative side of the battery.
6. Do not power other equipment from the power cable; other than KEE products.
7. Connection to the battery terminals must be kept clean and tight at all times.
8. The hardware installation of the Sprayer Hardware Kit is now complete.
9. Refer to the ‘Getting Started’ (Section 2.0) and ‘Software Setup’ (Section 3.0) sections
of this manual to complete the software setup for the Sprayer.
Page 30
V1.98 21/06/06

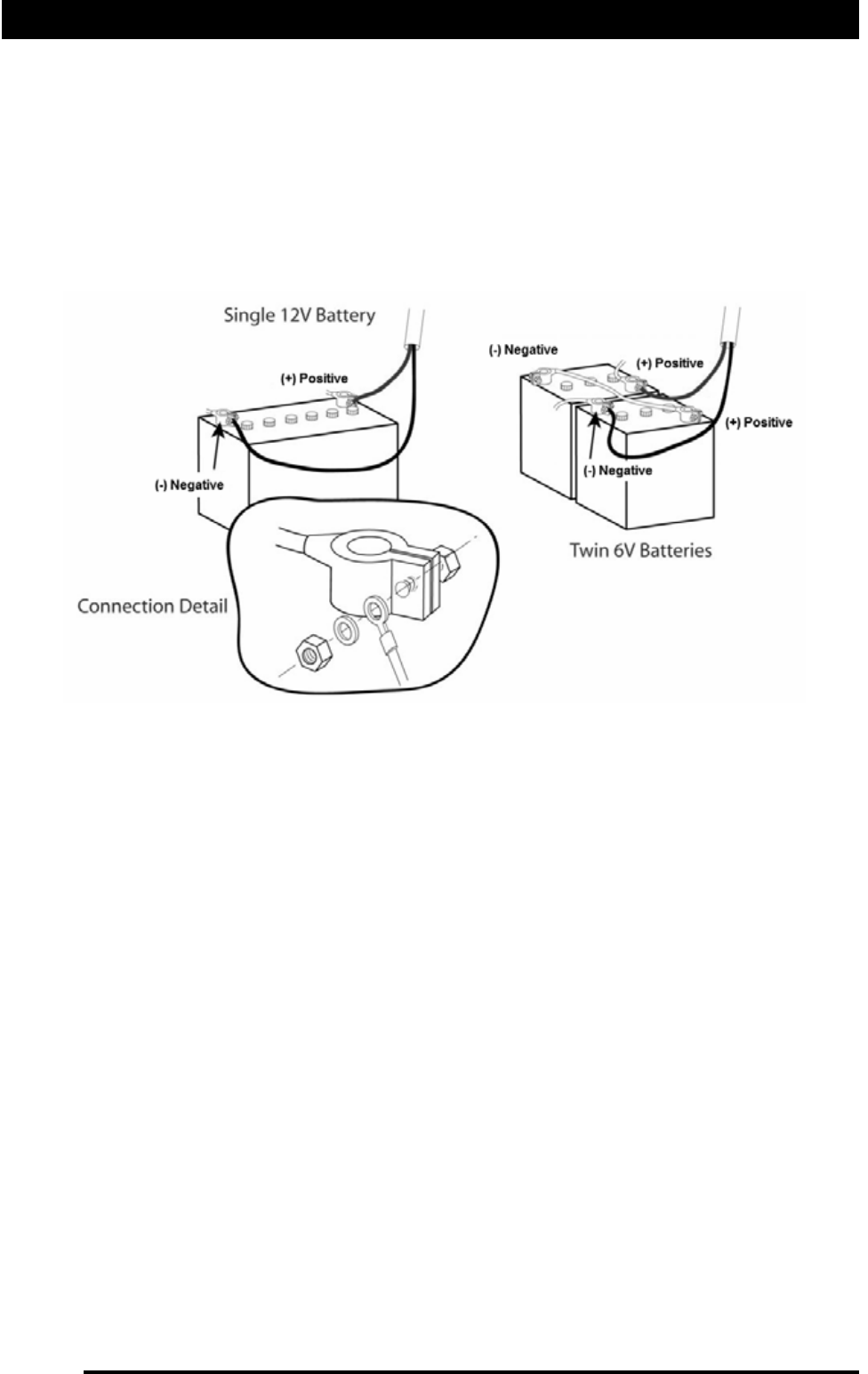

Figure 14: Battery Configuration
