Selecting the Right Controller
2211..11
SSEELLEECCTTIINNGG
TTHHEE
RRIIGGHHTT
““CCOONNTTRROOLLLLEERR””
The next 2 pages will help the operator to select the right ‘Controller’ from the ‘Controller’
window on the ‘OPTIONS/ECU page.
SSpprraayy
IInntteerrffaaccee
The ‘Spray Interface’ controller can be identified by having ‘Interface’ typed on the controller.
There are 3 types of ‘Spray Interface’:
1- The ‘KEE Sprayrate Interface’ which be identified by having a ‘15 pin white molex
plug’ wiring tail connection. The KEE Sprayrate Interface is shown above.
2- The ‘ZYNX 5500 INTERFACE’ can be identified by the 39 pin connector on the
controller and battery leads.
3- The ‘ZYNX 2500 INTERFACE’ can be identified by the 2 green plugs one for flow and
one speed. The controller has a 26 pin connector.
If you have any one of the above sprayrate controllers then select ‘Spray Interface’ in the
‘Controller’ window on the OPTIONS/ECU page.
Page 107
V1.98 21/06/06

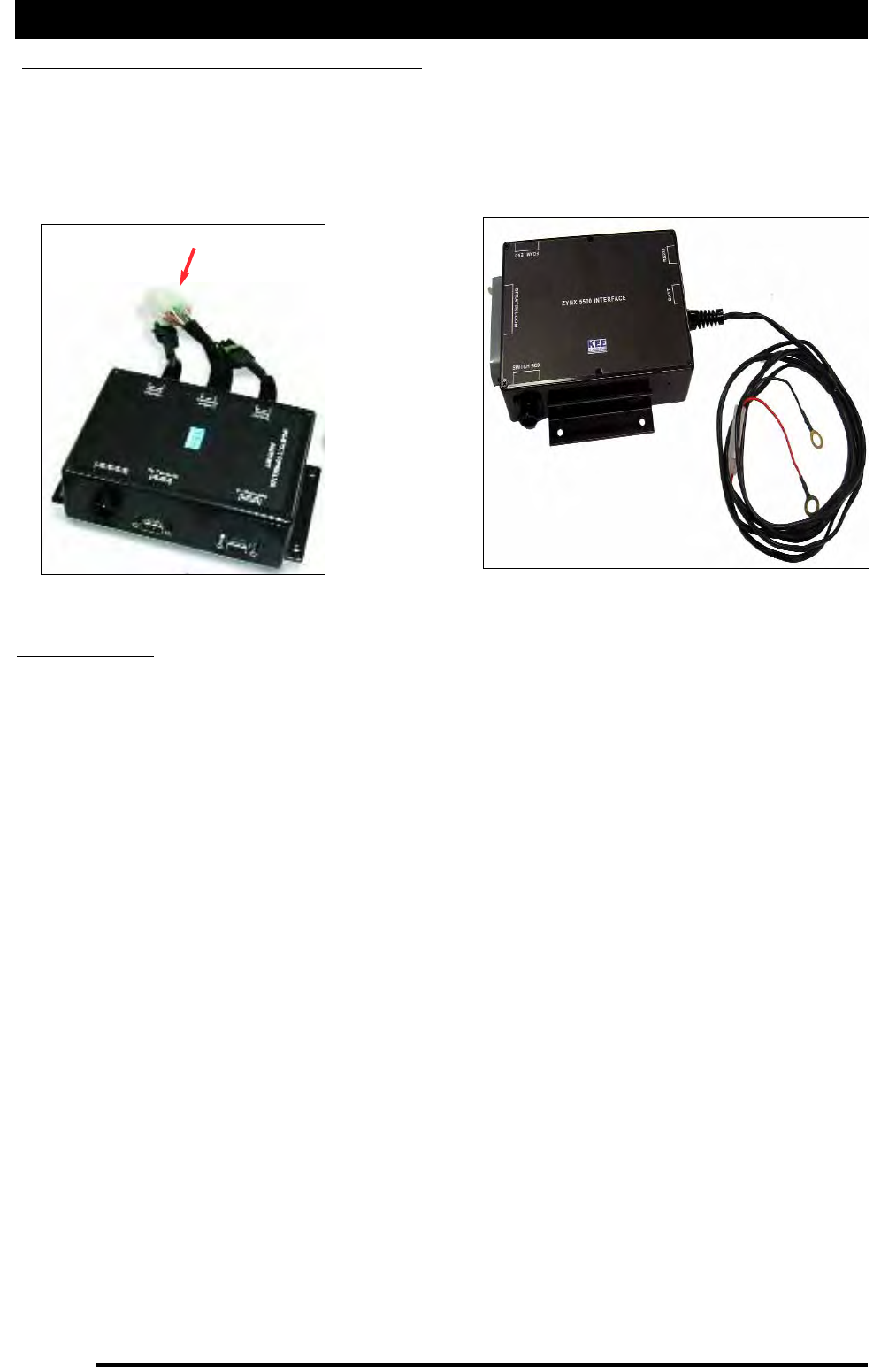

Figure 73: KEE Sprayrate Interface
Figure 74: ZYNX 2500 and 5500 Interface
15 Pin White Molex Plug
