Spray ECU A1999 and A2006
Page 111
V1.98 21/06/06
21.3 SPRAY ECU (With Tails)
Part Number: A1999 (Hagie) and A2006 (Raven 330/440/450/ 460)
Firmware Version: BMS 207
AA11999999
((HHAAGGIIEE
SS//PP
SSPPRRAAYYEERR))
COMMS Looms: The 9 pin serial DB9 cable connects to a COM Port on the back of the ZYNX
Console.
Connector 2: The ‘Connector 2’ plug is a 37 pin plug and his connects into the ‘Sprayer
Harness’ on the Hagie S/P.
Connector 3: The ‘Connector 3’ plug is a 9 pin plug and this plug senses the inputs of the
Section switches on the Joy Stick of the Hagie S/P. sprayer.
AA22000066
((RRAAVVEENN
333300//444400//445500//446600))
The A2006 Spray ECU looks similar to the above Spray ECU except it only has 2 glands on the
side of Spray ECU (the above diagram shows 3), The A2006 has 2 connectors coming out of
the larger gland (a ‘16’ pin plug and a ‘14’ pin plug); and 2 connectors coming out of the
smaller gland (a Serial Comms DB9 and the 3 pin Raven speed sensor plug)
COMMS Looms: The 9 pin serial DB9 cable connects to a COM Port on the back of the ZYNX
Console.
Connector 2: The ‘Connector 2’ plug is a 16 pin plug and his connects into the ‘Sprayer
Harness’ on the Raven harness.
Connector 3: The ‘Connector 3’ plug is a 14 pin plug and this plug connects to a pressure input
on the Raven harness.
Connector 4: The Connector 4’ plug is a 3 pin Conxall Raven Speed Sensor plug and connects
to the Raven Speed Sensor harness .
ZZYYNNXX
SSpprraayyeerr
CCoonnttrroolllle
err
SSooffttwwaarree
(A1999 and A2006)
1. OPTIONS/Controller: Select ‘Spray ECU’
2. OPTIONS/ECU Model: Select ‘ECU, ECU3’
COMMS Looms
Connector 2
Connector 3

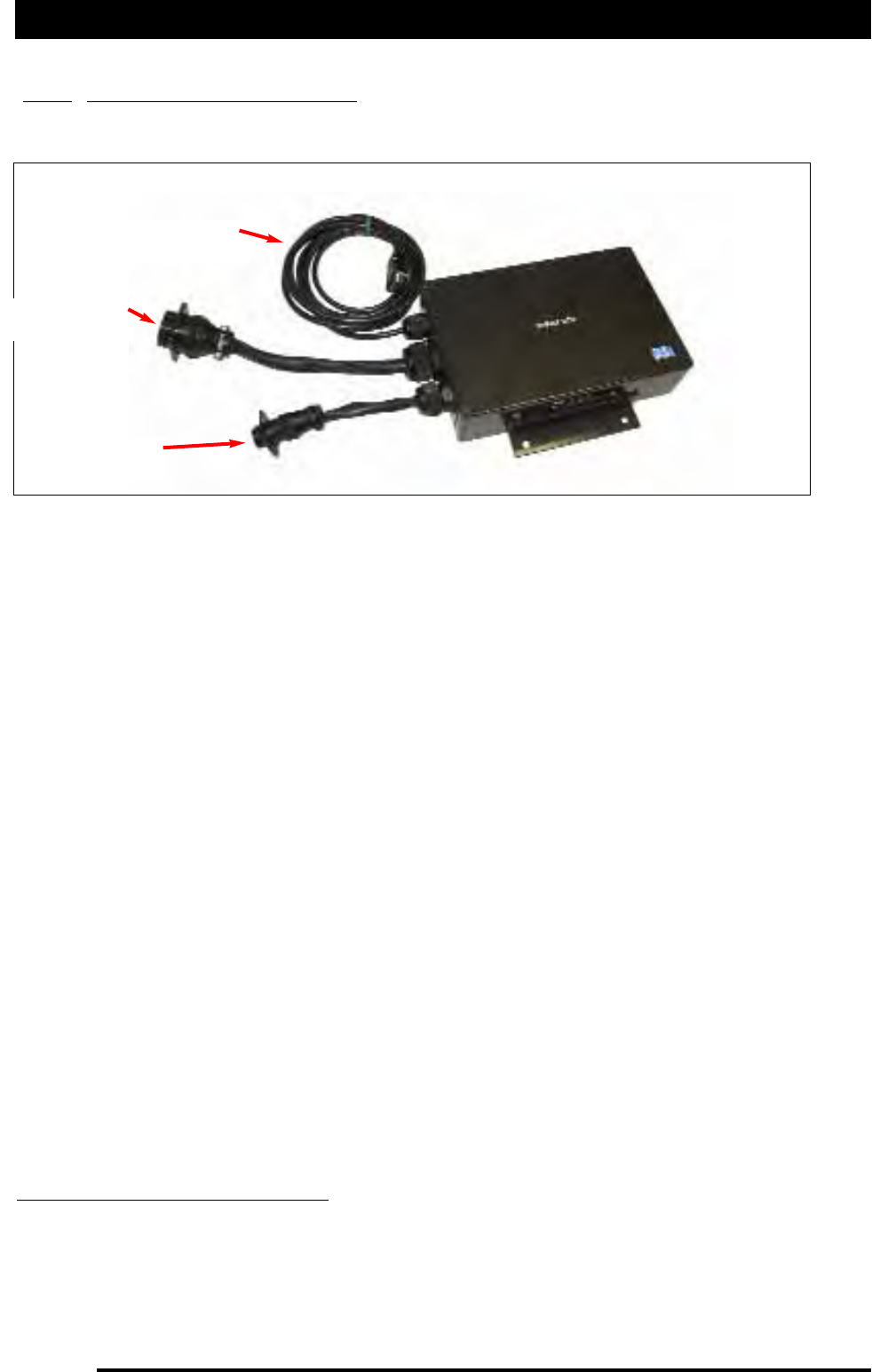

FFiigguurree
7788::
HHaaggiiee
AA11999999
SSpprraayy
EECCUU
