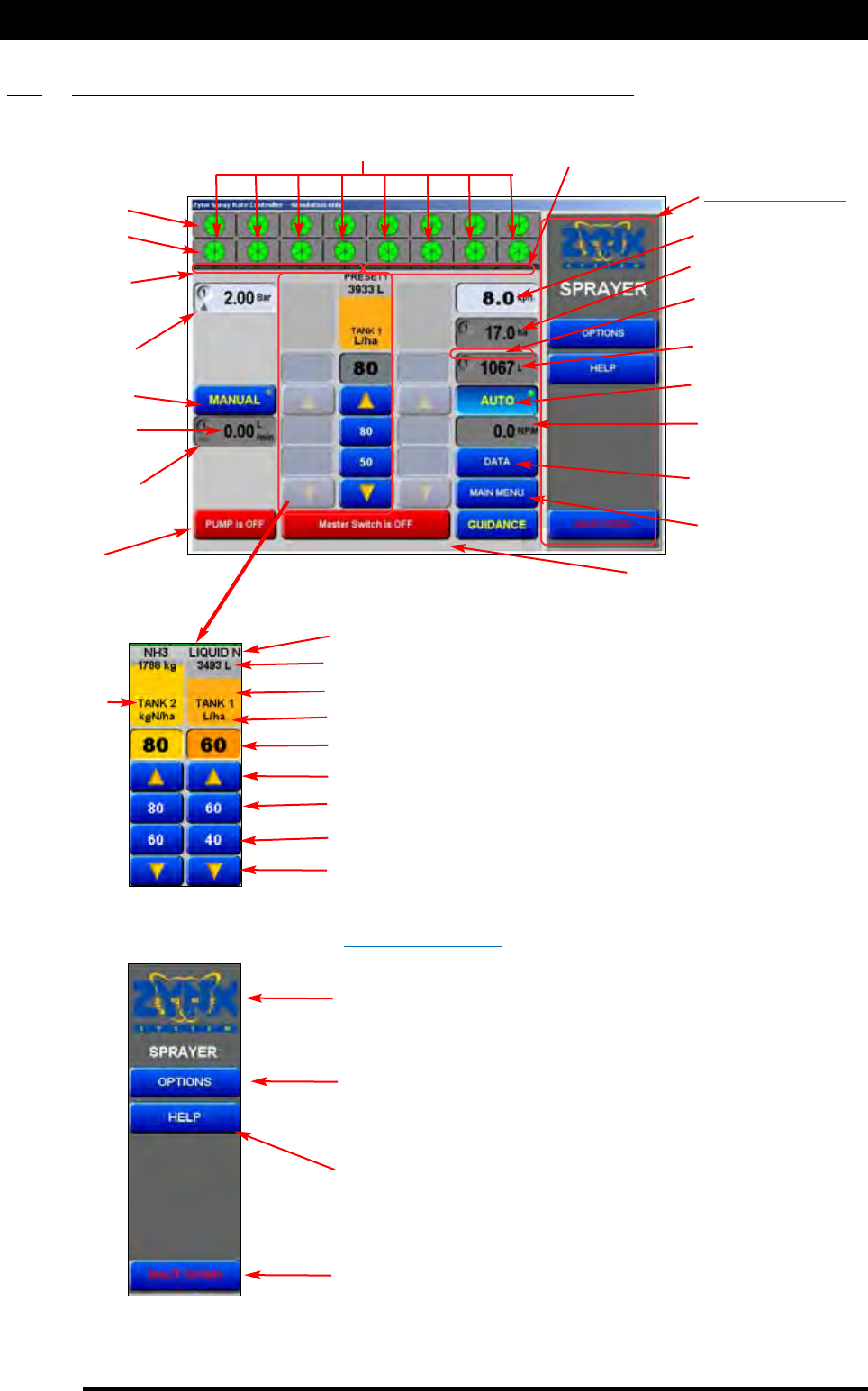

2.4 OVERVIEW OF FUNCTIONS- WORKING SCREEN
Page 35
V1.98 21/06/06
Boom Sections (ON/OFF) - Up to 30 sections.
Sub total area
Ground speed
Sub-total of volume
or weight used
Automatic Control
Activates all data on the
right hand side of the
screen.
Returns to the
Main Menu Screen
Manual Control
Volume Readout
for each Tank
Pressure Readout
Switches
Hydraulic Pump
ON/OFF
Displays Product being applied.
Displays Volume left in Tank 1.
Displays Volume left in Tank 1 graphically.
Displays ‘Application Rate’ Units.
Current ‘Application Rate’.
Increase the Rate on the go.
Preset Rate 1.
Preset Rate 2.
Decrease the Rate on the go.
Displays Tank
Number
When ‘selected' a window appears displaying:
1- Software Version and date.
2- A ‘Button’ to Register the software.
3- A ‘Button’ to Enable or Disable the ‘Lockout’ function.
Select ‘OPTIONS’ button to a access the ‘OPTIONS’
window. The ‘OPTIONS’ window is where the sprayer
settings can be entered.
Select the ‘SHUTDOWN’ button; returns the operator
to the ‘Windows Desktop’ or ‘Shuts Down’ the ZYNX
Console.
Displays the ‘On Screen’ help.
Front boom
Back boom
Switches all boom sections ON or OFF
Spraying Indicators for Back Line
Spraying Indicators
for Front Line
Tank Indicator (displayed if
more than 1 tank is selected)
Main Menu Screen
Pump Speed Readout
‘Min. Flow’ or
Nozzle Min Flow
indicator
MAIN MENU SCREEN
Figure 19: Sprayer Working screen
Figure 20: Sprayer Working screen
Figure 21: Main Menu screen
